2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

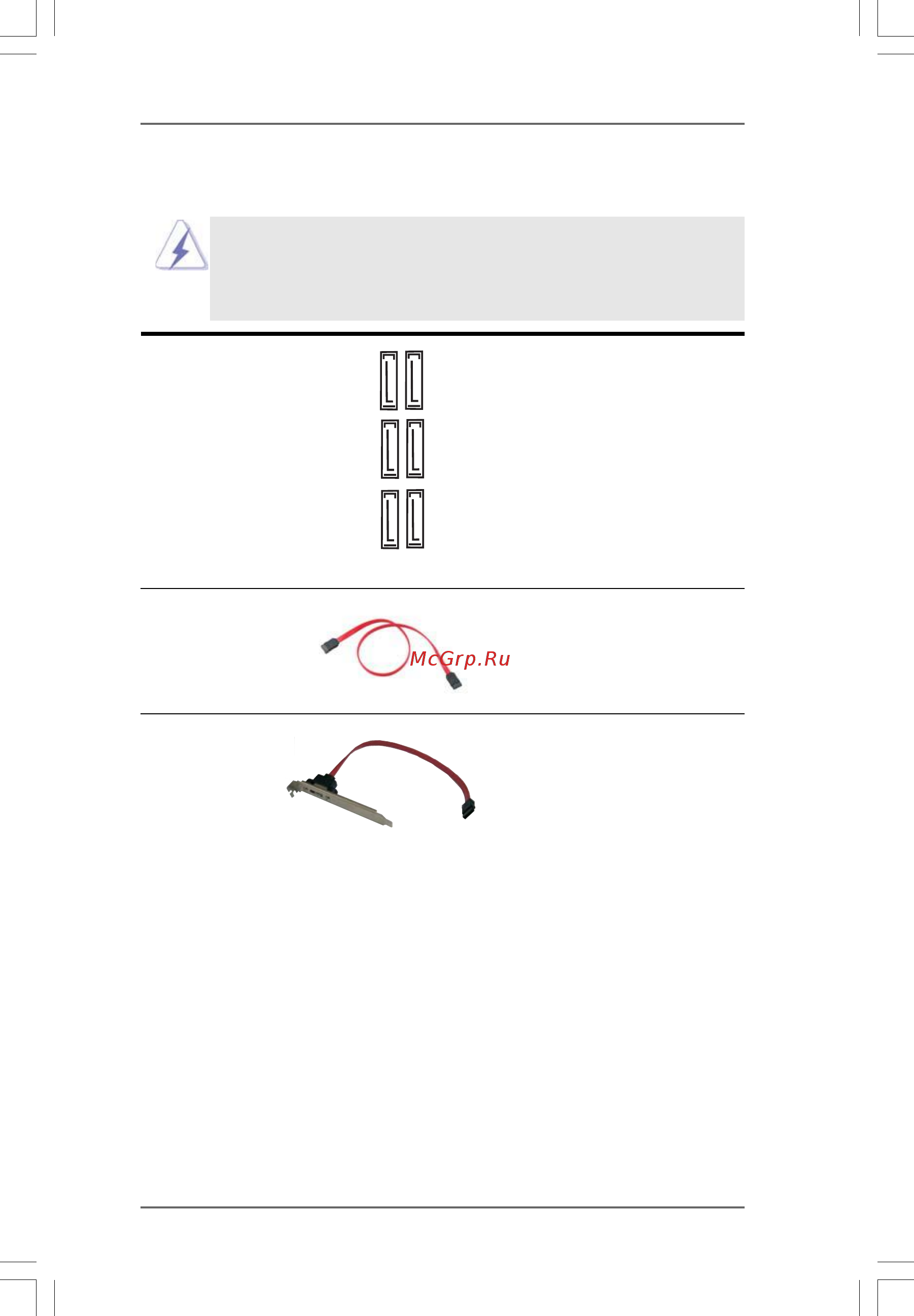

Serial ATA3 Connectors These six Serial ATA3
(SATA3_1_2: see p.11, No. 17) (SATA3) connectors support
(SATA3_3_4: see p.11, No. 16) SATA data cables for internal
(SATA3_5_6: see p.11, No. 15) storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate. If
you install the HDD on the
eSATA port on the rear I/O,
the internal SATA3_6 will not
function.
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA3
(Optional) hard disk or the SATA3
connector on this motherboard.
SATA3_1_2 SATA3_3_4 SATA3_5_6
eSATA3 Bracket eSATA3 bracket can be
(Optional) connected to the onboard SATA
connector to support the
external SATA3 device.
