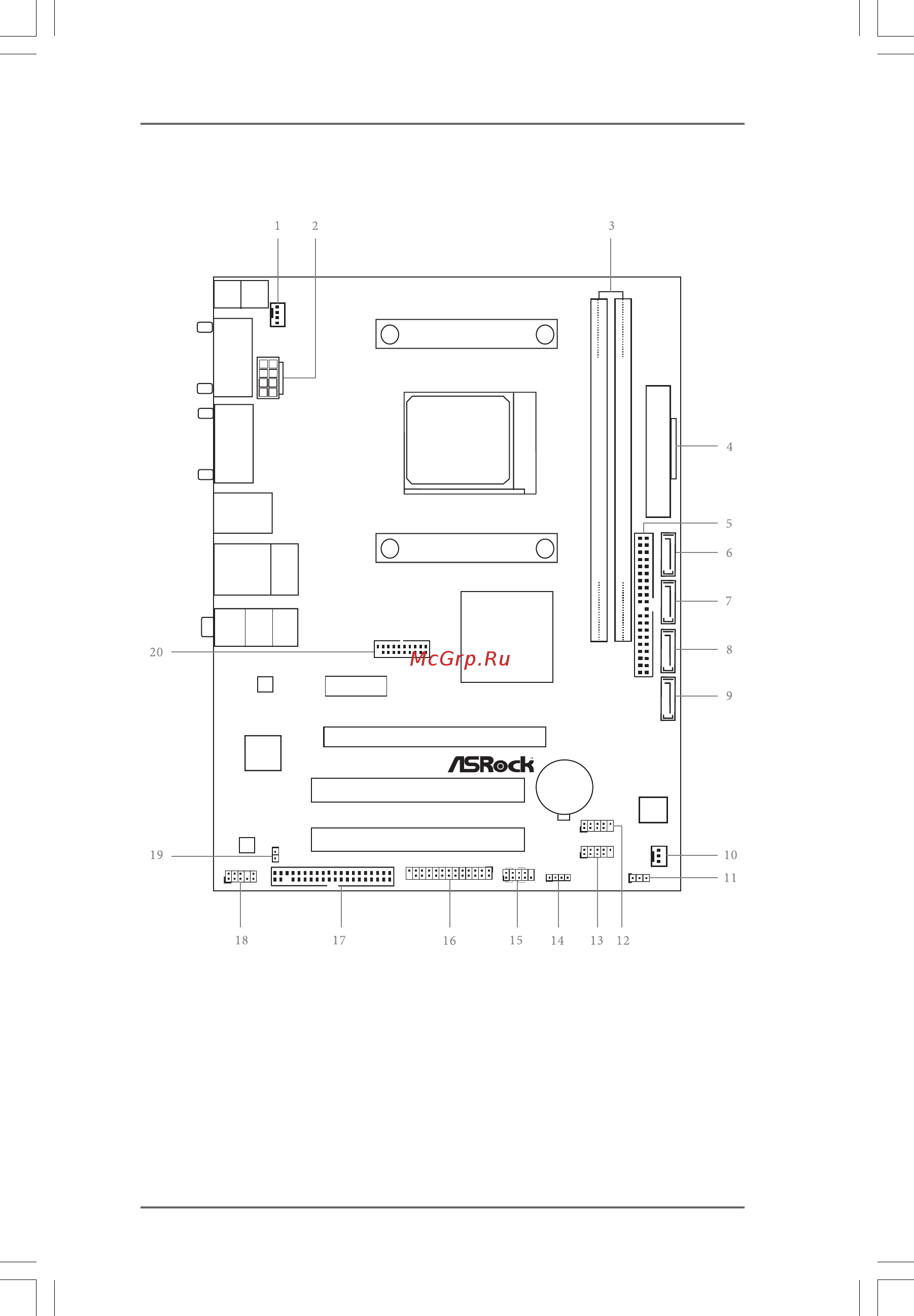

1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout
1 CPU Fan Connector (CPU_FAN1) 11 Clear CMOS Jumper (CLRCMOS1)
2 ATX 12V Power Connector (ATX12V1) 12 USB 2.0 Header (USB3_4)
3 2 x 240-pin DDR3 DIMM Slots 13 USB 2.0 Header (USB5_6)
(Dual Channel: DDR3_A1, DDR3_B1) 14 Chassis Speaker Header (SPEAKER1)
4 ATX Power Connector (ATXPWR1) 15 System Panel Header (PANEL1)
5 Primary IDE Connector (IDE1) 16 Print Port Header (LPT1)
6 SATA2 Connector (SATAII_1 (PORT 0.0)) 17 Floppy Connector (FLOPPY1)
7 SATA2 Connector (SATAII_2 (PORT 0.1)) 18 Front Panel Audio Header (HD_AUDIO1)
8 SATA2 Connector (SATAII_3 (PORT 1.0)) 19 Chassis Intrusion Header (CI1)
9 SATA2 Connector (SATAII_4 (PORT 1.1)) 20 USB 3.0 Header (USB3_1_2)
10 Chassis Fan Connector (CHA_FAN1)
NVIDIA
GeForce
7025 /
nForce
630a
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
IDE1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANEL 1
11
ATXPWR1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
CPU_FAN1
1
USB3_4
HD_AUDIO1
1
FLOPPY1
LAN
PHY
AUDIO
CODEC
Super
I/O
PCIE1
PCIE2
PCI1
PCI2
CHA_FAN1
RoHS
USB 3.0
T: USB 3
B: USB4
Top:
RJ-45
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
VGA1
USB 2.0
T: USB 1
B: USB2
COM1
1
LPT1
1
CI1
1
N68-GS4/USB3 FX
Front USB 3.0
SOCKET AM3
ATX12V1
USB3_1_2
SATAII_4 SATAII_2 SATAII_1
(PORT 1.1) (PORT 0.1) (PORT 0.0)
SATAII_3
(PORT 1.0)
1
US5_6
