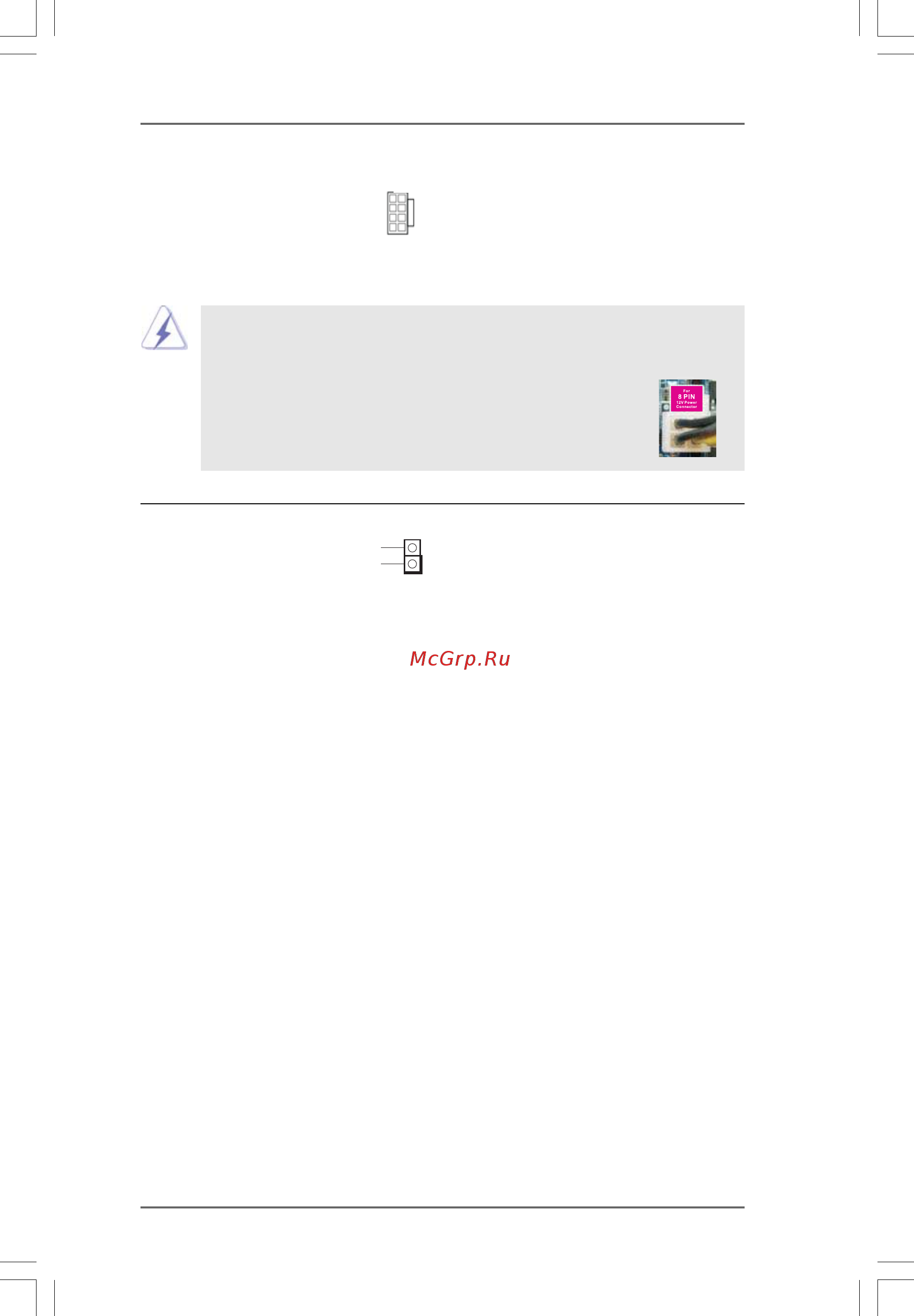

ATX 12V Power Connector Please note that it is necessary

(8-pin ATX12V1) to connect a power supply with

(see p.11 No. 2) ATX 12V plug to this connector.

Failing to do so will cause power

up failure.

Chassis Intrusion Header This motherboard supports CASE

(2-pin CI1) OPEN detection feature that

(see p.11 No. 19) detects if the chassis cover has

been removed. This feature

requires a chassis with chassis

intrusion detection design.

Signal

GND

4 8

1 6

4-Pin ATX 12V Power Supply Installation

Though this motherboard provides 8-pin ATX 12V power connector, it can still

work if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin

ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

4 8

1 6
