ASRock N68C-GS4 FX / N68C-S4 FX Motherboard

EnglishEnglish

English

1.4 Jumpers Setup1.4 Jumpers Setup

1.4 Jumpers Setup

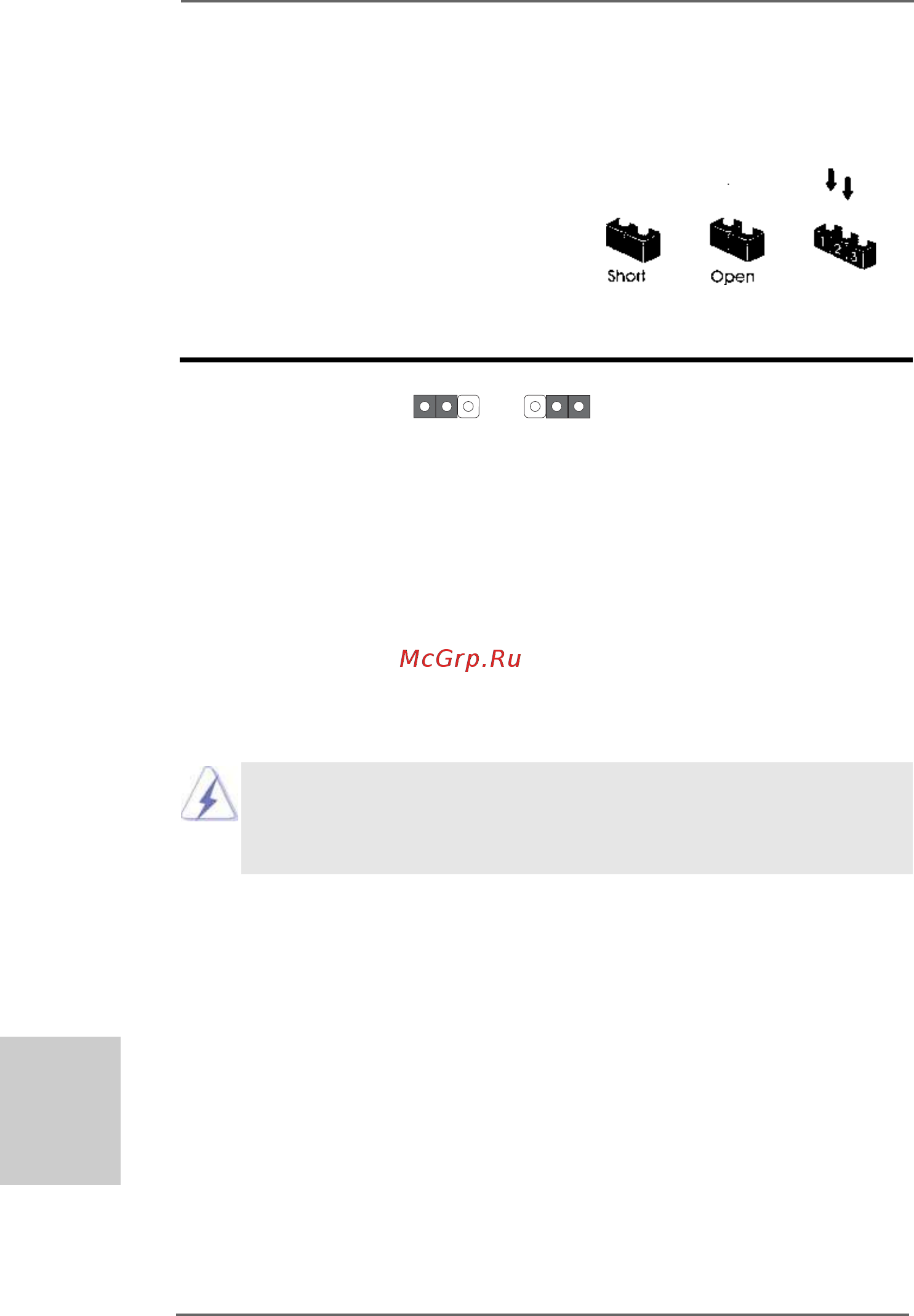

The illustration shows how jumpers are setup.

When the jumper cap is placed on pins, the

jumper is “Short”. If no jumper cap is placed on

pins, the jumper is “Open”. The illustration

shows a 3-pin jumper whose pin1 and

pin2 are “Short” when jumper cap is placed on

these 2 pins.

Jumper Setting

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 17)

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord from the power supply.

After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1

for 5 seconds. However, please do not clear the CMOS right

after you update the BIOS. If you need to clear the CMOS when you just finish

updating the BIOS, you must boot up the system first, and then shut it down

before you do the clear-CMOS action.

Clear CMOS

2_3

1_2

Default

If you clear the CMOS, the case open may be detected. Please adjust the

BIOS option “Clear Status” to clear the record of previous chassis intrusion

status.
