ASRock N68C-GS4 FX / N68C-S4 FX Motherboard

EnglishEnglish

English

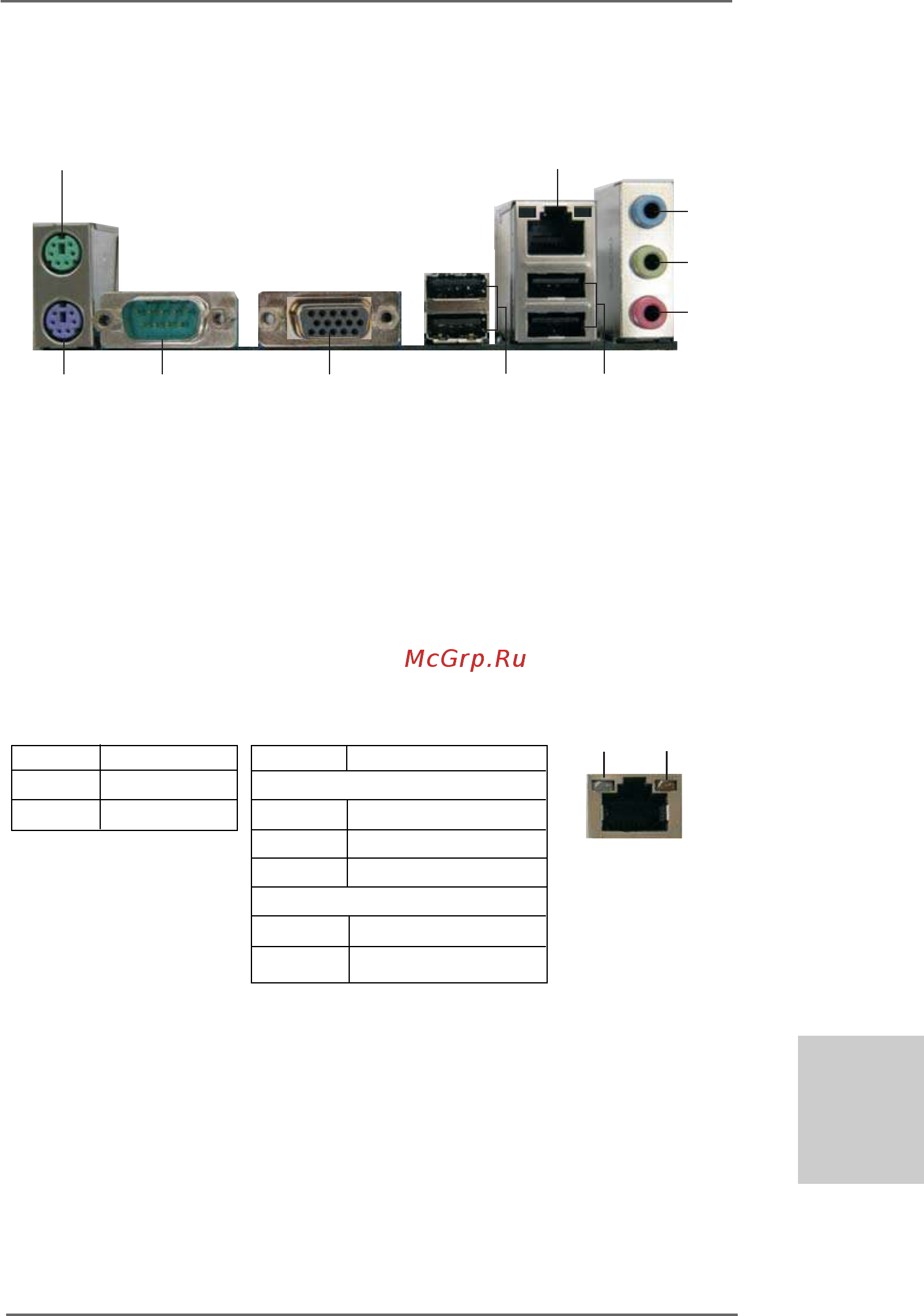

I/O PI/O P

I/O P

anelanel

anel

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 D-Sub Port

4 Front Speaker (Lime) 9 COM Port

5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)

910

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity N68C-GS4 FX:

Blinking Data Activity Off 10Mbps connection

Orange 100Mbps connection

Green 1Gbps connection

N68C-S4 FX:

Off 10Mbps connection

Orange 100Mbps connection

LAN Port

ACT/LINK

LED

SPEED

LED
