ASRock N68C-GS4 FX / N68C-S4 FX Motherboard
EnglishEnglish
EnglishEnglish
English
Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout

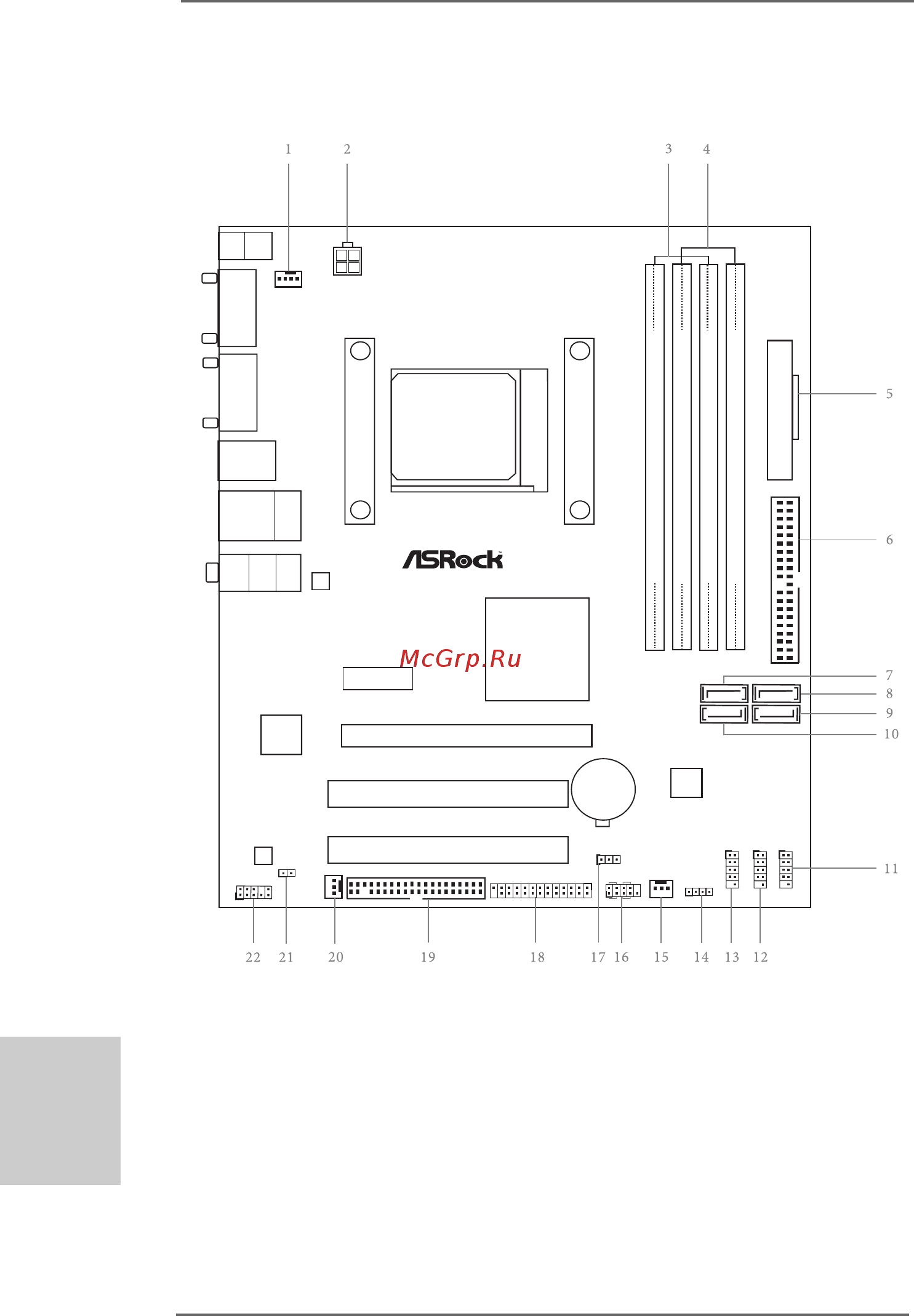

1 CPU Fan Connector (CPU_FAN1) 11 USB 2.0 Header (USB8_9)
2 ATX 12V Power Connector (ATX12V1) 12 USB 2.0 Header (USB6_7)
3 2 x 240-pin DDR2 DIMM Slots 13 USB 2.0 Header (USB4_5)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 14 Chassis Speaker Header (SPEAKER1)
4 2 x 240-pin DDR3 DIMM Slots 15 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDR3_A1, DDR3_B1; Black) 16 System Panel Header (PANEL1)
5 ATX Power Connector (ATXPWR1) 17 Clear CMOS Jumper (CLRCMOS1)
6 Primary IDE Connector (IDE1) 18 Print Port Header (LPT1)
7 SATA2 Connector (SATAII_1 (PORT 0.0)) 19 Floppy Connector (FLOPPY1)
8 SATA2 Connector (SATAII_3 (PORT 1.0)) 20 Power Fan Connector (PWR_FAN1)
9 SATA2 Connector (SATAII_4 (PORT 1.1)) 21 Chassis Intrusion Header (CI1)
10 SATA2 Connector (SATAII_2 (PORT 0.1)) 22 Front Panel Audio Header (HD_AUDIO1)
NVIDIA
GeForce
7025 /
nForce
630a
FSB800
DDRII_1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
IDE1
SATAII_1
SATAII_2 SATAII_4
(PORT 0.0)
(PORT 0.1) (PORT 1.1)
SATAII_3
(PORT 1.0)
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANEL 1
11
ATXPWR1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
CPU_FAN1
ATX12V1
1
USB4_5
SOCKET AM2/AM3/AM3+
FSB800
DDRII_2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
1
USB6_7
1
USB8_9
HD_AUDIO1
1
FLOPPY1
LAN
PHY
AUDIO
CODEC
Super
I/O
PCIE1
PCIE2
PCI1
PCI2
PWR_FAN1
RoHS
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
VGA1
USB 2.0
T: USB2
B: USB3
COM1
1
LPT1
X
Fast RAM
X
Fast LAN
X
Fast USB
1
CI1
1
