ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English

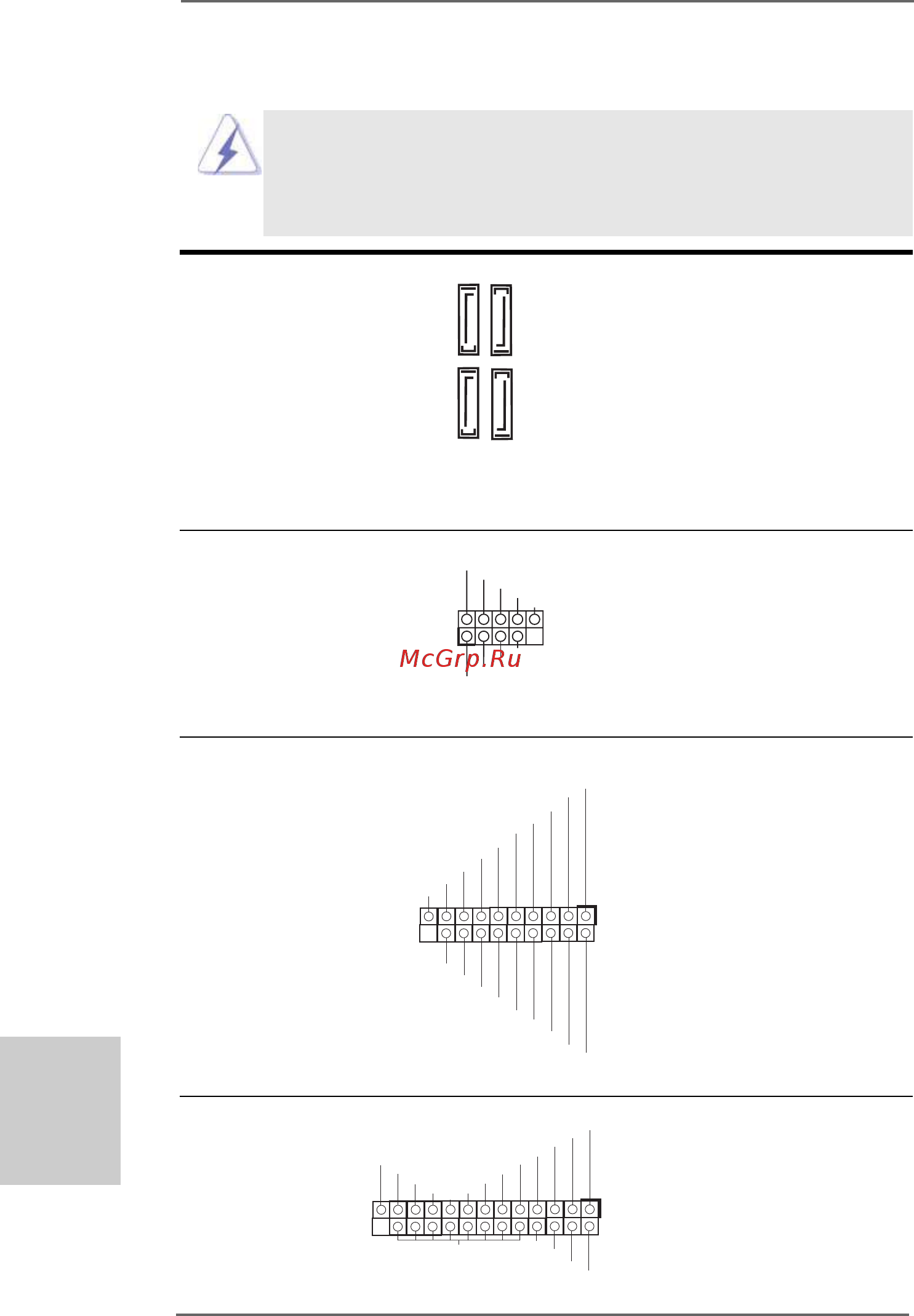

1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper
caps over the headers and connectors will cause permanent dam-
age of the motherboard!
•
Serial ATA2 Connectors These four Serial ATA2 (SATA2)
(SATAII_1 (PORT 0.0): connectors support SATA2
see p.2 or 3, No. 6) or SATA hard disk for internal
(SATAII_2 (PORT 0.1): storage devices. The current
see p.2 or 3, No. 5) SATA2 interface allows up to
(SATAII_3 (PORT 1.0): 3.0 Gb/s data transfer rate.
see p.2 or 3, No. 7)
(SATAII_4 (PORT 1.1):
see p.2 or 3, No. 8)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB 2.0 Headers There are two USB 2.0 headers
(9-pin USB5_6) on this motherboard. Each
(see p.2 or 3 No. 13) USB 2.0 header can support two
USB 2.0 ports.
(9-pin USB7_8)
(see p.2 or 3 No. 12)
USB 3.0 Header There is one USB 3.0 header on
(for N68-GS4/USB3 FX R2.0 only) this motherboard. This USB 3.0
(19-pin USB3_1_2) header can support two USB
(see p.2 No. 18) 3.0 ports.
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.2 or 3 No. 14) convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD3
SPD2
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
SATAII_1
(PORT 0.0)
SATAII_2
(PORT 0.1)
SATAII_3
(PORT 1.0)
SATAII_4
(PORT 1.1)
