ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English
Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard L
ayoutayout
ayoutayout
ayout

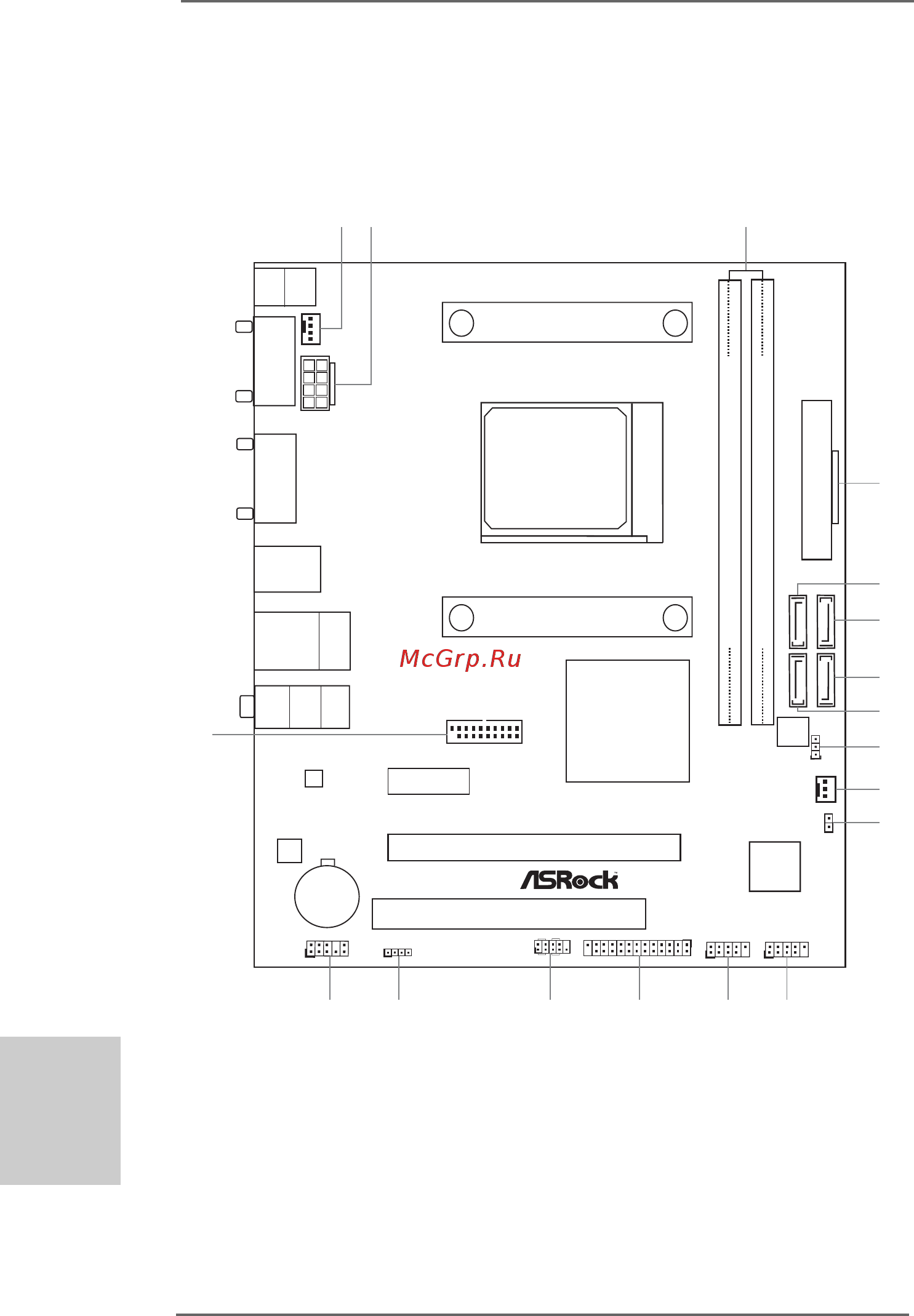

1 CPU Fan Connector (CPU_FAN1) 10 Chassis Fan Connector (CHA_FAN1)
2 ATX 12V Power Connector (ATX12V1) 11 Chassis Intrusion Header (CI1)
3 2 x 240-pin DDR3 DIMM Slots 12 USB 2.0 Header (USB7_8)
(Dual Channel: DDR3_A1, DDR3_B1) 13 USB 2.0 Header (USB5_6)
4 ATX Power Connector (ATXPWR1) 14 Print Port Header (LPT1)
5 SATA2 Connector (SATAII_2 (PORT 0.1)) 15 System Panel Header (PANEL1)
6 SATA2 Connector (SATAII_1 (PORT 0.0)) 16 Chassis Speaker Header (SPEAKER1)
7 SATA2 Connector (SATAII_3 (PORT 1.0)) 17 Front Panel Audio Header (HD_AUDIO1)
8 SATA2 Connector (SATAII_4 (PORT 1.1)) 18 USB 3.0 Header (USB3_1_2)
9 Clear CMOS Jumper (CLRCMOS1)
NVIDIA
GeForce
7025 /
nForce
630a
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
BIOS
ROM
CMOS
BATTERY
Super
I/O
RoHS
N68-GS4/USB3 FX
SOCKET AM3
USB3_1_2
PCIE1
PCIE2
PCI1
LAN
PHY
AUDIO
CODEC
HD_AUDIO1
1
CI1
1
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANEL 1
11
CLRCMOS1
1
USB5_6
1
LPT1
1
1
US7_8
SATAII_4 SATAII_2
(PORT 1.1) (PORT 0.1)
SATAII_3 SATAII_1
(PORT 1.0) (PORT 0.0)
CPU_FAN1
ATX12V1
PS2
Mouse
PS2
Keyboard
VGA1
COM1
USB 3.0
T: U SB 3
B: USB4
USB 2.0
T: U SB 3
B: USB4
Top:
RJ-45
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
1
2
3
4
6
7
5
8
9
10
11
1213
14
15
16
17
18
N68- N68-
N68- N68-
N68-
GS4/USB3 FX R2.0:GS4/USB3 FX R2.0:
GS4/USB3 FX R2.0:GS4/USB3 FX R2.0:
GS4/USB3 FX R2.0:
