ASRock ALiveNF6G-GLAN Motherboard

EnglishEnglish

English

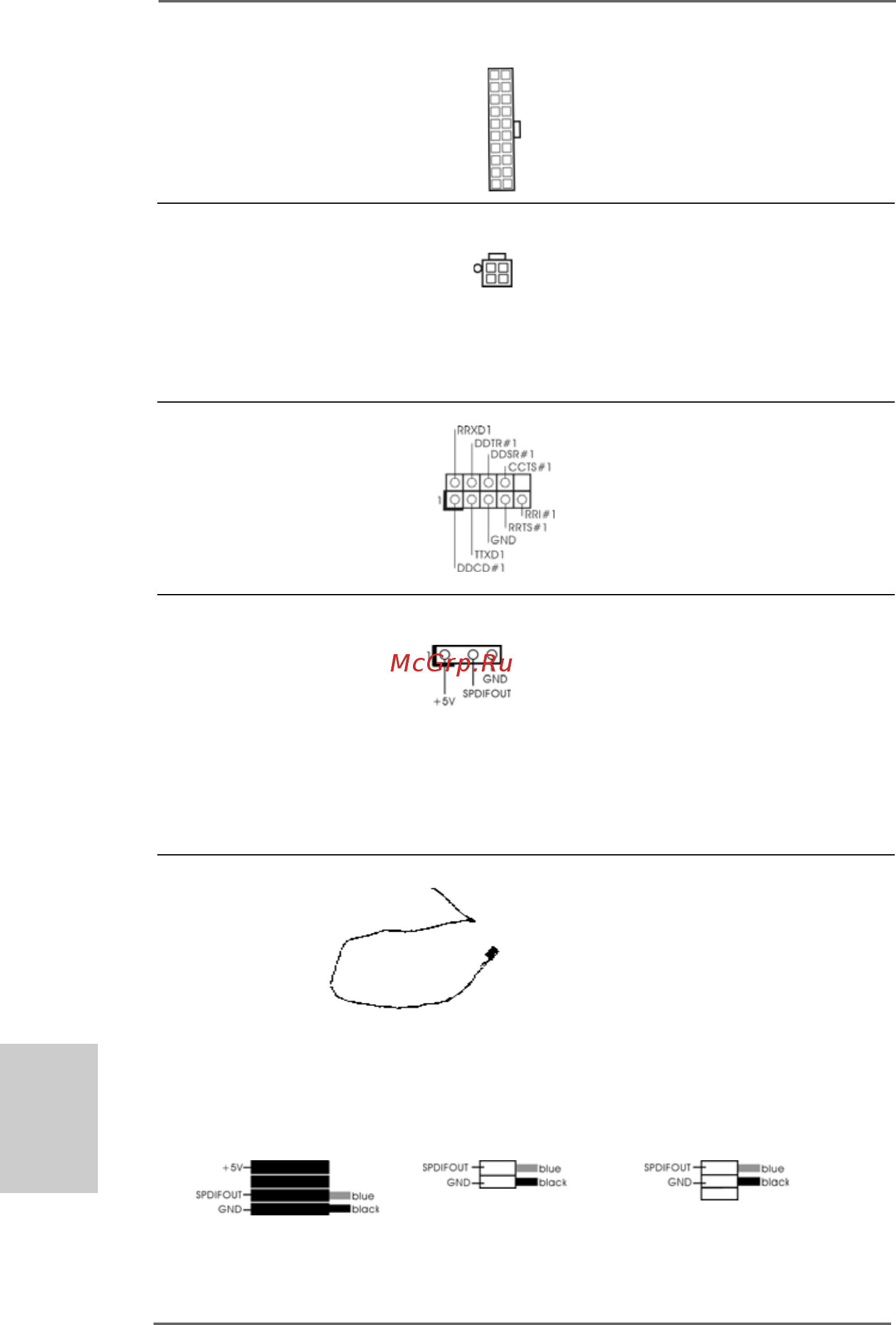

Serial port Header This COM1 header supports a

(9-pin COM1) serial port module.

(see p.2 No.31)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.2 No. 25) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

ATX 12V Power Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2 No. 2) ATX 12V plug to this connector.

Failing to do so will cause power

up failure.

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2 No. 30)
