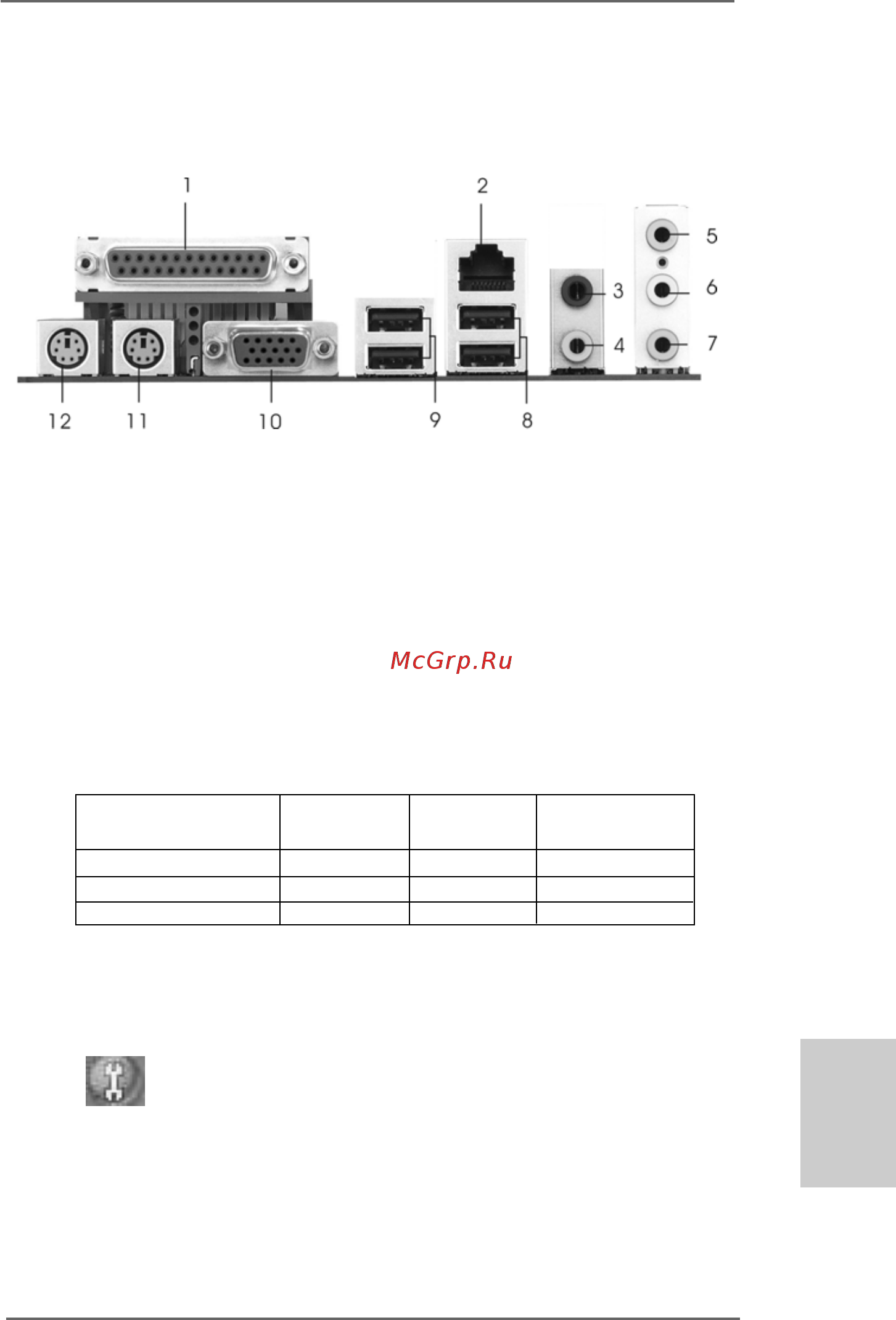

1 Parallel Port 7 Microphone (Pink)

2 RJ-45 Port 8 USB 2.0 Ports (USB01)

3 Rear Speaker (Black) 9 USB 2.0 Ports (USB23)

4 Central / Bass (Orange) 10 VGA Port

5 Line In (Light Blue) 11 PS/2 Keyboard Port (Purple)

* 6 Front Speaker (Lime) 12 PS/2 Mouse Port (Green)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows

XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows

Vista

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “5.1 Speaker”. Click “Device advanced settings”,

choose “Make front and rear output devices playbacks two different audio streams

simultaneously”, and click “ok”. Then reboot your system.

Audio Output Channels Front Speaker Rear Speaker Central / Bass

(No. 6) (No. 3) (No. 4)

2 V -- --

4VV--

6VVV
