2.5 Installation of Memory Modules (DIMM)

K7VM2 motherboard provides two 184-pin DDR (Double Data Rate) DIMM slots.

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

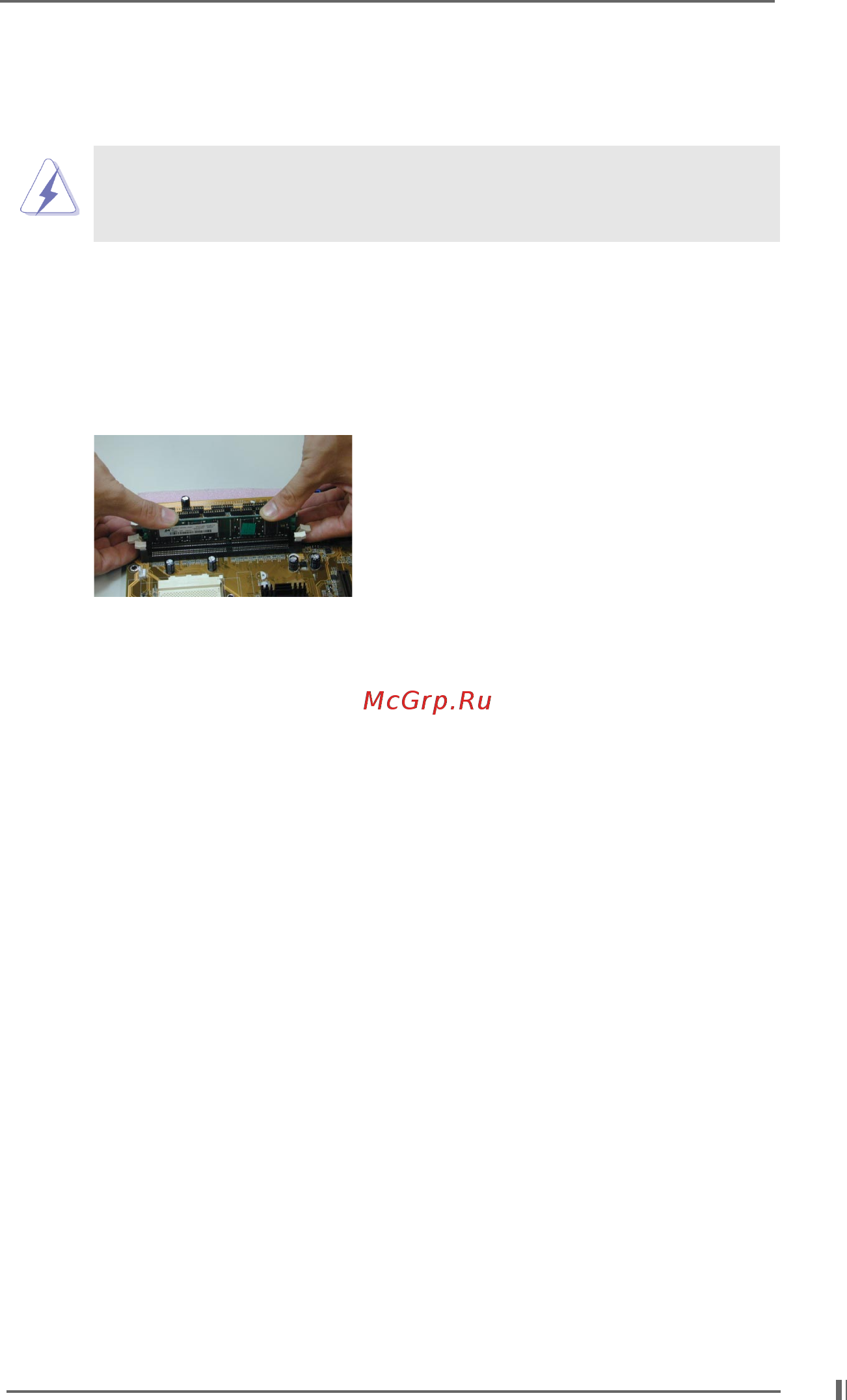

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

Step 3. Firmly insert the DIMM into the slot until the retaining clip snap back in place

and the DIMM is properly seated.

2.6 Expansion Slots (PCI, AMR, and AGP Slots)

There are 2 PCI slots, 1 AMR slot, and 1 AGP slot on K7VM2 motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AMR slot: AMR slot is used to insert an AMR modem card with v.92 Modem

functionality.

AGP slot: The AGP slot is used to install a graphics card.

The ASRock AGP slot has a special locking mechanism which can

securely fasten the graphics card inserted.

Installing an expansion card

Step 1. Before installing the expansion card, read the documentation of the

expansion card and make necessary hardware settings for the card.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.
