2.7 Jumpers Setup2.7 Jumpers Setup

2.7 Jumpers Setup

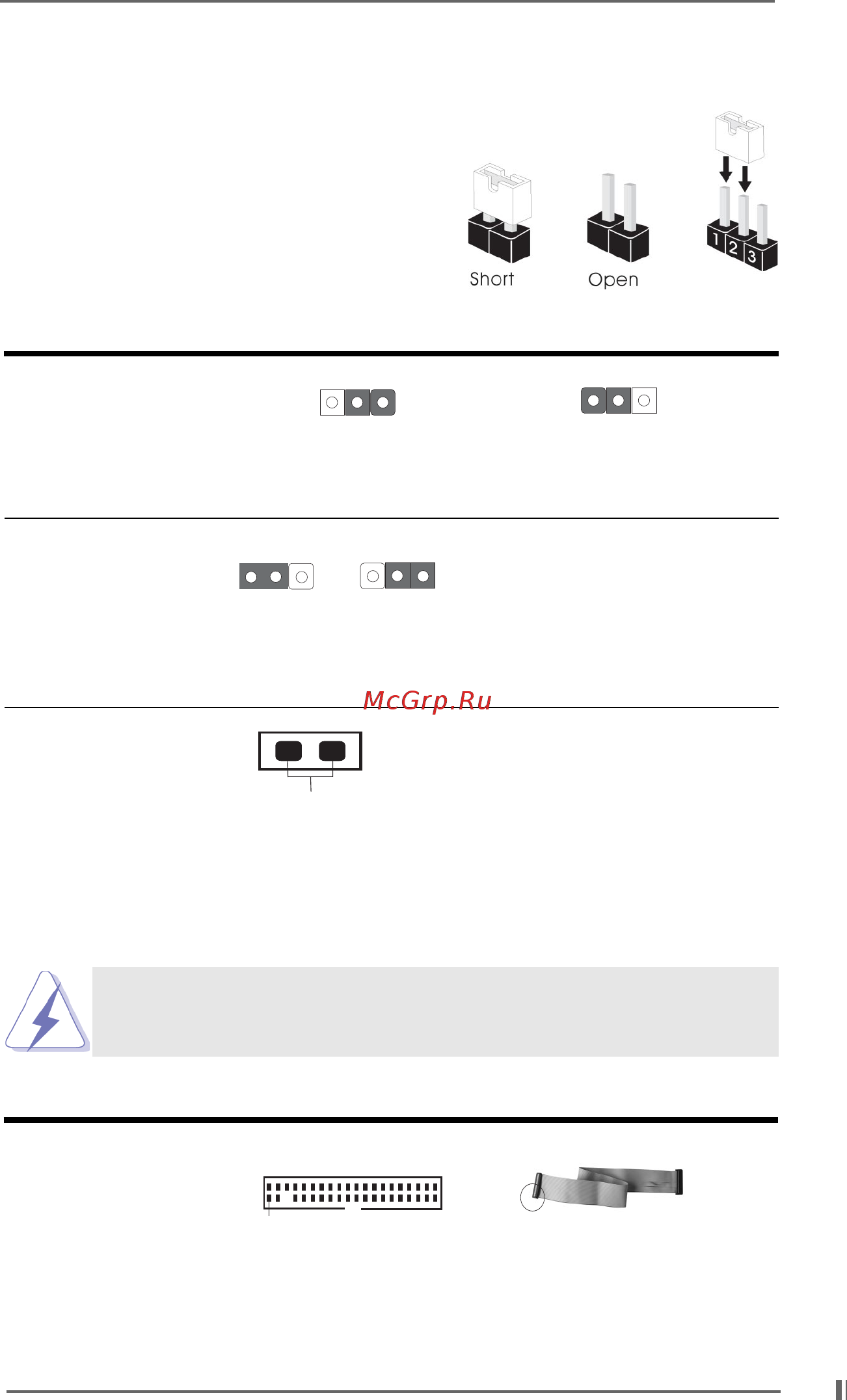

The illustration shows how jumpers are setup.

When the jumper cap is placed on pins, the jumper

is “SHORT”. If no jumper cap is placed on pins,

the jumper is “OPEN”. The illustration shows a

3-pin jumper whose pin1 and pin2 are “SHORT”

when jumper cap is placed on these 2 pins.

Jumper Setting Description

FSB_SEL1

(see p.6 item 28)

FSB 100 MHz FSB 133 MHz

Note: Follow the figures to set the CPU front side bus frequency.

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.6 item 22) +5VSB (standby) for PS/2 or

+5V +5VSB USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current.

CLRCMOS1 Disconnect the power cord,

(see p.6 item 17) then short the solder points

solder points to clear CMOS by using

metal material, e.g., a paper

clip.

2.8 Connectors2.8 Connectors

2.8 Connectors

Connectors are NOT jumpers. DO NOT place jumper caps over

these connectors.

Connector Figure Description

FDD connector

(33-pin FLOPPY1)

(see p.6 item 10)

Note: Match the red marking on the floppy ribbon cable with Pin1.

FSB_SEL1

2_3

FSB_SEL1

1_2

2_3

FLOPPY1

Pin1

Red marking
