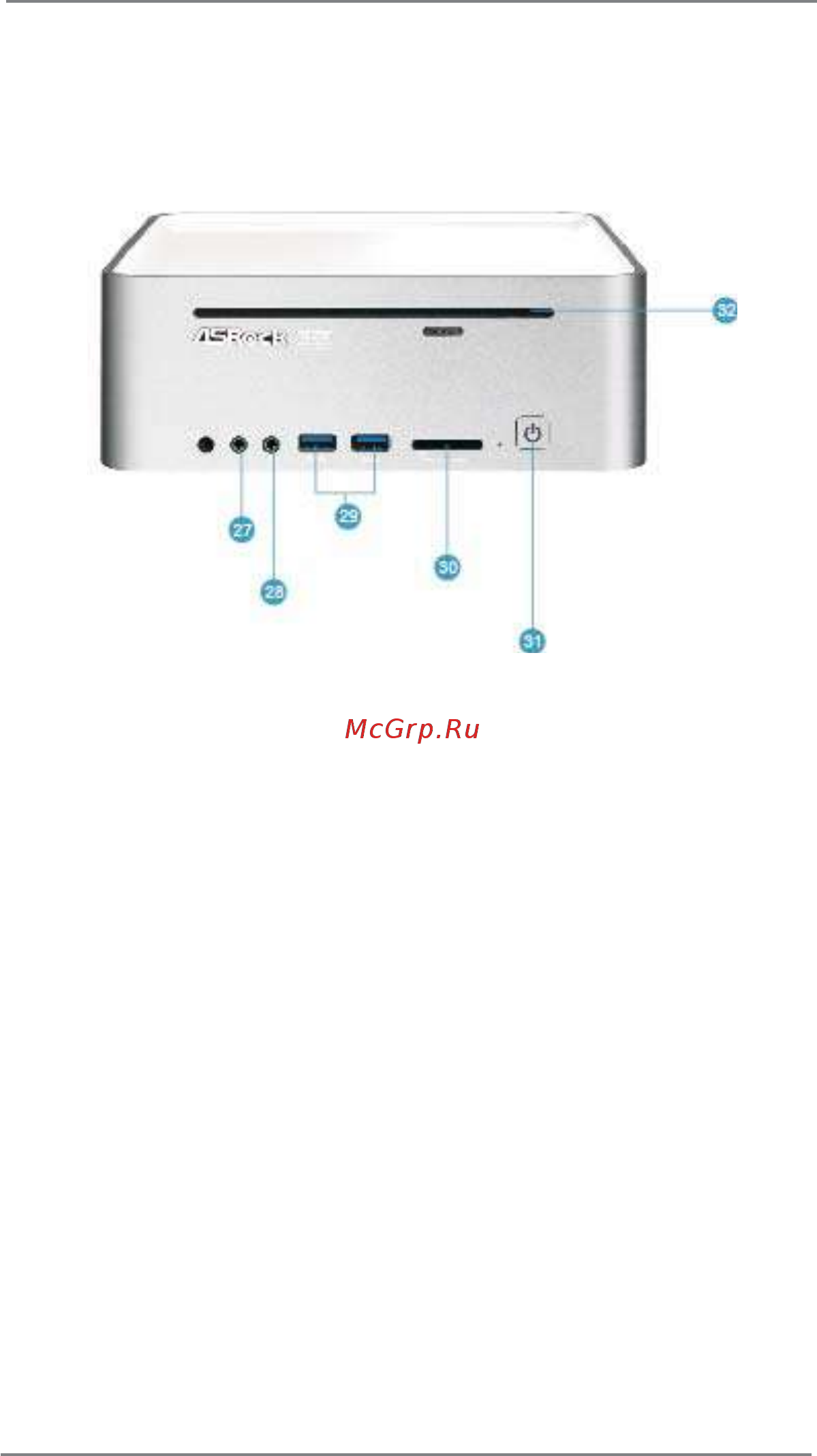

1.5 System Chassis
27. Headphone
28. Microphone
29. USB3.0 ports: USB devices
30. 4-in-1 Card reader (MMC/SD/MS/MS Pro)
31. Power ON/OFF button with status indicator
32. Slot-in Optical Disc Drive
