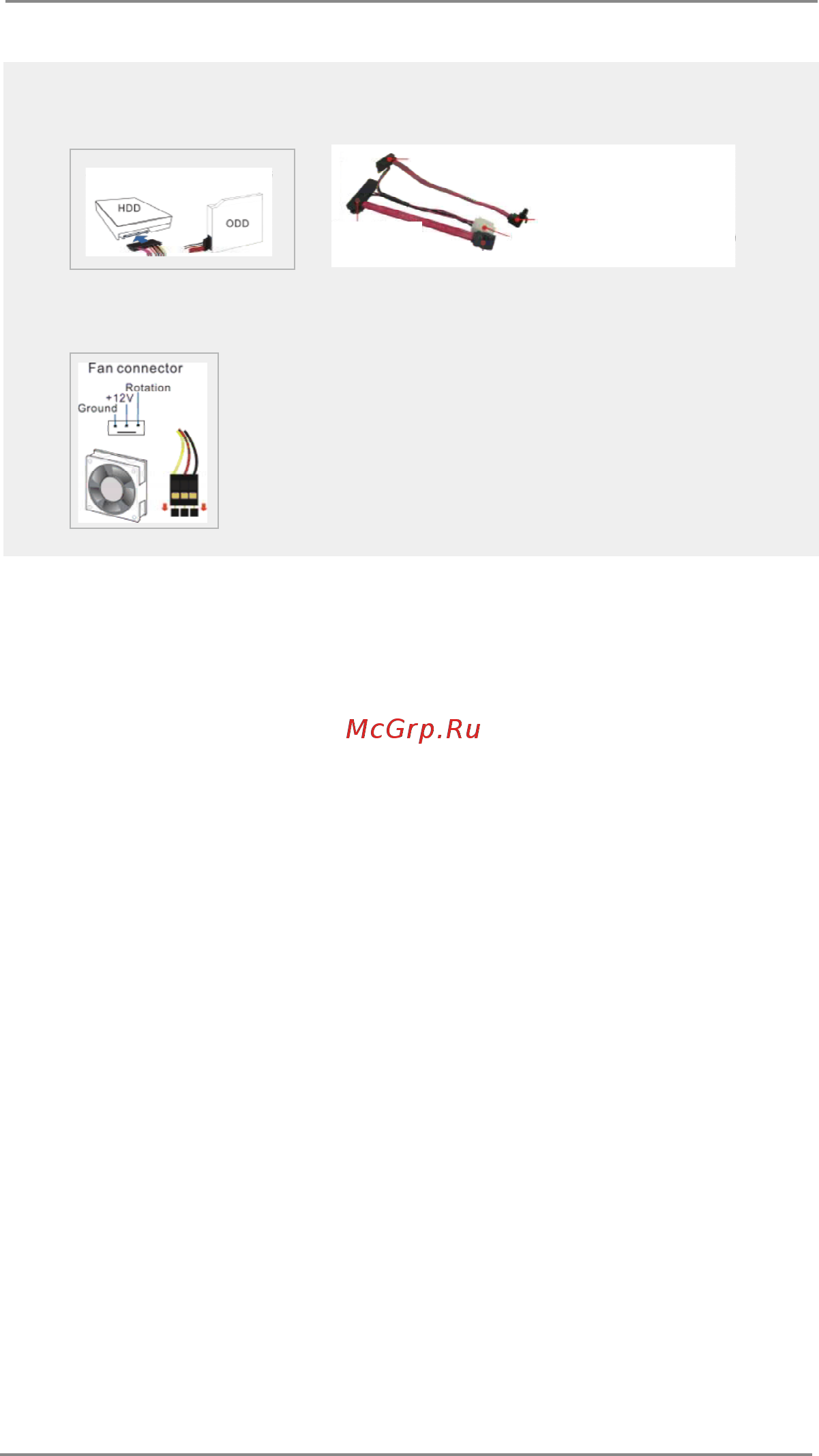

1. SATA and Power Connections
2. Fan Connection
SATA & Power Connections
Connect to HDD
Connect to SATA Connector (4)
Connect to ATX5V Power Connector (3)
Connect to SATA Connector (1)
Connect to ODD
