Chapter 3 System ComponentsChapter 3 System Components

Chapter 3 System Components

ReinstallationReinstallation

Reinstallation

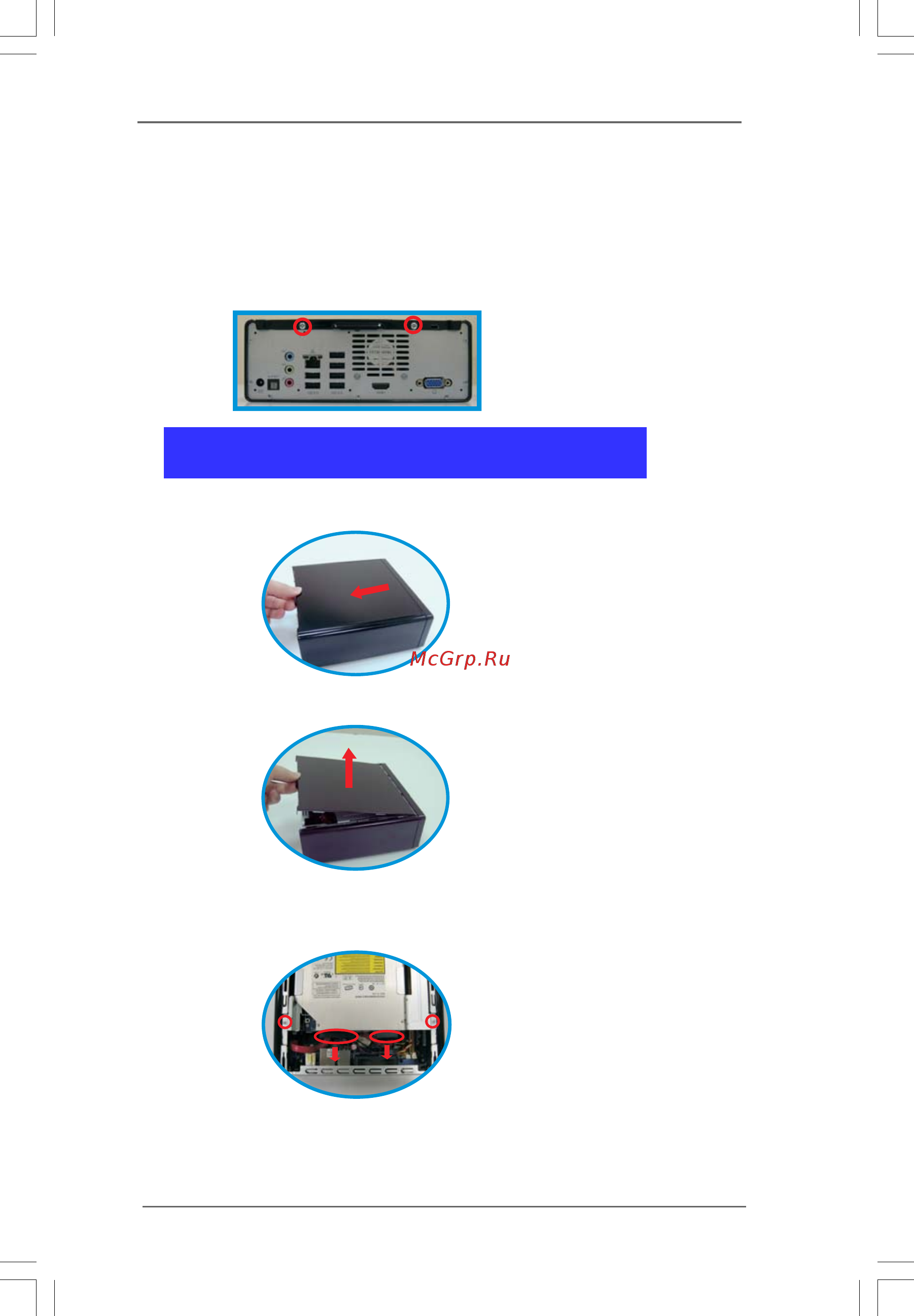

1. Remove the cover screws on the rear panel.

2. Slide the side cover toward the rear panel.

3. Pull the side cover upwards.

Note: For safety reasons, please ensure that the power cord is

disconnected before opening the case.

4. To change the storage drives, you need to remove SATA and power

cables from ODD / HDD first, and unscrew the screws from both side.
