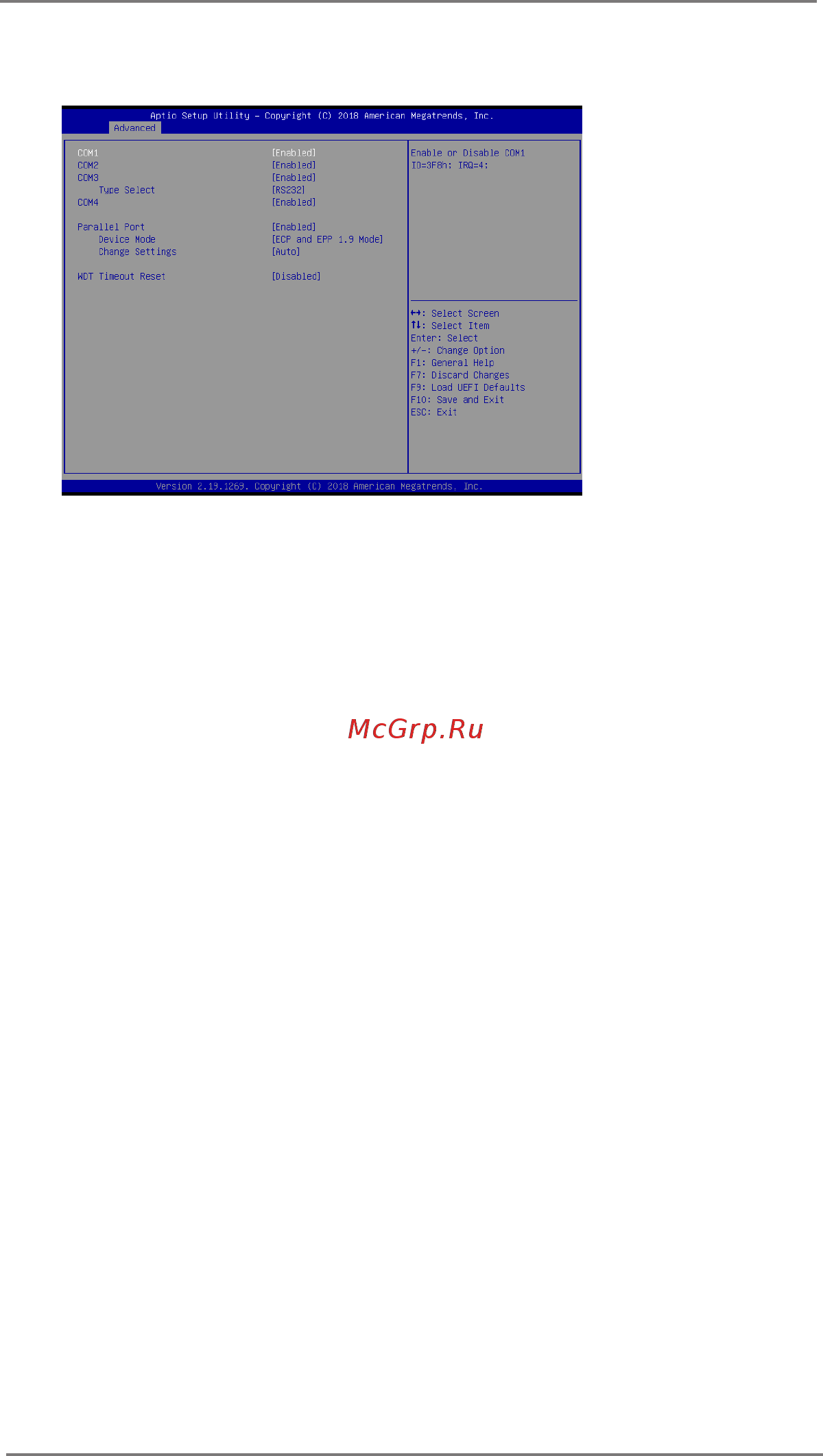

3.3.4 Super IO Conguration
COM1 Conguration
Use this to set parameters of COM1.
COM2 Conguration
Use this to set parameters of COM2.
COM3 Conguration
Use this to set parameters of COM3.
Type Select
Use this to select COM3 port type: [RS232], [RS422] or [RS485].
COM4 Conguration
Use this to set parameters of COM4.
Parallel Port
Enable or disable the Parallel port.
Device Mode
Select the device mode according to your connected device.
Change Settings
Select the address of the Parallel port.
WDT Timeout Reset
Use this to set the Watch Dog Timer.
