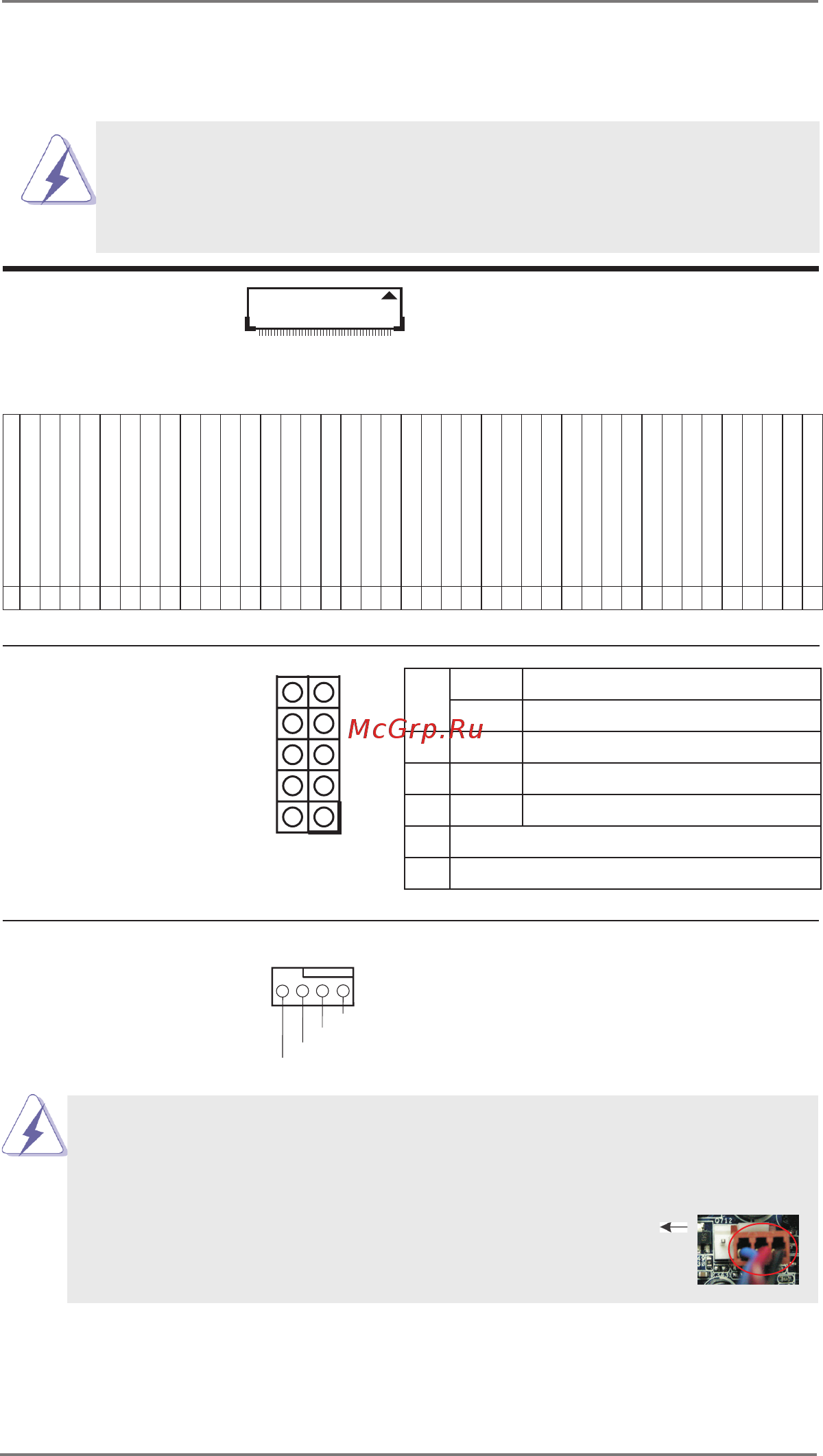

ASRock MXM IPC-Q370 [20/45] 10 pin jp_set1
![ASRock MXM IPC-Q370 [20/45] 10 pin jp_set1](/views2/1693184/page20/bg14.png)
20
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
eDP Connector
(40-pin EDP1)
(see p.10 or 13, No. 11)
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.10 or 13, No. 2)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Pin 1-3 Connected
3-Pin Fan Installation
1
10 9
8 7
6
5
4 3
2 1
1-2
Open ATX Mode
Close AT Mode
3-4 Close Clean CMOS
3-5 Close Auto Clear CMOS (Power Off)
7-8 Close When Using Rechargeable Battery
9 BUZZER + (+5V)
10 BUZZER -
JP_SET
(10-pin JP_SET1)
(see p.10 or 13, No. 5)
PIN Signal Name
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 SMB_CLK
34 SMB_DATA
33 CON_LBKLT_CTL
32 CON_LBKLT_EN
31 GND
30 GND
29 GND
28 GND
27 eDP_HPD_CON
26 GND
25 GND
24 GND
23 GND
22 NA
21 LCD_VCC
20 LCD_VCC
19 LCD_VCC
18 LCD_VCC
17 GND
16 eDP_AUX#_CON
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9 eDP_TX#1_CON
8 GND
7 eDP_TX2_CON
6 eDP_TX#2_CON
5 GND
4 eDP_TX3_CON
3 eDP_TX#3_CON
2 GND
1 NA
40
1
EDP1
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
4 3 2 1
