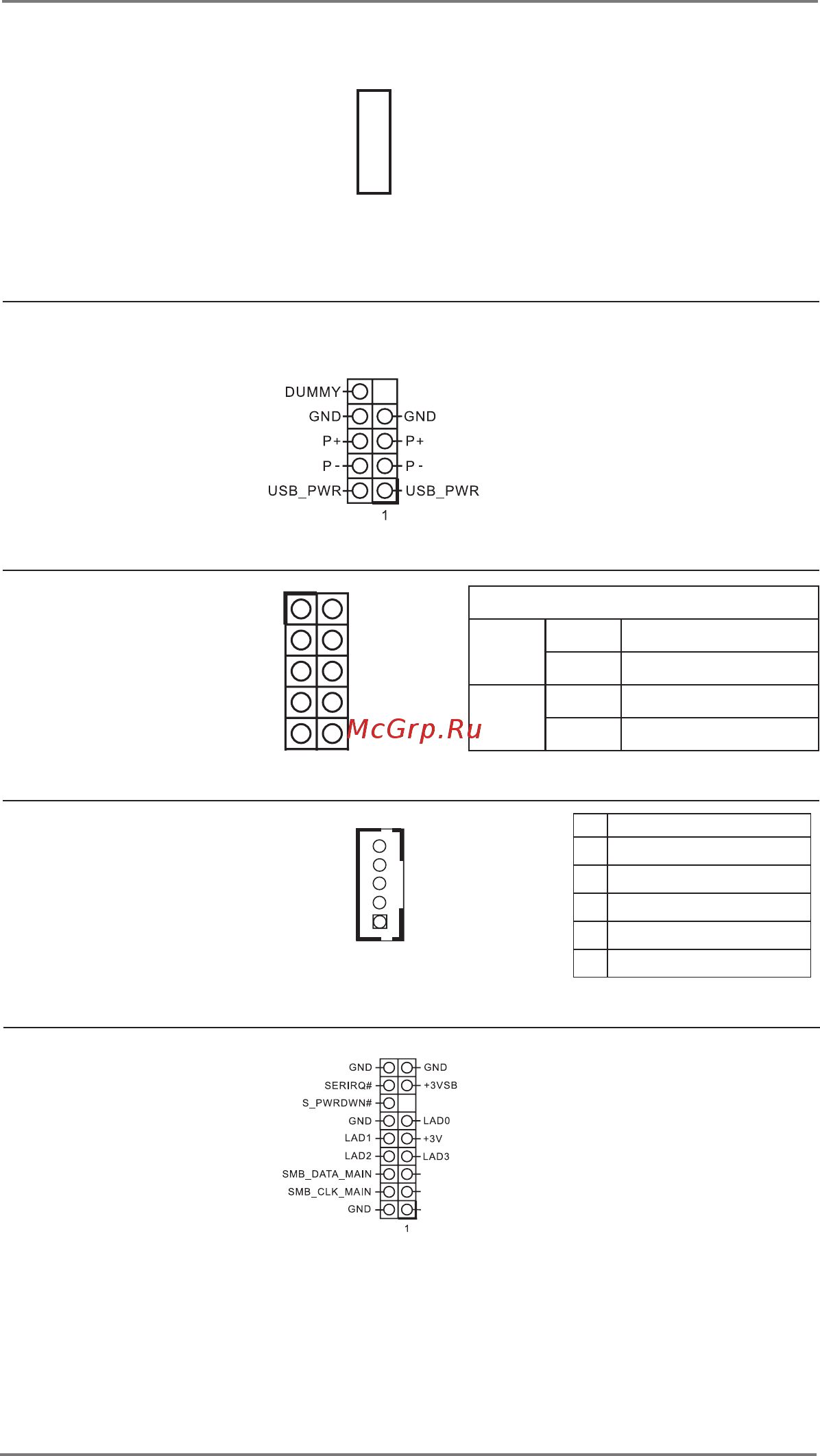

SATA3 Connectors These two Serial ATA3 (SATA3)

(SATA3_1: see p.10, No. 15 or p.13, No. 16)

connectors support SATA data

(SATA3_2: see p.10, No. 17 or p.13, No. 18)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate.

USB 2.0 Header This USB 2.0 header can

(9-pin USB2_5_6: see p.10 or 13, No. 4)

support two ports.

SATA3

JP_SET

(10-pin JP_SET2)

(see p.10 or 13, No. 14)

1 2

3 4

5 6

7 8

9 10

Chassis Intrusion Headers

1-2 CI1

Open Normal

Close Active Case Open

3-4 CI2

Open Active Case Open

Close Normal

PIN Signal Name

5 FAN_SPEED_CONTORL

4 FAN_SPEED

3 +12V

2 GND

1 GND

GPU Fan Connector

(5-pin GPU_FAN1)

(see p.10 or 13, No. 13)

LPC Header This connector supports a

(17-pin LPC1)

Trusted Platform Module (TPM)

(

see p.10, No. 20 or p.13, No. 21)

system, which can

securely store keys, digital

certicates, passwords, and

data. A TPM system also helps

enhance network security,

protects digital identities, and

ensures platform integrity.

PCIRS T#

FRAME

PCICL K
