10

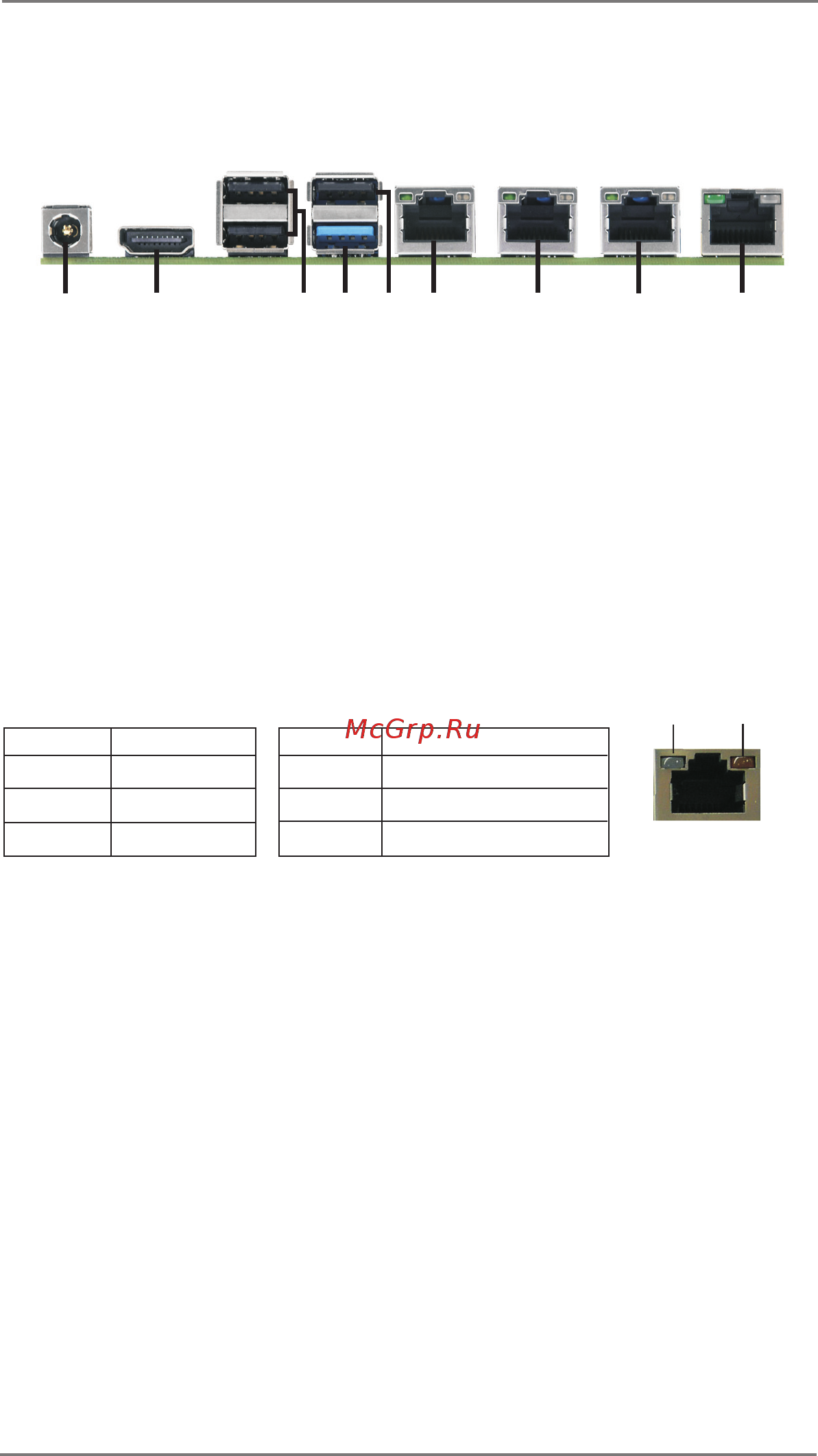

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 DC Jack (DC_JACK1)
2 HDMI Port (HDMI1)
3 USB2.0 Ports (USB2H_0_1)
4 USB3.0 Port (USB3_0)
5 USB2.0 Port (USB2H_0)
ACT/LINK
LED
SPEED
LED
LAN Port
6
1
2 4
3
5
8
7
9
6 LAN RJ-45 Port (LAN1)*
7 LAN RJ-45 Port (LAN2)*
8 LAN RJ-45 Port (LAN3)*
9 LAN RJ-45 Port (LAN4)*
