CPU_FAN1 Setting
This allows you to set CPU_FAN1’s speed. Configuration options: [Full
On] and [Automatic Mode]. The default value is [Full On].
CHA_FAN1 Setting
This allows you to set CHA_FAN1’s speed. Configuration options: [Full
On] and [Automatic Mode]. The default value is [Full On].
Case Open Feature
This allows you to enable or disable case open detection feature. The
default is value [Disabled].
Clear Status
This option appears only when the case open has been detected. Use this
option to keep or clear the record of previous chassis intrusion status.

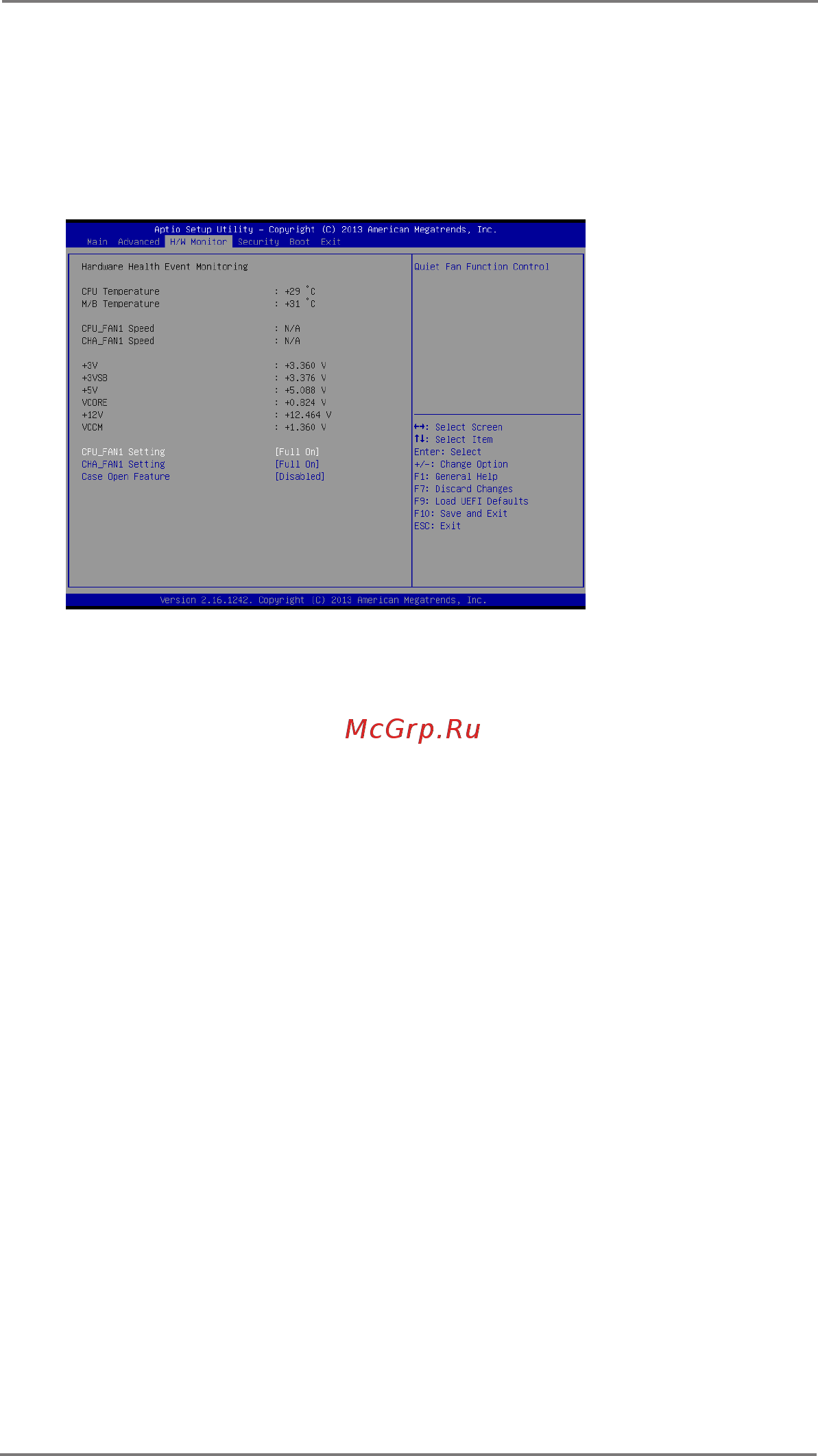

3.4 Hardware Health Event Monitoring Screen
In this section, it allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, CPU
fan speed, chassis fan speed, and the critical voltage.
