2.3 Installation of Memory Modules (SO-DIMM)

IMB-1213

provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots.

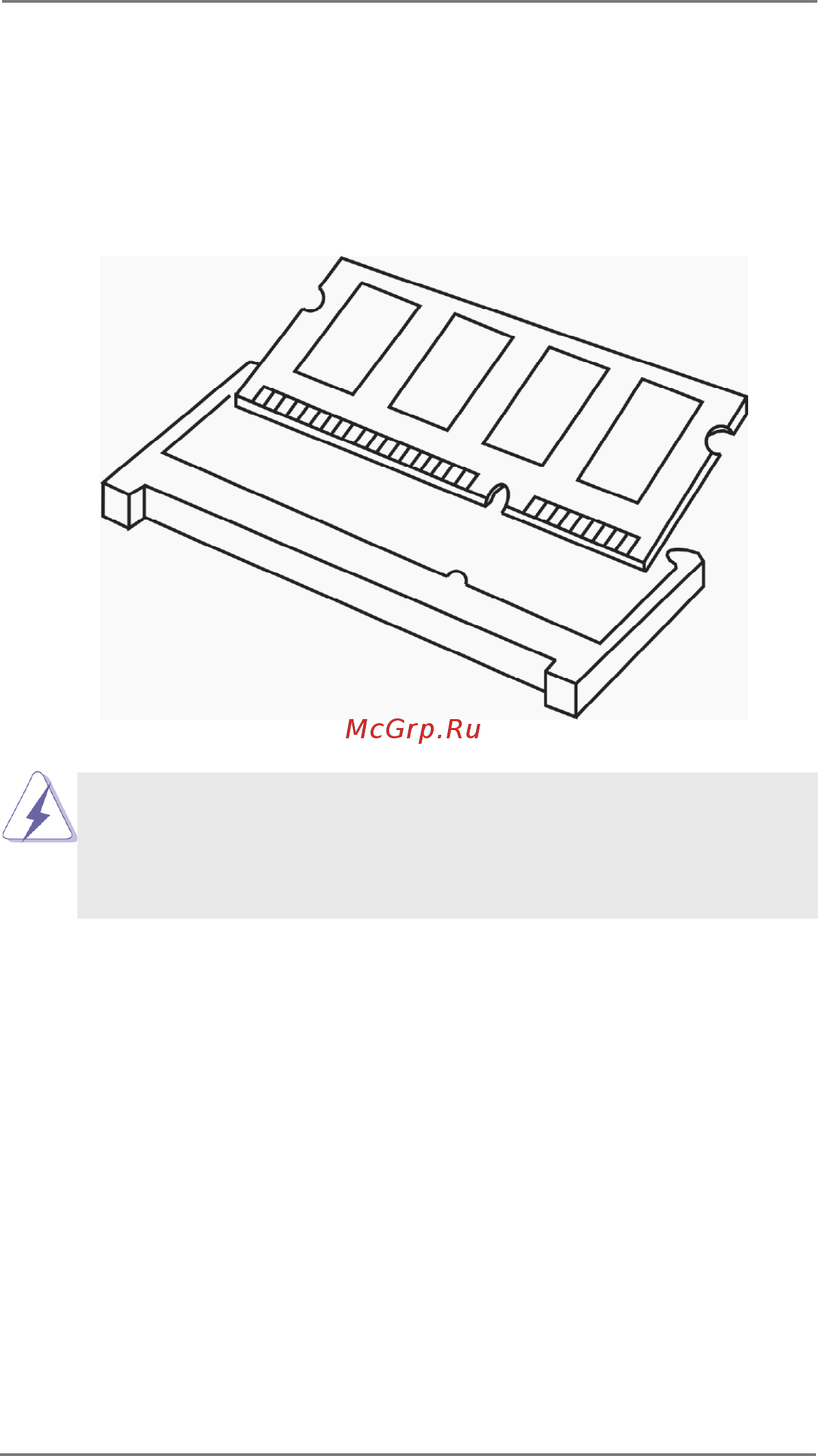

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM

matches the break on the slot.

1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage

to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at

incorrect orientation.

2. Please do not intermix dierent voltage SO-DIMMs on this motherboard.

Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both

ends fully snap back in place and the SO-DIMM is properly seated.
