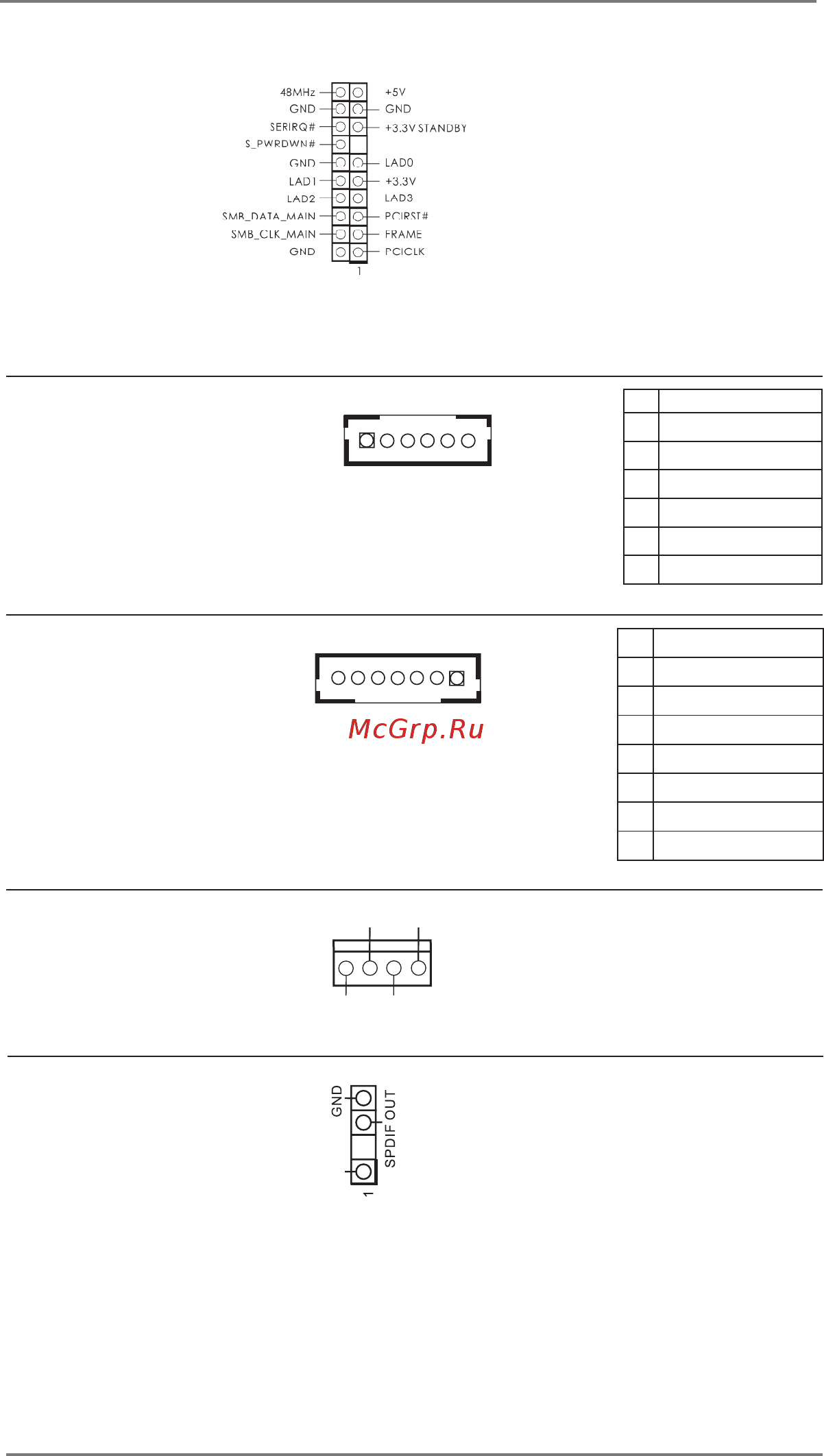

Backlight Power Connector
(6-pin BLT_PWR1)
(see p.8 No. 14)
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 21)
LPC Header This connector supports a
(19-pin LPC1)
Trusted Platform Module (TPM)
(
see p.8, No. 34)
system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
1
PIN Signal Name
1 GND
2 GND
3 BL CTL
4 BL EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 LVDS1 BLUP
5 LVDS1 BLDW
6 GND
7 GND
1
SATA Power Connector
Please connect a SATA
(SATA_PWR1)
power cable to this connector.
(see p.8 No. 7)
SPDIF Header SPDIF header, providing
(3-pin SPDIF1)
SPDIF audio output to HDMI
(see p.8, No. 30)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the SPDIF connector of
HDMI VGA card to this header.
GND
+5V
+12V
1
GND
+5V
