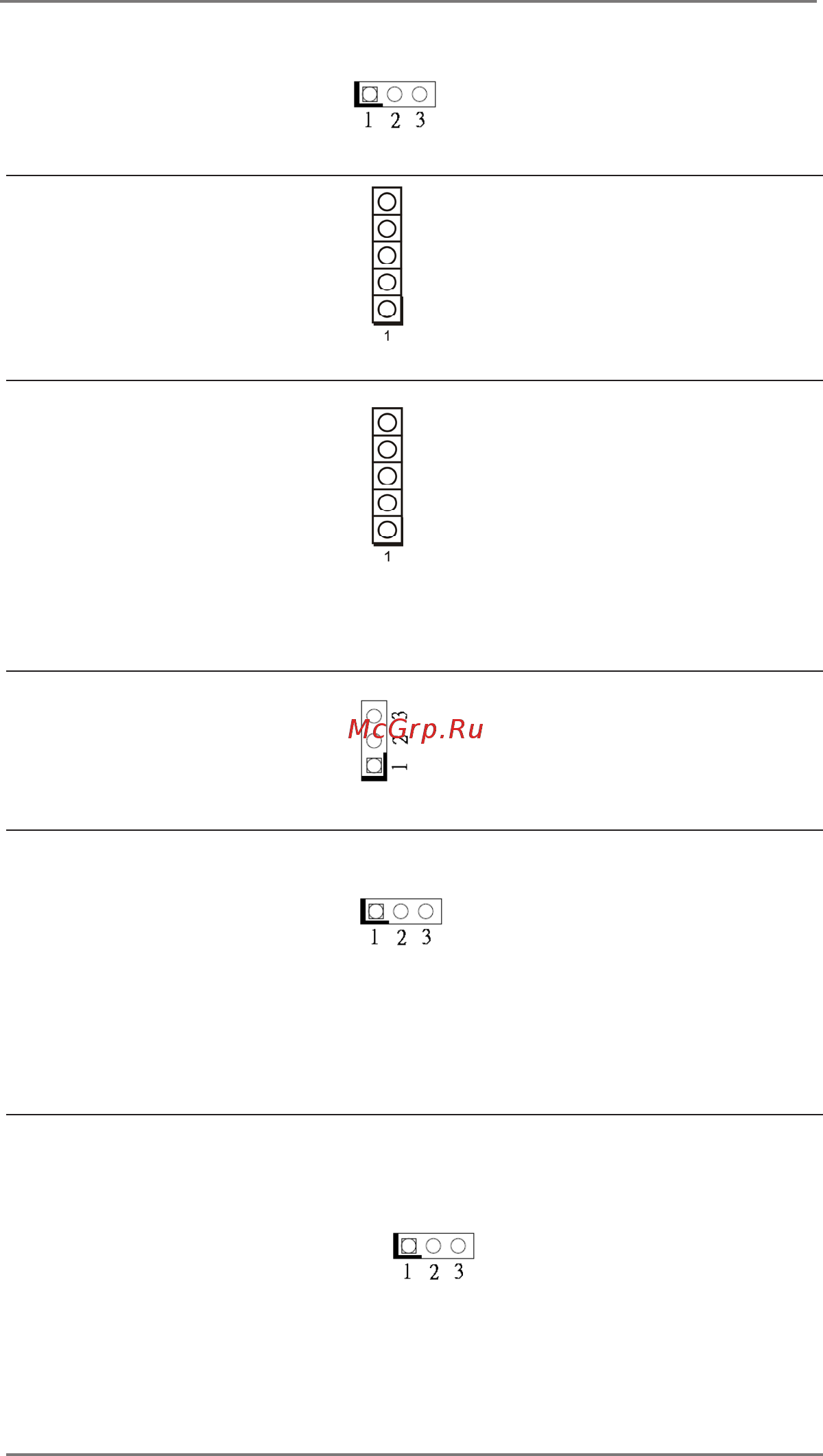

Backlight Power Select Use this to set up the backlight

(LCD_BLT_VCC) power of the LVDS connector

(5-pin BKT_PWR1)

and the panel backlight power

(see p.8 No. 13)

of BLT_PWM1.

1-2: LCD_BLT_VCC: +5V

2-3: LCD_BLT_VCC: +12V

4-5: LCD_BLT_VCC: DC Input

Backlight Control Level

1-2: From eDP PWM to CON_LBKLT_CTL

(3-pin BLT_PWM1)

2-3: From LVDS PWM to CON_LBKLT_CTL

(see p.8, No. 8)

COM Port Pin9 PWR Setting Jumpers

1-2: +5V

(3-pin PWR_COM1, for COM Port1)

2-3: +12V

(3-pin PWR_COM2, for COM Port2)

(3-pin PWR_COM3, for COM Port3)

(3-pin PWR_COM4, for COM Port4)

(3-pin PWR_COM5, for COM Port5)

(3-pin PWR_COM6, for COM Port6)

(see p.8, No. 20)

USB Power Setting Jumpers

(3-pin USB2_PWR4_5 (For USB2_4_5))

1-2: +5V

(3-pin USB2_PWR6_7 (For USB2_6_7 and PS2_KB_MS1))

2-3: +5VSB

(see p.8, No. 35)

Panel Power Select (LCD_VCC) Use this to set up the VDD

(5-pin PNL_PWR1)

power of the LVDS connector.

(see p.8 No. 12)

1-2: LCD_VCC: +3V

2-3: LCD_VCC: +5V

4-5: LCD_VCC: +12V

ATX/AT Mode Select

1-2: AT Mode

(3-pin PWR_JP1)

2-3: ATX Mode

(see p.8 No. 25)
