16

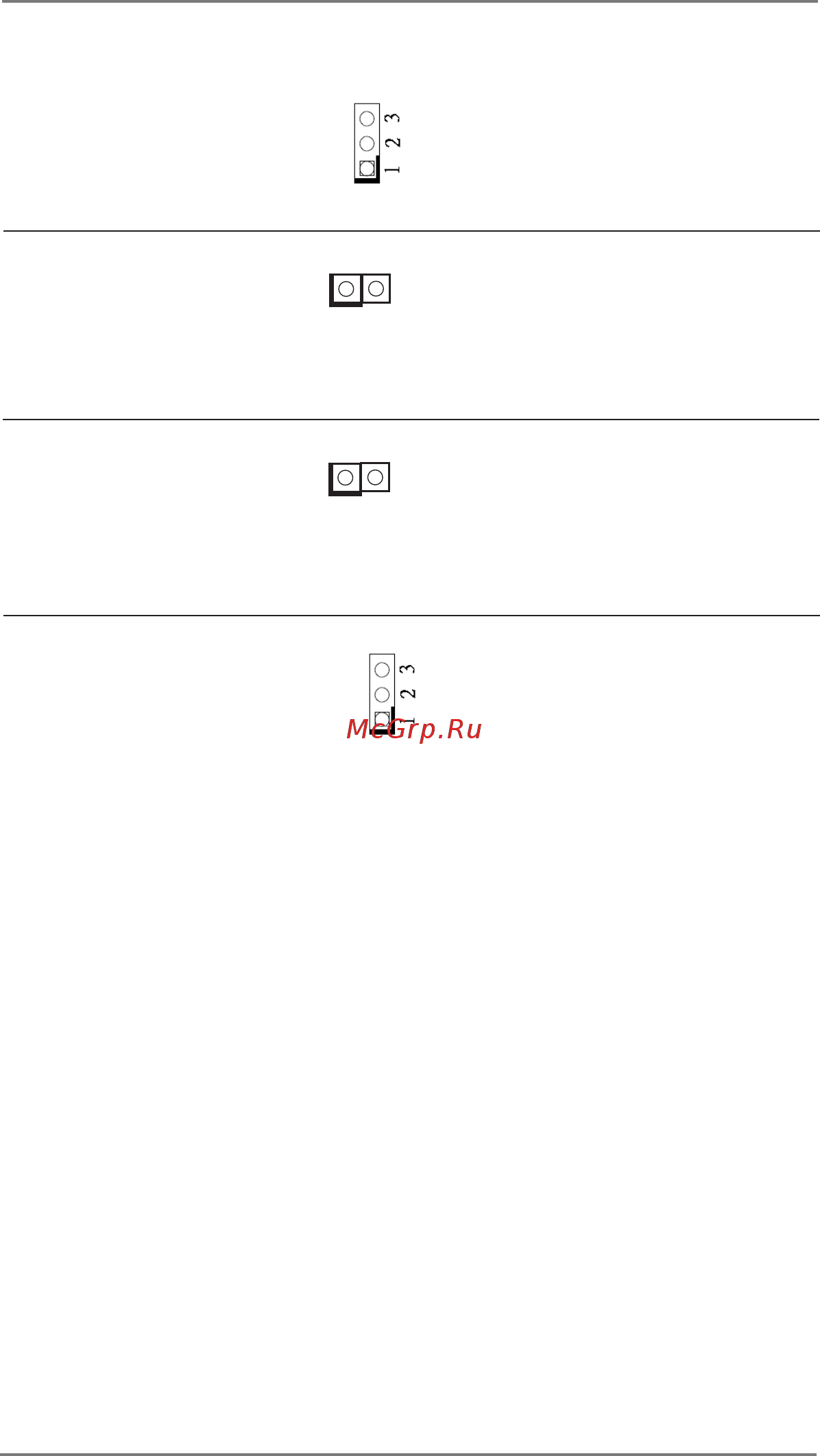

Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1)
2-3: Pull-Low
(see p.8, No. 18)
USB6_S_MPCIE1
USB6_S_MPCIE1:
(2-pin USB6_S_MPCIE1)
Pin1 short USB2_6_7 pin3 and pin2
(see p.8, No. 32)
short USB2_6_7 pin5: share USB port 6
of USB2_6_7 header to MPCIE1
1
USB4_S_M2E1
USB4_S_M2E1:
(2-pin USB4_S_M2E1)
Pin1 short USB2_4_5 pin3 and pin2
(see p.8, No. 15)
short USB2_4_5 pin5: share USB port 4
of USB2_4_5 header to M.2 KEY E
1
USB Power Setting Jumpers 1-2: +5V
(3-pin USB3_PWR0_1 (For USB3_0_1))
2-3: +5VSB
(3-pin USB3_PWR2_3 (For USB3_2_3))
(see p.8, No. 2)
