9

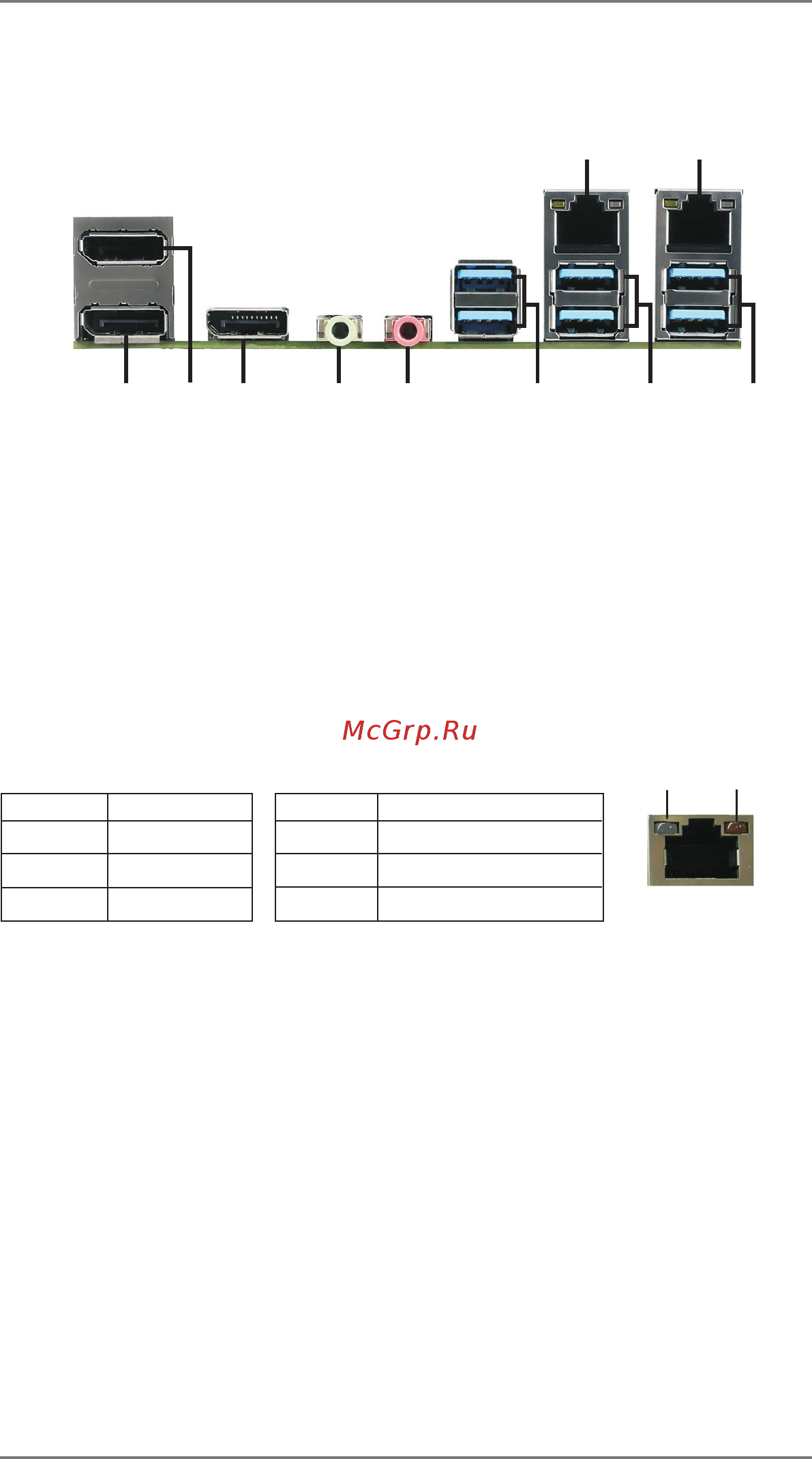

1.4 I/O Panel
1 LAN RJ-45 Port (LAN1)*
2 LAN RJ-45 Port (LAN2)*
3 USB 3.0 Ports (USB3_2_3)
4 USB 3.0 Ports (USB3_0_1)
5 USB 3.0 Ports (USB3_14_15)
6 Microphone (Pink)
7 Front Speaker (Lime)
8 DisplayPort (DP2)
9 DisplayPort (DP0)
10 DisplayPort (DP1)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
6
1
2
4
3
5
7
9
8
10
