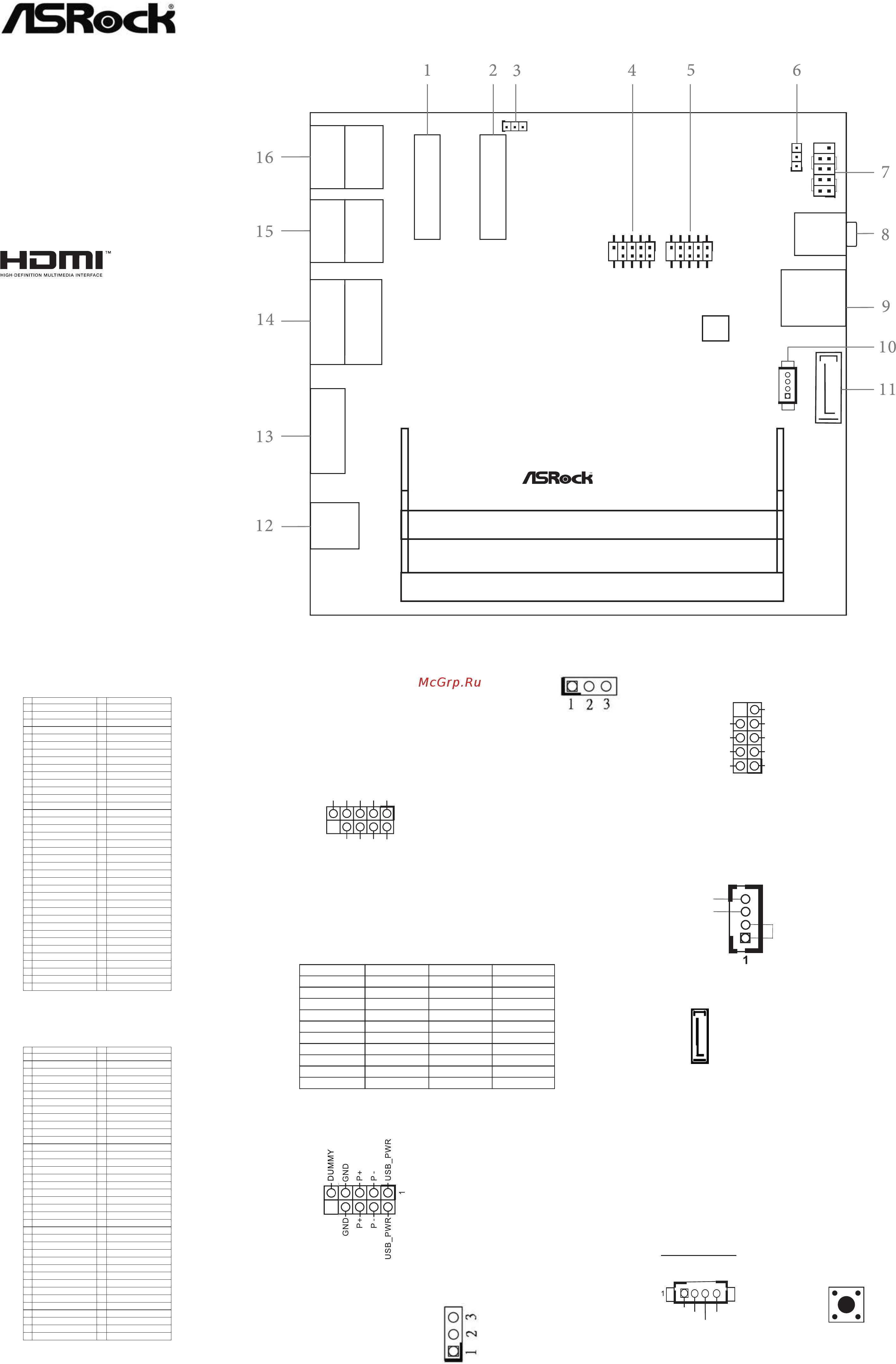

Jumpers and Headers Setting Guide
N4200-NUC-DL
N3350-NUC-DL
3 : Clear CMOS Header (CLRMOS1)
1-2 : Normal
2-3 : Clear CMOS
4 : COM Port Header (COM1)
5 : USB2.0 Header (USB2_4_5)
6 : ATX/AT Mode Select (PWR_JP1)
1-2 : AT Mode
2-3 : ATX Mode
The terms HDMI™ and HDMI High-Denition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
LAN1
AUDIO1
HDMI1
USB3_2
DC_IN1
M.2 KEY M
USB 3.0:
USB3_1
DP2
DISPLAY1
PANEL1
HDLED RESE T
PLED PWRBTN
1
S ATA3_1
DDR3_A1 (Support DDR3L Only)
DDR3_B1 (Support DDR3L Only)
SATA_PWR 1
1
N4200-NUC-DL
Industr ial
LAN2
USB 3.0:
USB3_3
M.2 KEY E
1
PWR_JP1
1
COM1
1
USB2_4_5
BIOS
Chip
1
CLRM OS 1
PIN Signal Name PIN Signal Name
1 GND 2 +3V
3 GND 4 +3V
5 NC 6 NC
7 NC 8 NC
9 GND 10 NC
11 NC 12 +3V
13 NC 14 +3V
15 GND 16 +3V
17 NC 18 +3V
19 NC 20 NC
21 GND 22 NC
23 NC 24 NC
25 NC 26 NC
27 GND 28 NC
29 NC 30 NC
31 NC 32 NC
33
GND
34
NC
35 NC 36
NC
37 NC 38 DEVSLP
39 GND 40 SMB_CLK
41 SATA_RXP 42 SMB_DATA
43 SATA_RXN 44 NC
45 GND 46 NC
47 SATA_TXN 48 NC
49 SATA_TXP 50 NC
51 GND 52
NC
53 NC 54
NC
55 NC 56 NC
57 GND 58 NC
59 NC 60 NC
61 NC 62 NC
63 NC 64 NC
65 NC 66 NC
67 NC 68 NC
69 GND 70 +3V
71 GND 72 +3V
73 GND 74 +3V
75 GND
PIN Signal Name PIN Signal Name
1 GND 2 3VSB
3 USB_P 4 3VSB
5 USB_N 6 NC
7 GND 8 NC
9 NC 10 NC
11 NC 12 NC
13 NC 14 NC
15 NC 16 NC
17 NC 18 GND
19 NC 20 NC
21 NC 22 NC
23 NC 24 NC
25 NC 26 NC
27 NC 28 NC
29 NC 30 NC
31 NC 32 NC
33
GND
34
NC
35
PCIE_TXP
36
NC
37 PCIE_TXN 38 NC
39 GND 40 NC
41 PCIE_RXP 42 NC
43 PCIE_RXN 44 NC
45 GND 46 NC
47 PCIE_CLKP 48 NC
49 PCIE_CLKN 50 NC
51 GND 52 PLT_RST#
53 CLKREQ# 54 BT_DISABLE#
55 WAKE# 56 WLAN_DISABLE#
57 GND 58 SMB_DATA
59 NC 60 SMB_CLK
61 NC 62 NC
63 GND 64 NC
65 NC 66 NC
67 NC 68 NC
69 GND 70 NC
71 NC 72 3VSB
73 NC 74 3VSB
75 GND
CCTS#
RRI#
DDSR#
DDTR#
GND
TTXD
DDCD#
1
RRTS#
RRXD
NC
1
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
7 :
System Panel Header (PANEL1)
8 :
Audio Jack (AUDIO1)
9 : USB3.0 Port (USB3_2)
10 :
SATA Power Output Connector (SATA_PWR1)
11 : SATA3 Connector (SATA3_1)
12 : DC-In Jack (DC_IN1)
13 : DisplayPort (DISPLAY1)
14 : Top : DisplayPort (DP2)
Bottom : HDMI Port (HDMI1)
15 : Top : LAN Port (LAN2)
Bottom :
USB3.0 Port (USB3_3)
16 : Top : LAN Port (LAN1)
Bottom :
USB3.0 Port (USB3_1)
Back Side :
Fan Connector Power Button
* This motherboard supports RS232/422/485 on COM1 port. Please
refer to below table for the pin denition. In addition, COM1 port
(RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Conguration. You may refer to our user manual for
details.
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD TX+ RTX+
3 TXD RX+ N/A
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 N/A N/A N/A
10 N/A N/A N/A
COM1 Port Pin Denition
+3V
GND
+5V
GND
+5V
FAN_SPEED_CONTROL
FAN_SPEED
P/ N: 15G06M066000AK V1.0
*15G06M066000AK*
