M2-SATA-4P

Package Contents

•

1 x Screw (M2*2)

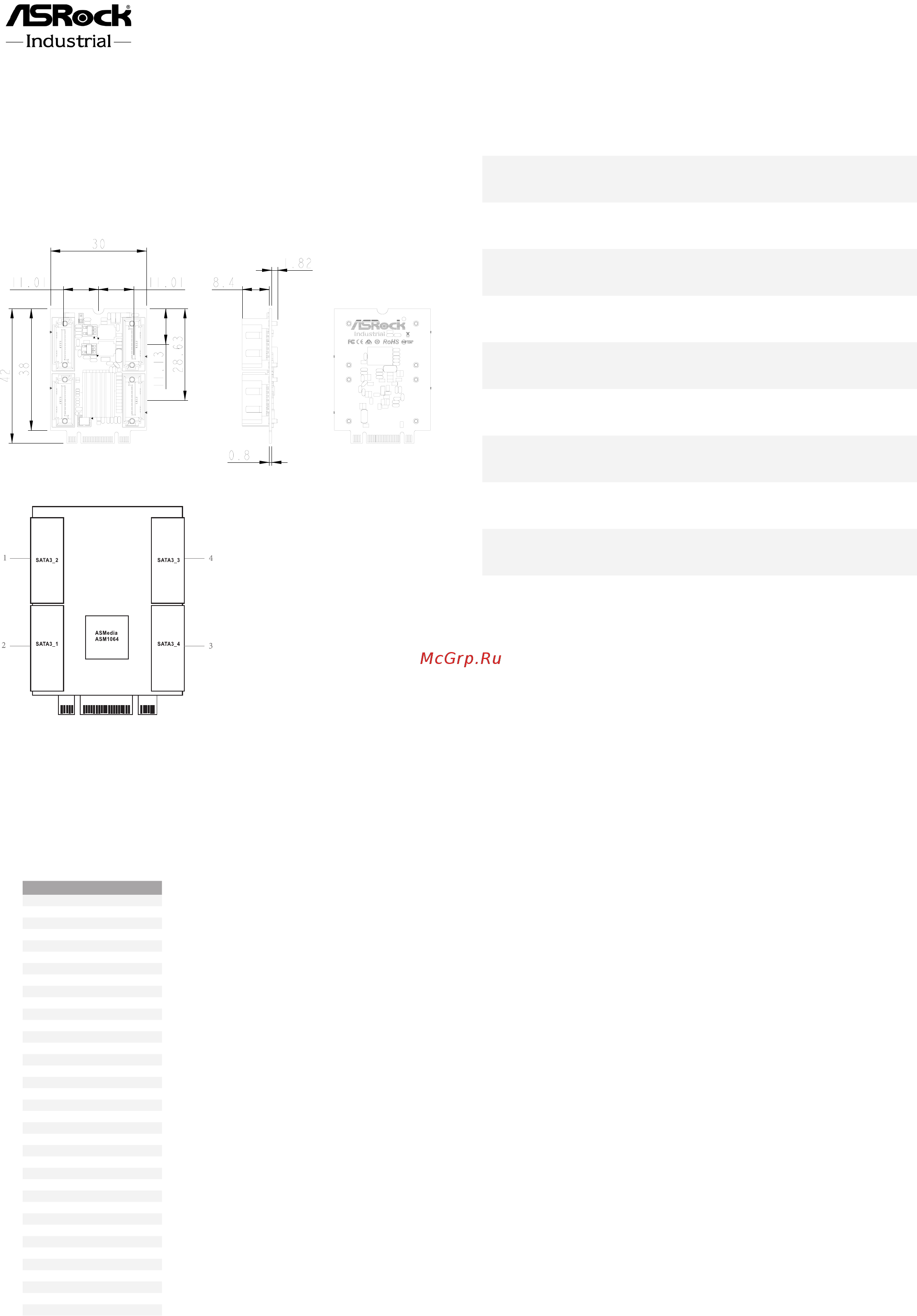

Mechanical Drawing

Card Layout

Jumpers/Headers Denition

1. SATA3 Connector (SATA3_2)

2. SATA3 Connector (SATA3_1)

3. SATA3 Connector (SATA3_4)

4. SATA3 Connector (SATA3_3)

* M.2 Socket

Specications

Function

•

M.2 PCIE x1 to 4 x SATA3 card

Form Factor

•

M.2 3042-B-M

Controller / Major IC

•

ASM1064

Input I/F

•

PCI Express3.0

Output I/F

•

SATA3

Output connector

•

SATA 7pin x 4

TDP

•

0.847W

Dimensions (W x L x H/mm)

•

30 x 42 x 9.2

Temperature

•

0ºC ~ 60ºC

Environment

•

-40° C ~ 85° C

PIN Signal PIN Signal

1 GND 2 3.3V

3 GND 4 3.3V

5 N/C 6 N/C

7 N/C 8 N/C

9 GND 10 N/C

11 N/C 12 3.3V

13 N/C 14 3.3V

15 GND 16 3.3V

17 N/C 18 3.3V

19 N/C 20 N/C

21 GND 22 N/C

23 N/C 24 N/C

25 N/C 26 N/C

27 GND 28 N/C

29 N/C 30 N/C

31 N/C 32 N/C

33 GND 34 N/C

35 N/C 36 N/C

37 N/C 38 N/C

39 GND 40 N/C

41 PETXN0 42 N/C

43 PETXP0 44 N/C

45 GND 46 N/C

47 PERXN0 48 N/C

49 PERXP0 50 PERST#

51 GND 52 CLKREQ#

53 PECLKN 54 N/C

55 PECLKP 56 N/C

57 GND 58 N/C

59 N/C 60 N/C

61 N/C 62 N/C

63 N/C 64 N/C

65 N/C 66 N/C

67 N/C 68 N/C

69 N/C 70 3.3V

71 GND 72 3.3V

73 GND 74 3.3V

75 GND
