eDP to LVDS
Package Contents
•
2 x Screws (M3*4)
•
1 x eDP Cable
•
1 x M/B Power Cable
* Make sure to connect two ends of M/B Power Cable to MB_PWR1 and PNL_
PWR1 headers properly.

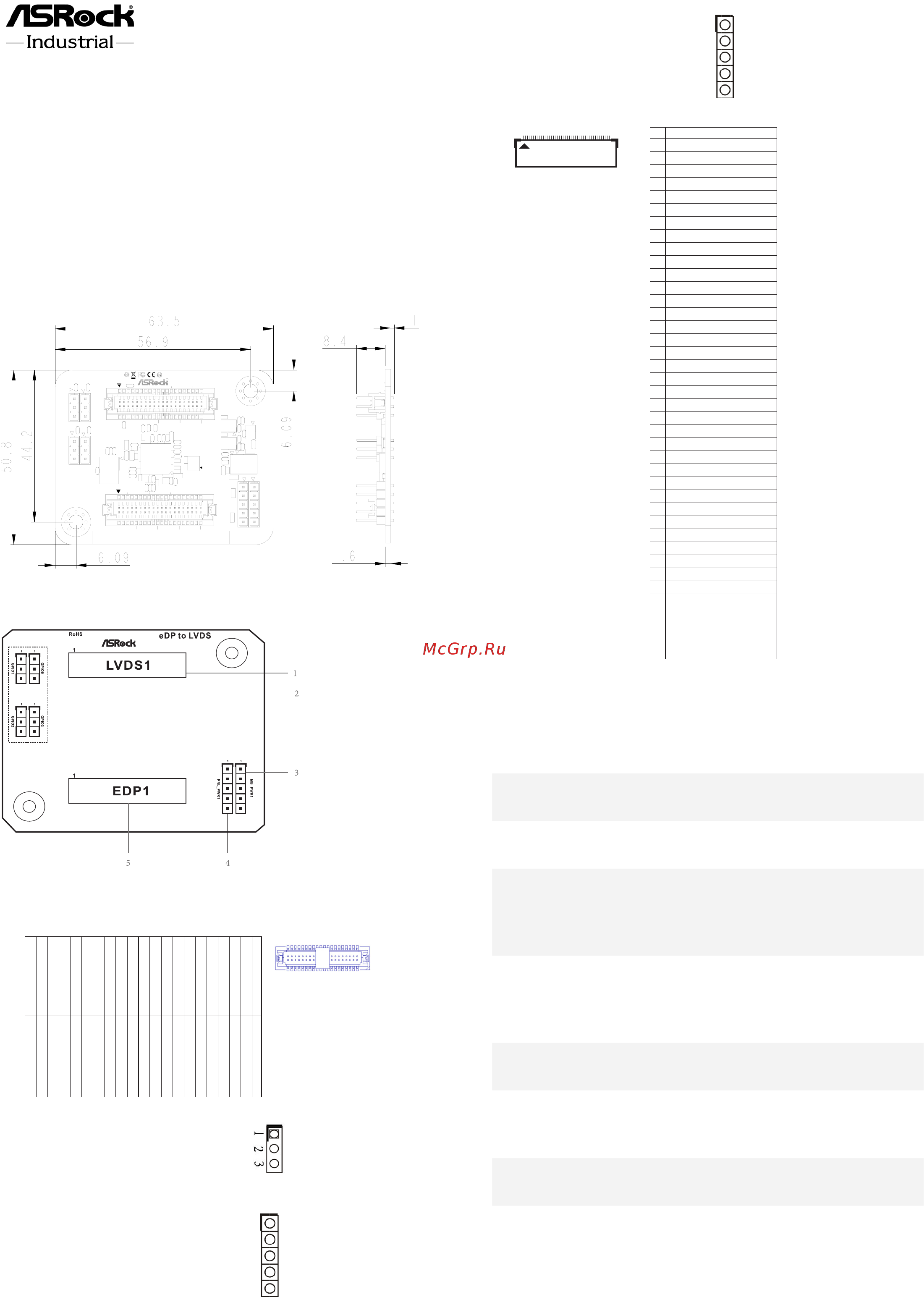

Mechanical Drawing
Card Layout
Jumpers/Headers Denition
1. LVDS Panel Connector (LVDS1)
2. Digital Input / Output Select (GPIO0~3)
1-2 : High
2-3 : Low
3. Motherboard Power Select (MB_PWR1)
Pin1 : +3V
Pin2 : LCD_VCC
Pin3 : +5V
Pin4 : LCD_VCC
Pin5 : +12V
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 GND
5 NA 6 LVDS_A_DATA0#
3 +3.3V 4 NA
1 LCD_VCC 2 LCD_VCC
1
39
40
2
1
4. Panel Power Select (PNL_PWR1)
1-2 : LCD_VCC: +3V
2-3 : LCD_VCC: +5V
4-5 : LCD_VCC: +12V
5. eDP Connector (EDP1)
Specications
1
PIN Signal Name
1 NA
2 GND
3 eDP_TX#3_CON
4 eDP_TX3_CON
5 GND
6 eDP_TX#2_CON
7 eDP_TX2_CON
8 GND
9 eDP_TX#1_CON
10 eDP_TX1_CON
11 GND
12 eDP_TX#0_CON
13 eDP_TX0_CON
14 GND
15 eDP_AUX_CON
16 eDP_AUX#_CON
17 GND
18 LCD_VCC
19 LCD_VCC
20 LCD_VCC
21 LCD_VCC
22 NA
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD_CON
28 GND
29 GND
30 GND
31 GND
32 CON_LBKLT_EN
33 CON_LBKLT_CTL
34 SMB_DATA
35 SMB_CLK
36 LCD_BLT_VCC
37 LCD_BLT_VCC
38 LCD_BLT_VCC
39 LCD_BLT_VCC
40 NA
EDP1
1 40
Function
•
eDP to LVDS
Form Factor
•
Customizes
Controller / Major IC
•
CHRONTEL CH7511B
Input I/F
•
2 lanes eDP input
•
+3V, +5V, +12V input to select
Panel power
Output I/F
•
2 channel LVDS signals output
•
LVDS resolution up to 1920 x
1080
Output connector
•
40pin 1.25mm pitch
Dimensions (W x L x H/
mm)
•
50 x 63 x 2
Operating Temperature
•
0ºC ~ 60ºC
Storage Temperature
•
-40° C ~ 85° C
