Chapter 2 Product Overview
is chapter provides diagrams showing the location of important components of
the iBOX-Whiskey Lake/Ryzen.

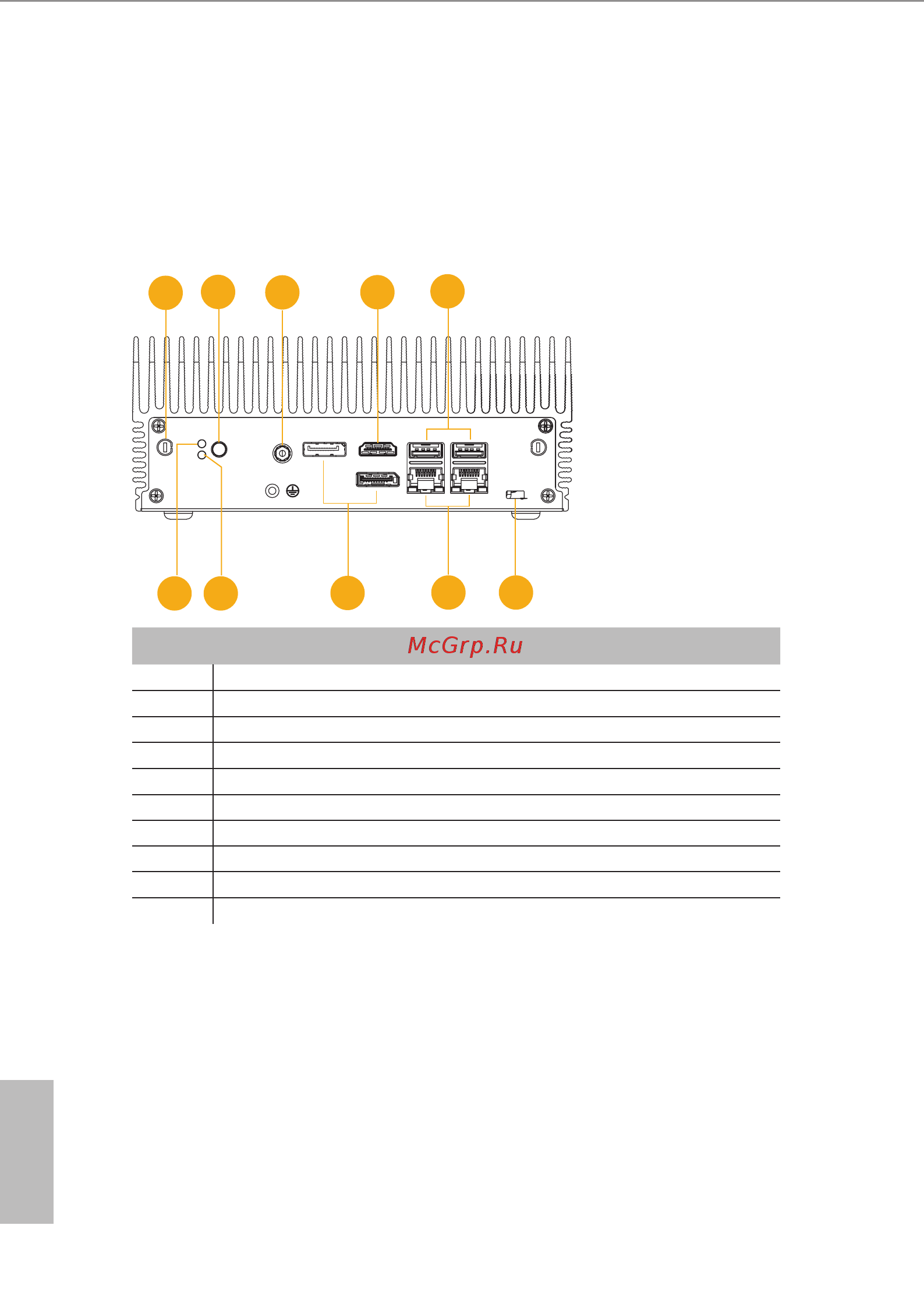

2.1 Front View
No. Description
1 Antenna Port
2 Power Button
3 DC Jack (DC IN)
4 HDMI Port
5 2 x USB 3.0 Ports (Type A)
6 HDD LED
7 Power LED
8 2 x Display Ports
9 2 x RJ-45 Ports
10 Kensington Lock Slot
1
2
3
4
5
6 7
8
9 10
