ASRock iBOX-R1000 [18/69] How to install the 2 inch hard drive
![ASRock iBOX-R1000 [18/69] How to install the 2 inch hard drive](/views2/1693802/page18/bg12.png)
12 13
English

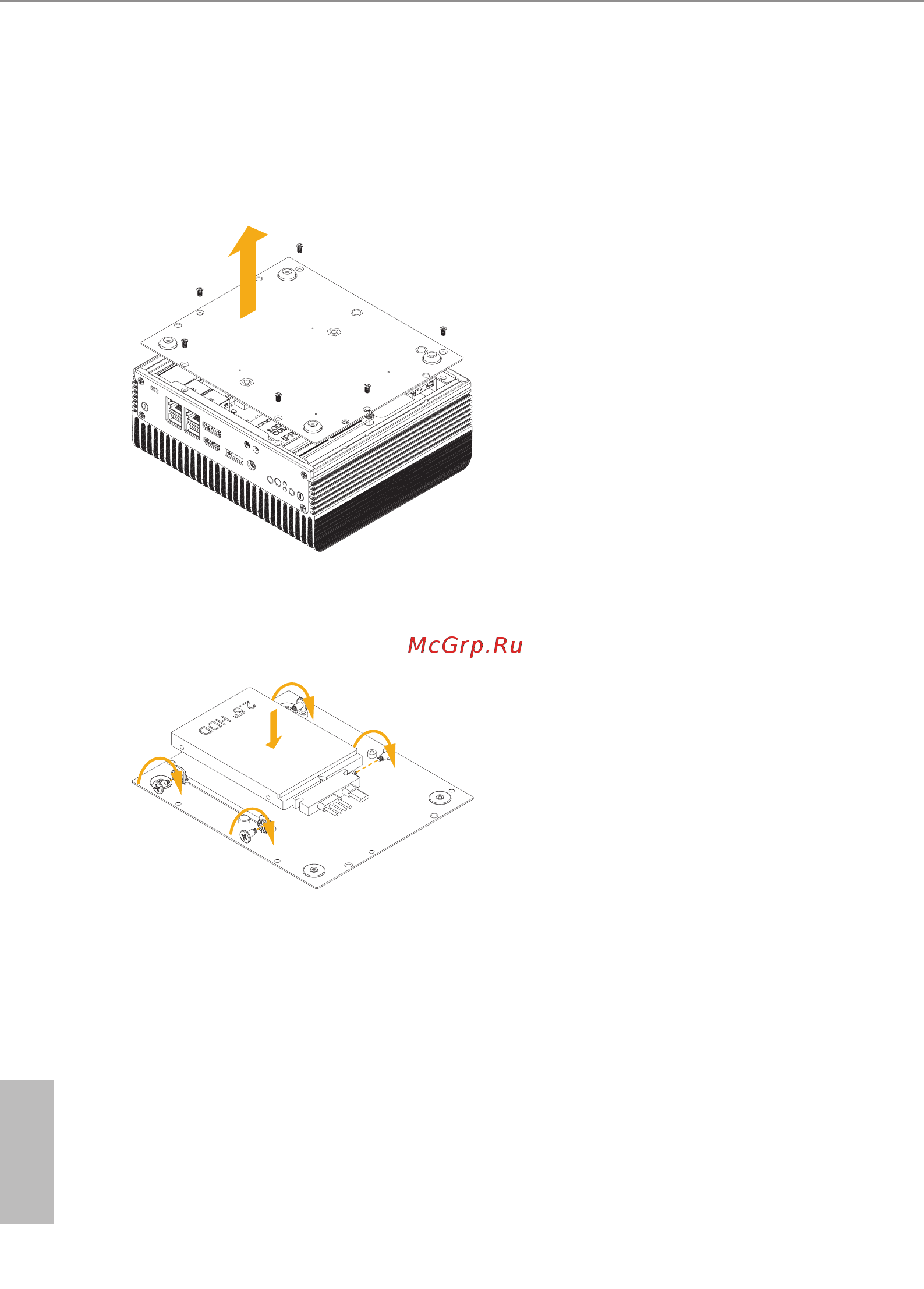

3.4 How to Install the 2.5-inch Hard Drive
1. Remove the four screws on the bottom case. en li up and remove the bottom panel.
2. Attach the HDD cage to the bottom panel and secure it using the four screws.
en connect the SATA cable to the HDD.
