Operation Manual ED81-640
20 Photocatalytic Air Purifiers
9

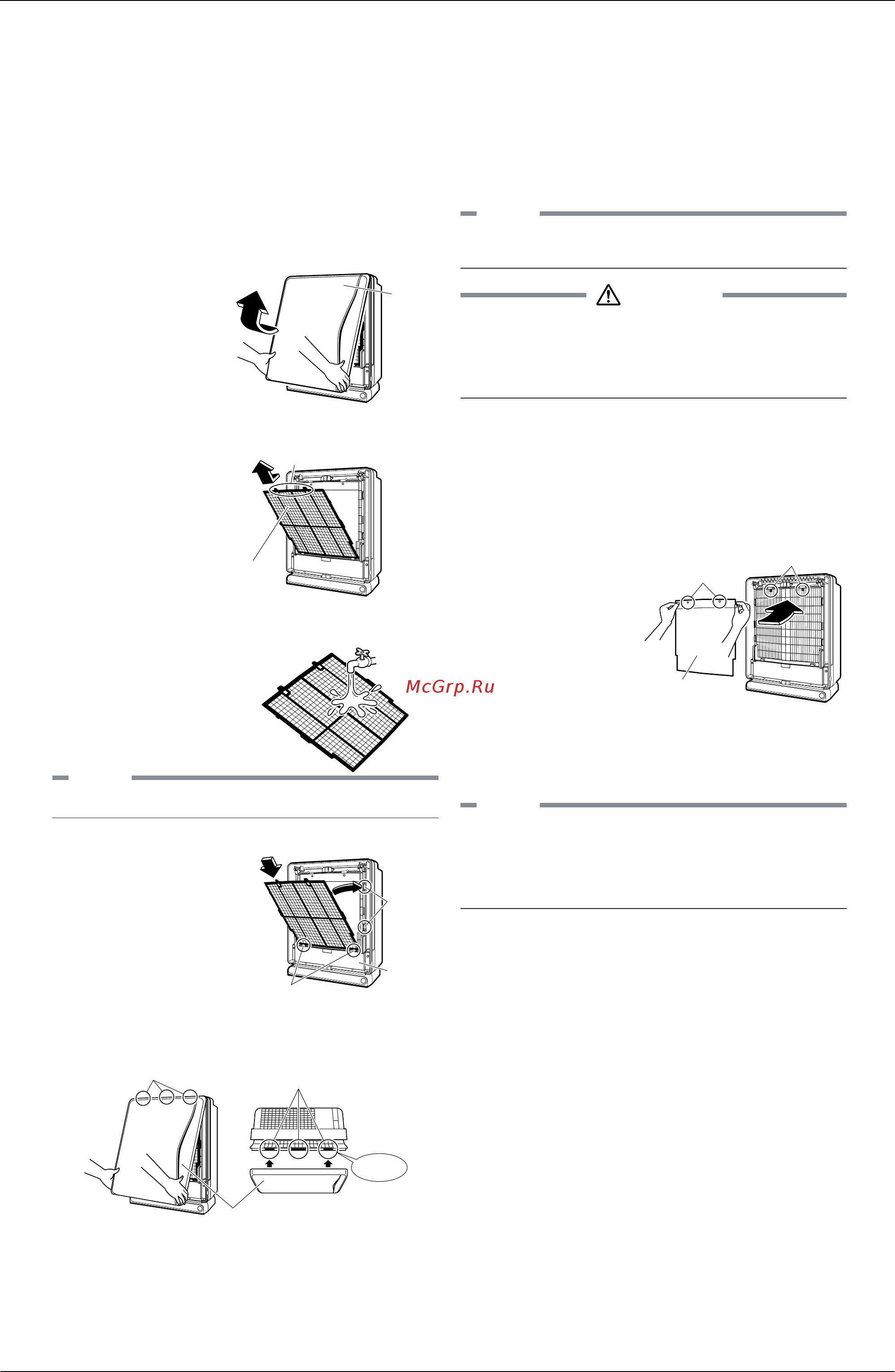

Care and Cleaning
Cleaning the pre-filter
It is recommended to clean the pre-filter every two weeks.
1. Remove the front panel.
• Lay your finger to the
dent at bottom of the
main unit, hold bottom
part of the panel and
then pull it up.
2. Remove the pre-filter.
• Remove by pulling out in
front while holding the
tabs on top of the pre-
filter.
3. Clean the pre-filter.
• After using a vacuum
cleaner to remove any
dust, clean with water.
• If it is very dirty, use a
soft brush or a neutral
cleaner to clean then dry
well in the shade.
NOTE
• “Cleaning sign” may blink if any droplet remains.
4. Install the pre-filter in its original position.
• Hook the bottom part of
the pre-filter on the
bottom hooks
(2 locations) of the
plasma ionizer and then
insert it into the left and
right hooks (4 locations).
5. Restore the front panel.
• Hook the top hooks (3 locations) of the front panel on the grooves
on top of the main unit and then close the panel.
NOTE
• Securely close the panel. Failing to do so may cause activation of
the safety switch and out of unit operation.
•
Do not dry at a location directly exposed to the sun.
•
Do not clean with water hotter than 50˚C.
•
Do not burn with fire.
Color changes or deformation may occur and the unit may become
unusable.
Replacing the bio-antibody filter
(The bio-antibody filter should be replaced
around once a year.)
1. Remove the front panel.
(See the left figure.)
2. Remove the pre-filter.
(See the left figure.)
3. Replace the bio-antibody filter with new one.
• Remove a used bio-
antibody filter from the
hooks (2 locations) on
top of the plasma ionizer.
• Hook the holes
(2 locations) of a new
bio-antibody filter on the
hooks (2 locations) on
top of the plasma ionizer.
4. Install the pre-filter in its original position.
(See the left figure.)
5. Restore the front panel.
(See the left figure.)
NOTE
Replacing the bio-antibody filter
•
Contact your dealer for replacement bio-antibody filter.
• Life of the bio-antibody filter is about 1 year after opening.
• If you do not use the bio-antibody filter for a long time, store it away
from direct sunlight without opening.
Pull out in front to remove.
Pre-filter
Left and
right
hooks
(4 locations)
Hooks
(2 locations)
Plasma
ionizer
Top grooves (3 locations)
Top hooks (3 locations)
Overhead view
Hook
Front panel
Bio-antibody filter
Top hooks (2 locations)
Holes
(2 locations)
CAUTION
Front
panel
