SiE-64 General Description
Information 5
1.3 Tips for Appropriate Use
To remove house dust, set the unit near to the floor.
To remove cigarette smoke, install the unit high on a wall.

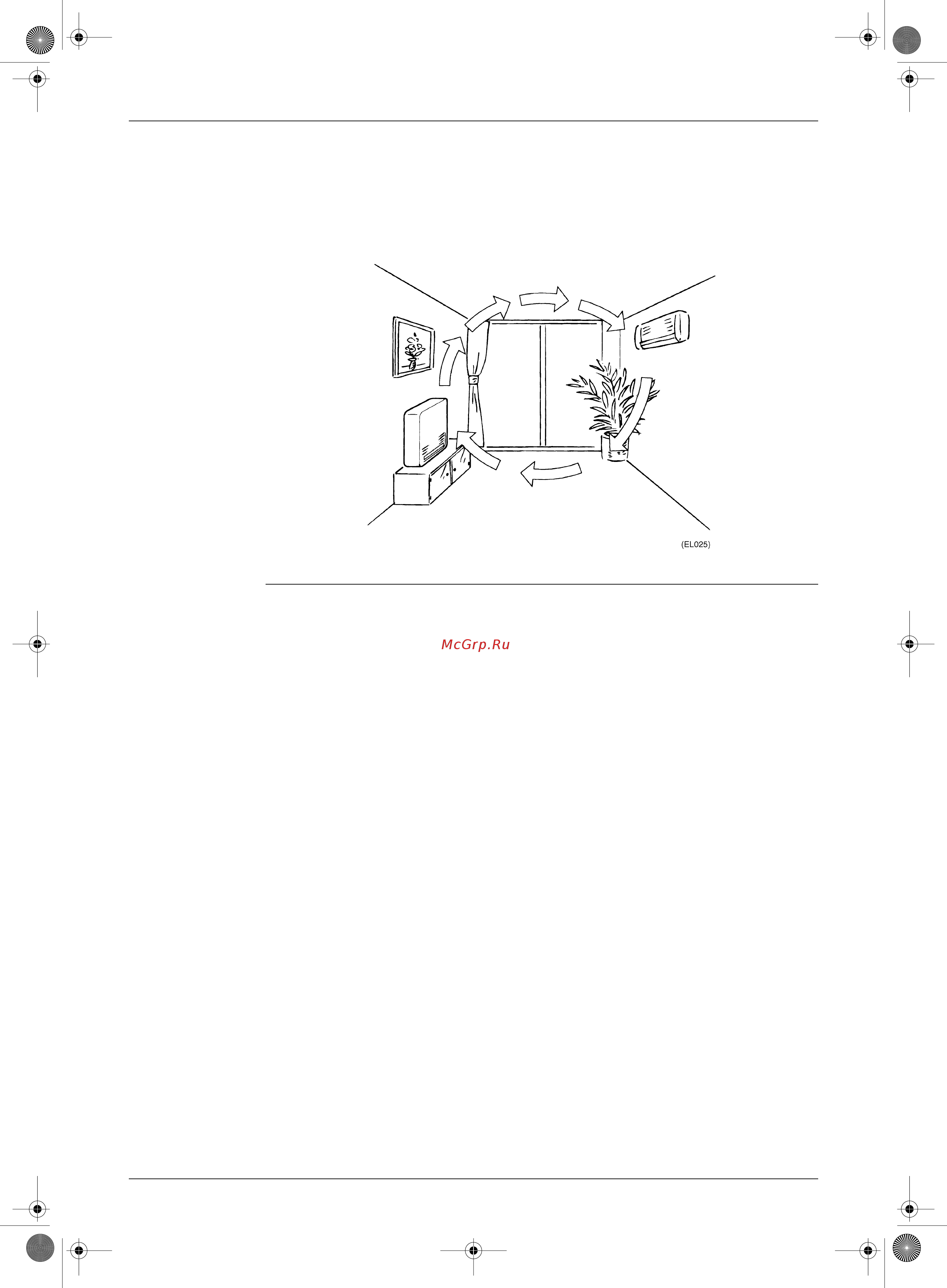

Installing the air cleaner as shown below improves air circulation in the room.
While heating or coollng the room, air can be cleaned and temperature fluctuation minimized.
Set Operating Mode
as Needed.
Auto
Fan speed is controlled automatically depending on air quality. This mode ensures the most efficient
operation.
Manual (Fan speed)
Manual (Fan speed) - The unit runs independent of air quality. This mode is effective for regularly removing
orders not readily detected by the odor sensor or quickly eliminating house dust in room air.
Use the OFF timer appropriately to ensure the best room air quality when needed.
If the OFF timer is set when leaving the room, the air is clean when you return. When cleaning the room,
set fan speed to “High”.
