2. Names and Functions of the Operating Section

2.1 Names and Functions of Parts

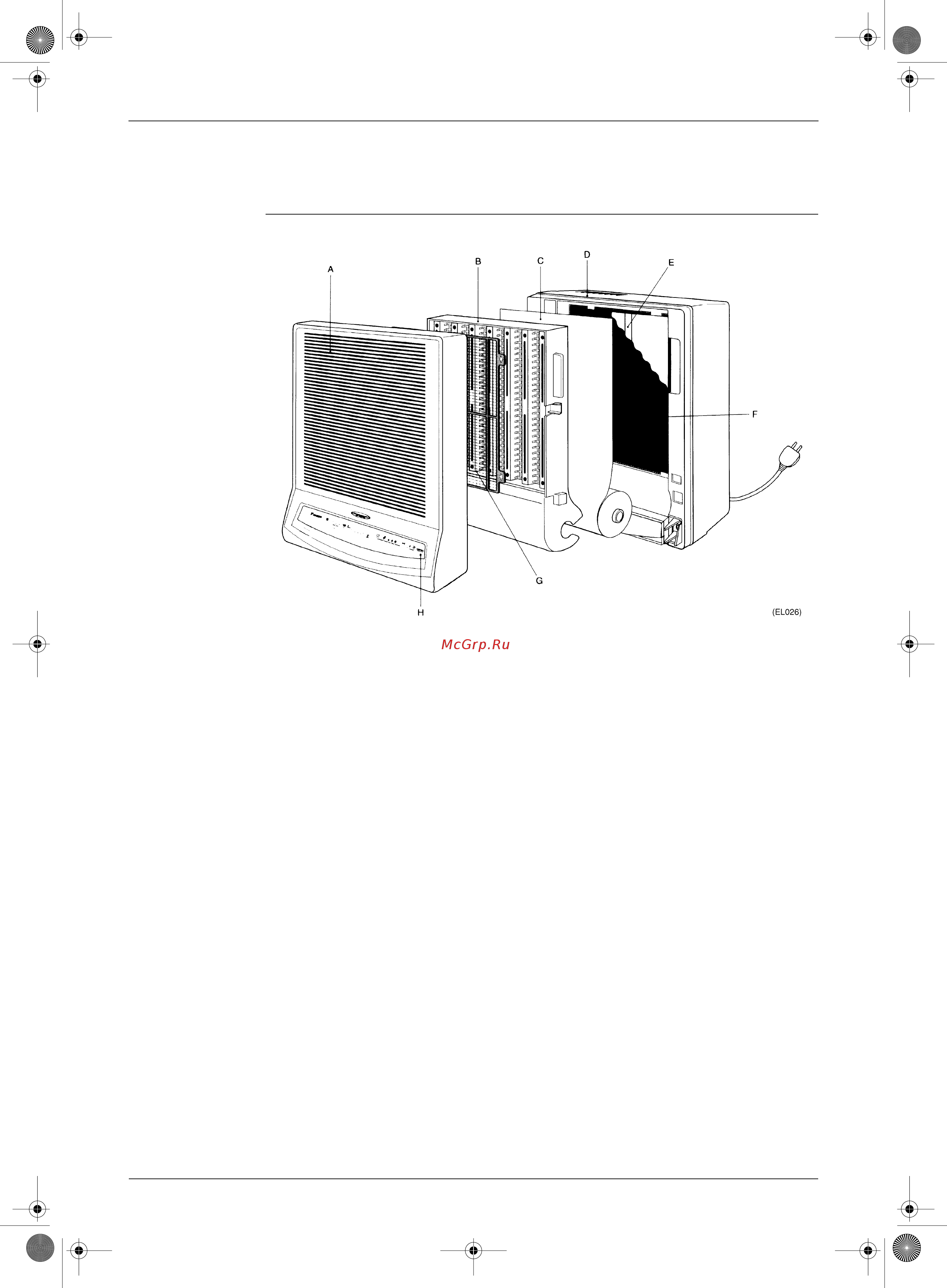

Illustration

A Front panel

B Ion filter (roll) case

Positively (+) charges minute dust particles not trapped by the prefilter.

C Ion filter roll

Working on the principle of electrostatic attraction, the negatively (-) charged filter catches and removes the

positively (+) charged dust.

D Air intake

E Inverter lamp

Activates the photocatalyst by illuminating it with light.

F Photocatalyst

Removes odors, bacteria and viruses when activated by the inverter lamp.

Do not subject the photocatalyst to excessive force. The inverter lamp located behind it will break.

G Prefilter

Removes comparatively large dust particles.

H Indicator lamps

Display operating status. See page 19.
