2.5 Conguration

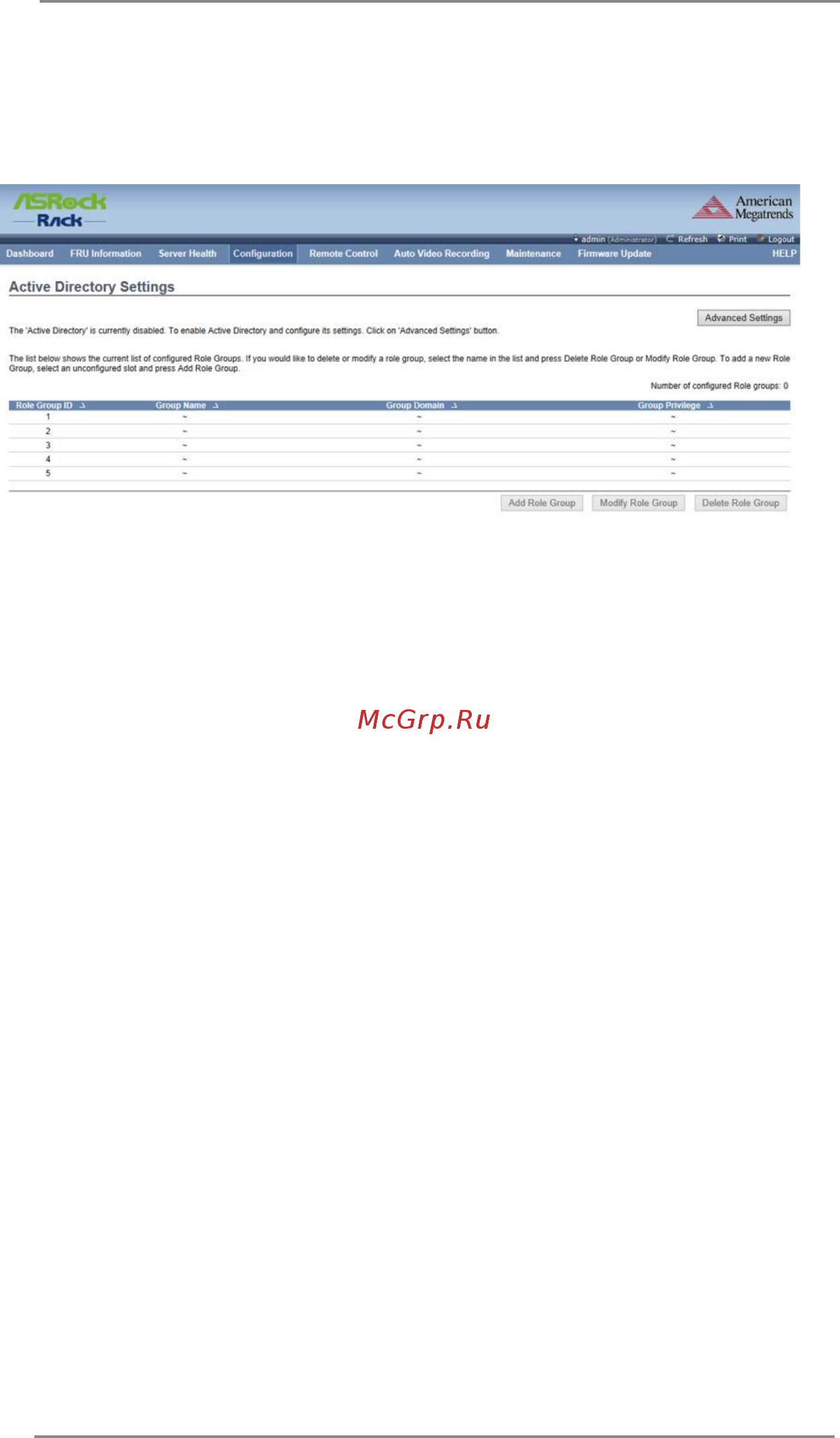

2.5.1 Active Directory Settings

The displayed table shows current configured Role Groups and the

available slots. You can modify, add or delete role groups from here. Group

domain can be the AD domain or a trusted domain. Group Name should

correspond to the name of an actual AD group. To view the page, you must

be at least a User. To modify or add a group, you must be an Administrator.

NOTE: Free slots are denoted by “~” in all columns for the slot.

Advanced Settings

Click this option to configure the Active Directory Settings. Options are

Enable Active Directory Authentication, User Domain name, Time Out and

up to three Domain Controller Server Addresses.

Add Role Group

Select a free slot and click ‘Add Role Group’ to add a new role group to the

device. Alternatively, double click on a free slot to add a role group.

Modify Role Group

Select a congured slot and click ‘Modify Role Group’ to modify that role

group. Alternatively, double click on the congured slot.

Delete Role Group

Select the desired role group to be deleted and click ‘Delete Role Group’.
