ASRock D1541D4U-2T8R [18/52] Ldap e directory settings

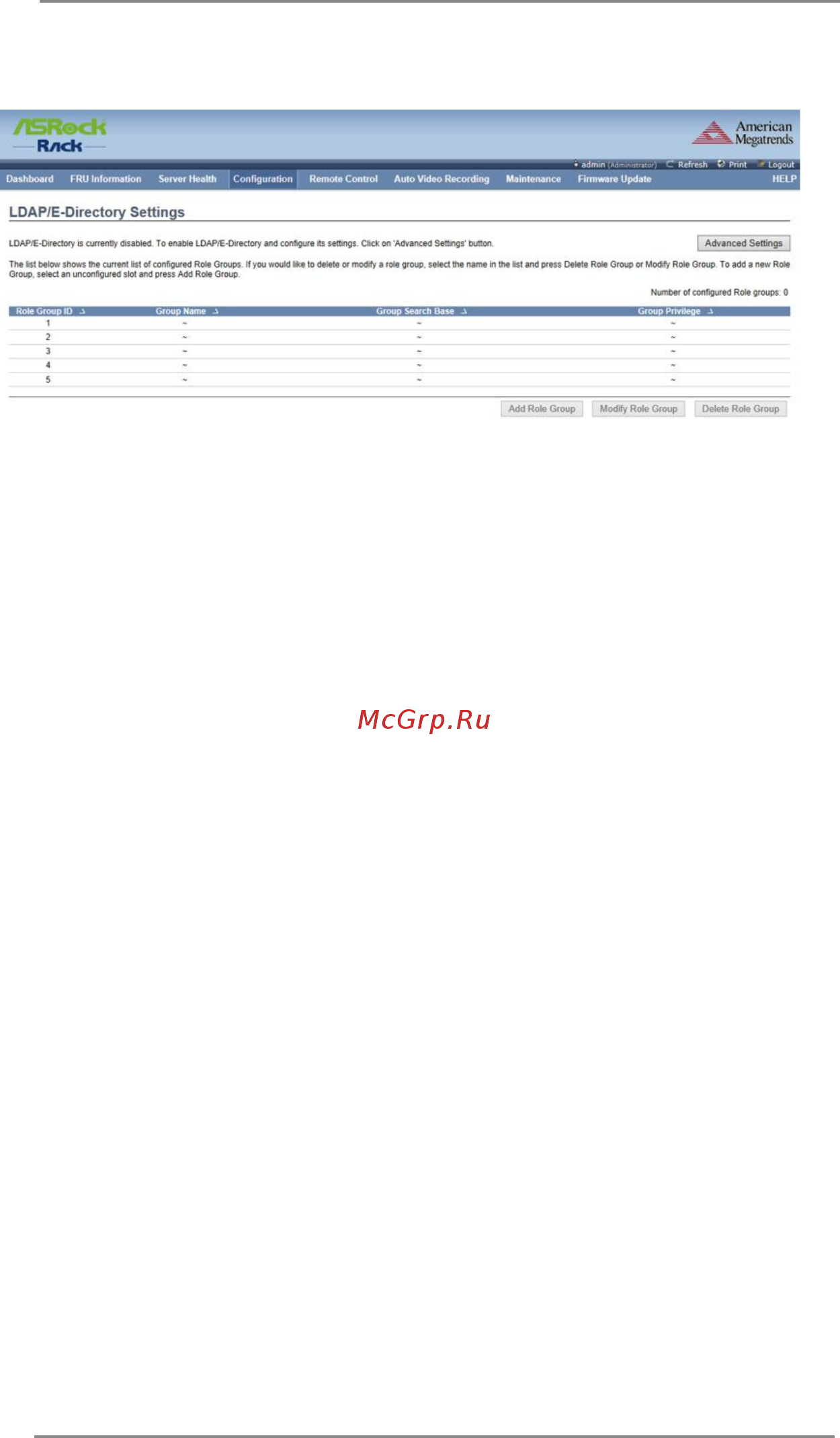

2.5.5 LDAP/E-Directory Settings

The displayed table shows the configured Role Groups and available

slots. You can modify or add/delete role groups from here. The Group

Search Base can be any path from where a Group is located to the Base

DN. The Group Name should correspond to the name of an actual LDAP/

E-Directory group. To view the page, the user must at least be a User. To

modify or add a group, the user must be an Administrator.

NOTE: Free slots are denoted by “~” in all columns for the slot.

Advanced Settings

Click this option to congure LDAP/E-Directory Advanced Settings. Options

are Enable LDAP/E-Directory Authentication, IP Address, Port, Bind DN,

Password and Search base.

Add Role Group

Select a free slot and click ‘Add Role Group’ to add a new role group to the

device. Alternatively, double click on a free slot to add a role group.

Modify Role Group

Select a congured slot and click ‘Modify Role Group’ to modify that role

group. Alternatively, double click on the congured slot.

Delete Role Group

Select the desired role group to be deleted and click ‘Delete Role Group’.
