ASRock EPYCD8-2T [12/66] System information

Types of the thresholds:

• Lower Non-Recoverable (LNR)

• Lower Critical (LC)

• Lower Non-Critical (LNC)

• Upper Non-Recoverable (UNR)

• Upper Critical (UC)

• Upper Non-Critical (UNC)

3.5 System Information

This group of pages allows you to view system information.

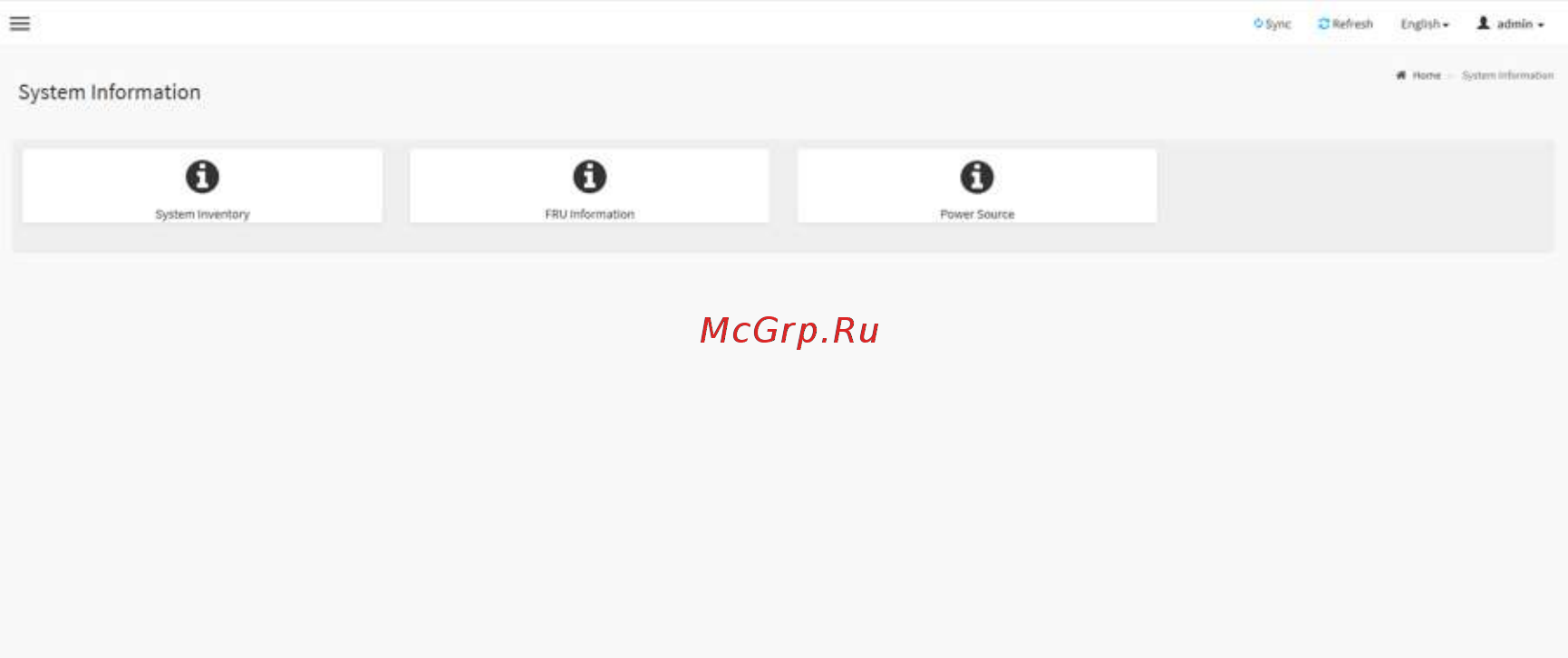

System Information Page

3.5.1 System Inventory

This page displays detailed information of active devices. Select a group to view more

information.
