ASRock EPYCD8-2T [21/66] Active directory settings

3.7.2.2 Active directory Settings

An active directory is a directory structure used on Microsoft Windows based

computers and servers to store information and data about networks and domains.

Active Directory allows you to configure the Active Directory Server Settings. The

displayed table shows any configured Role Groups and the available slots. You can

modify, add or delete role groups from here. Group domain can be the AD domain or

a trusted domain. Group Name should correspond to the name of an actual AD

group.

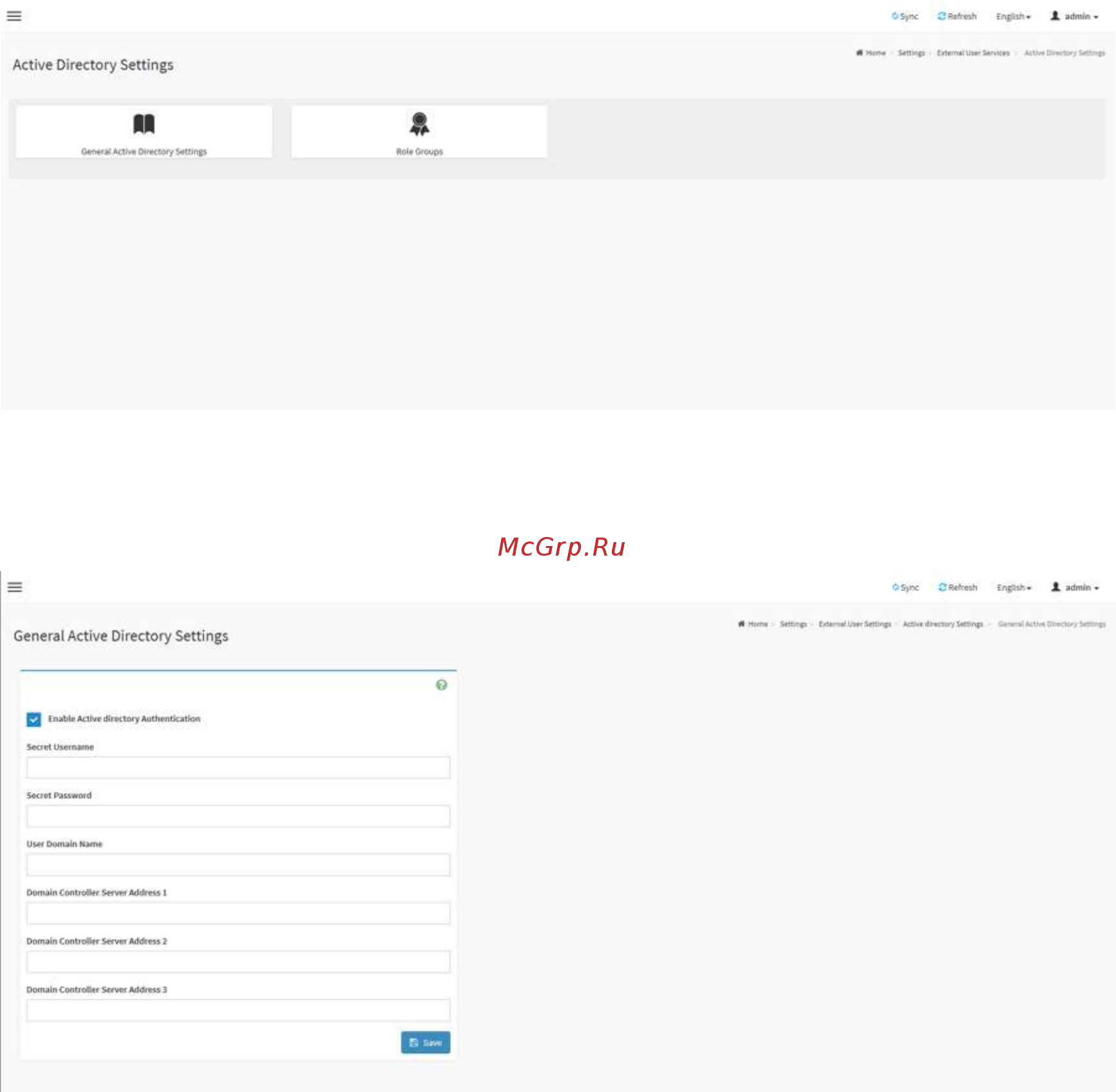

Active directory Settings Page

General Settings: This page is used to configure Active Directory general settings.

General Settings Page

Enable Active directory Authentication: Check box to enable Active Directory

Authentication.

Secret User Name: The Username of the Active Directory Server.

Содержание

Ipmi configuration guide 1
Table of contents 2
Introduction 4
Terminology 4
The user guide is for system administrators to remotely access computers with bmc baseboard management controllers and ipmi intelligence platform management interface system administrators may easily monitor system conditions or manage issues of remote computers via the web based interface a web browser on the internet 4
Html5 web gui 5
Logging in to web using ipmi user 5
Certificates to import the certificate 6
Chrome using settings to open manager certificates to import the certificate 6
Logging in to web using ssl mutual authentication 6
Login to ipmi using the link https ip address mutual port number 6
You can also login to the ipmi via ssl mutual authentication without entering username password before you login as ssl mutual authentication ensure that 1 upload ca certificate pem server certificate pem and server private key pem to bmc 2 install the client certificate p12 into the browser 6
Chrome latest version ie11 and above firefox with limited support 7
Client machine with 8gb ram if the client machine has 4gb ram there will be lag in video keyboard mouse functionality 7
Supported browsers 7
System requirements 7
Menu bar 8
Web gui overview 8
Dashboard 9
Firmware information 9
Quick button and logged in user 9
Event logs 10
Network information 10
Sensor 10
Sensor monitoring 10
Sensor detail 11
System information 12
System inventory 12
Fru information 13
Fru page 13
System inventory page 13
This page displays the fru information select a fru device id from the fru information section to view the details of the selected device 13
Available fru devices 14
Board information 14
Chassis information 14
Product information 14
Ipmi event log 15
Logs reports 15
Power source 15
Data time 17
Settings 17
Video log 17
External user services 18
General settings 19
Ldap e directory settings 19
Role groups 20
Active directory settings 21
General settings 21
Radius settings 22
Role groups 22
Advanced radius settings 23
General radius settings 23
Kvm mouse setting 24
Log settings 25
Log settings policy 25
Vmedia instance settings 28
Remote session 29
Network ip settings 30
Network settings 30
Dns configuration 32
Pam order settings 33
Pam order settings page pam authentication order it shows the list of available pam modules supported in bmc click and drag the required pam module to change its order 34
Platform event filter 34
Platform event filter pef provides a mechanism for configuring the bmc to take selected actions on event messages that it receives or has internally generated these actions include operations such as system power off system reset as well as triggering the generation of an alert 34
Event filter configuration 35
Event filters 35
Alert policies 37
Alert policies 39
Lan destinations 39
Lan destination configuration 40
Services 41
View the active sessions 41
Edit the existing service 42
Smtp settings 43
Ssl settings 44
View ssl certificate 44
Generate ssl certificate 45
Upload ssl certificate 46
System firewall 47
Add firewall settings 48
Existing firewall settings 48
General firewall settings 48
Existing ip rules 49
Ip firewall rules 49
Add ip rule 50
Port firewall rules 50
Add port rule 51
Existing port rules 51
Add a new user 52
User management 52
Modify user 54
Video recording 54
Auto video settings 55
Video trigger settings 55
Pre event video recordings 56
Video remote storage 56
Keep share nic link up 57
Image redirection 58
Remote control 58
Remote media 58
Power control 59
Miscellaneous 60
Post snoop 61
Uid control 61
Backup configuration 62
Maintenance 62
Restore configuration 62
Firmware image location 63
Bios update 64
Firmware update 64
Restore factory defaults 65
Sign out 66
