ASRock EP2C621D8 [43/66] Smtp settings
![ASRock EP2C621D8 [43/66] Smtp settings](/views2/1694424/page43/bg2b.png)
Service Name: Displays service name of the selected slot(read only).
Active: Check the box to enable the service.
Interface Name: Choose any one of the available interfaces from the drop-down list.
Non-secure Port: Configure non secure port number for the service.
Secure Port: Configure secure port number for the service.
Mutual Port: Configure mutual port number for the service.
Enable Timeout: Check the box to enable the timeout function.
Timeout: Configure the session timeout for the service.
Maximum Sessions: Displays the maximum number of allowed sessions for the
service.
3.7.10 SMTP Settings
This is used to configure the SMTP settings of the device.

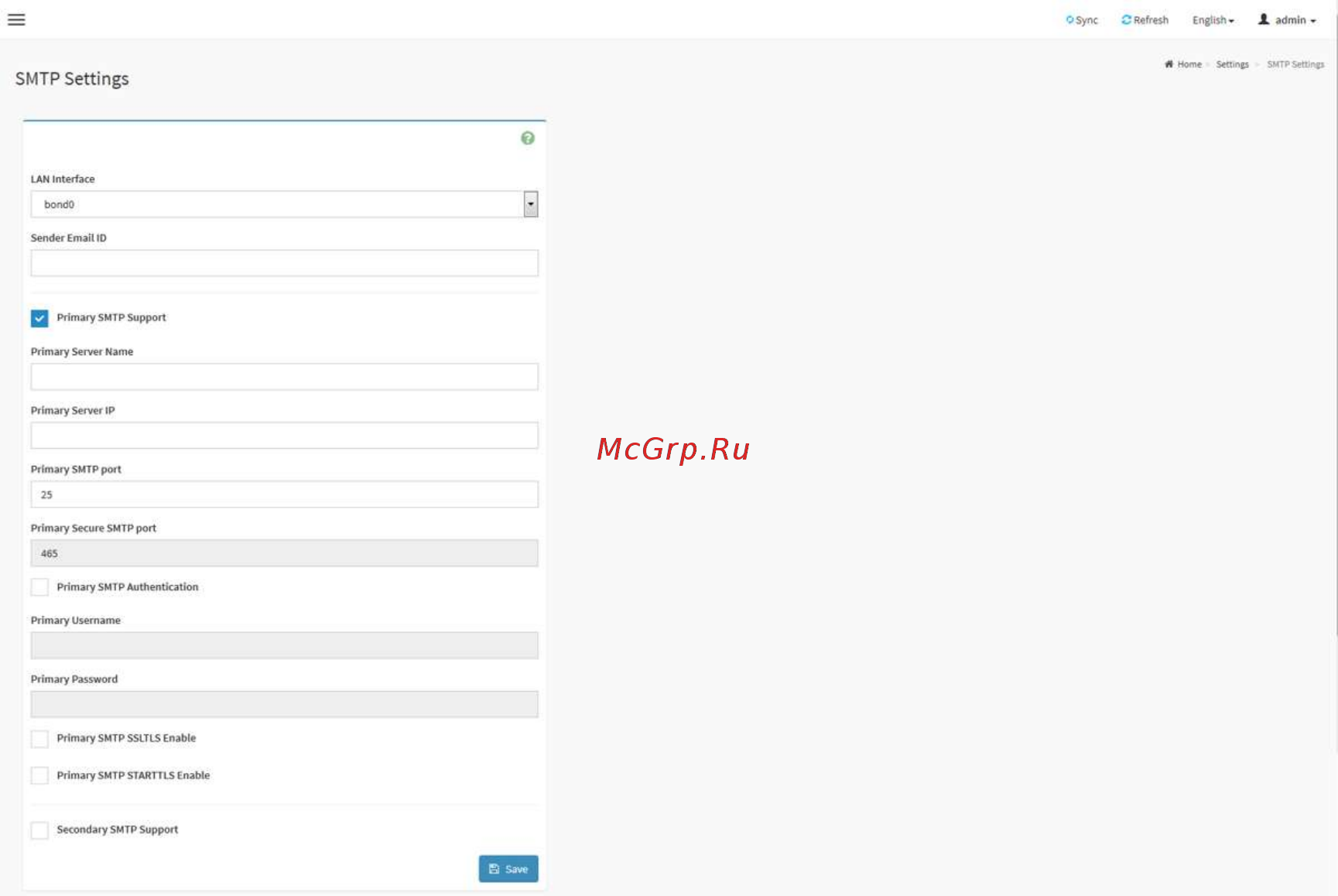

SMTP Settings Page
LAN Interface: Displays the list of LAN channels available.
Sender Email ID: Enter the valid Sender Email ID on the SMTP Server.
Primary SMTP Support: Check the box to enable SMTP support for the BMC.
Primary Server Name: Enter the Machine Name of the SMTP Server.
Primary SMTP IP: Enter the IP address of the SMTP Server.
40
