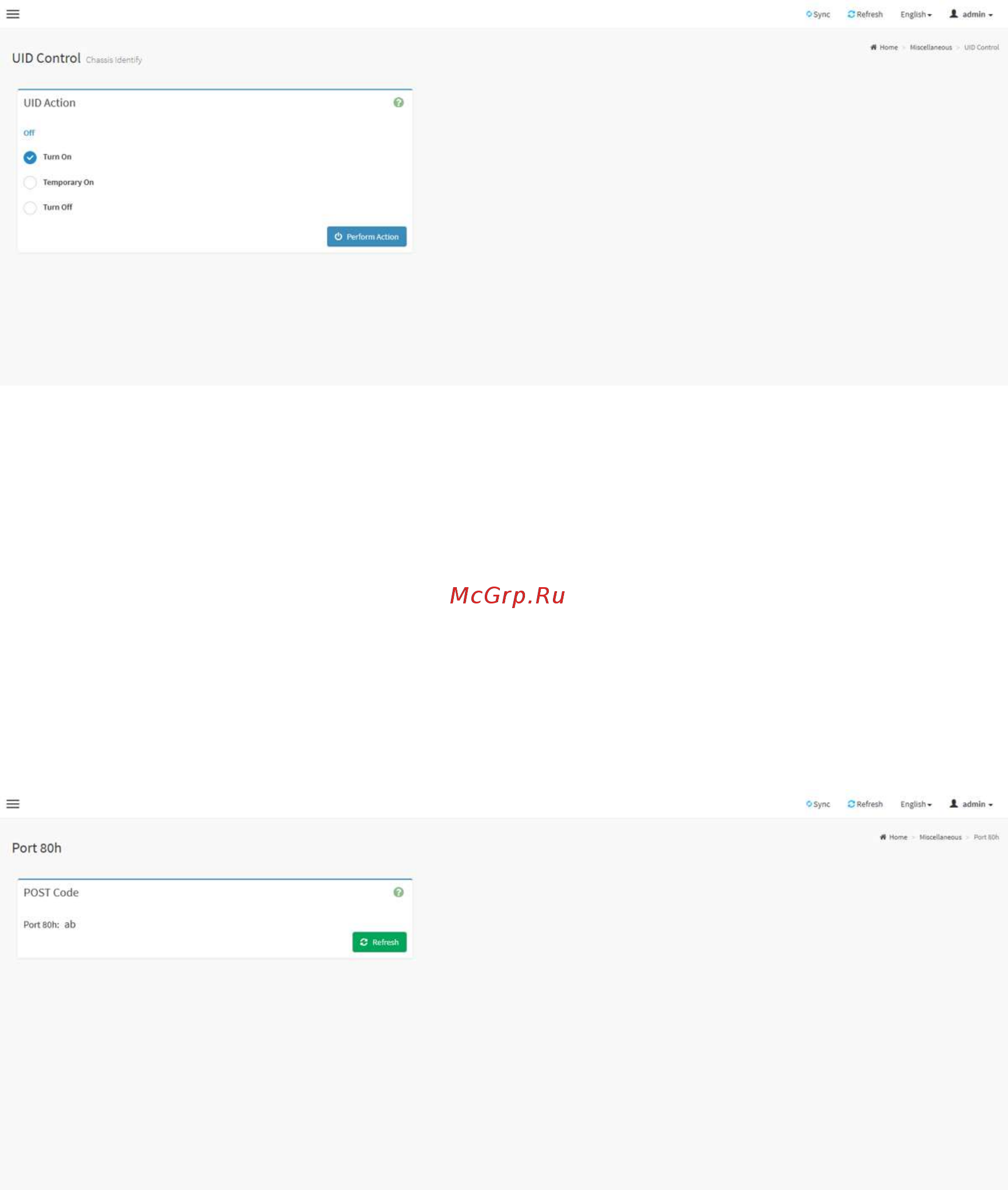

3.11.1 UID Control

This page is used to control the UID of the chassis.

UID Control Page

Trun On: Select this option to turn on UID.

Temporary On: Select this option to temporary turn on UID.(15 sec blink)

Turn Off: Select this option to turn off UID.

3.11.2 Post Snoop

This page is used to display the last POST code of BIOS.

Post Snoop Page

Post 80h: Click Refresh button to get the last POST code of BIOS.(read only)
