19
E3C204

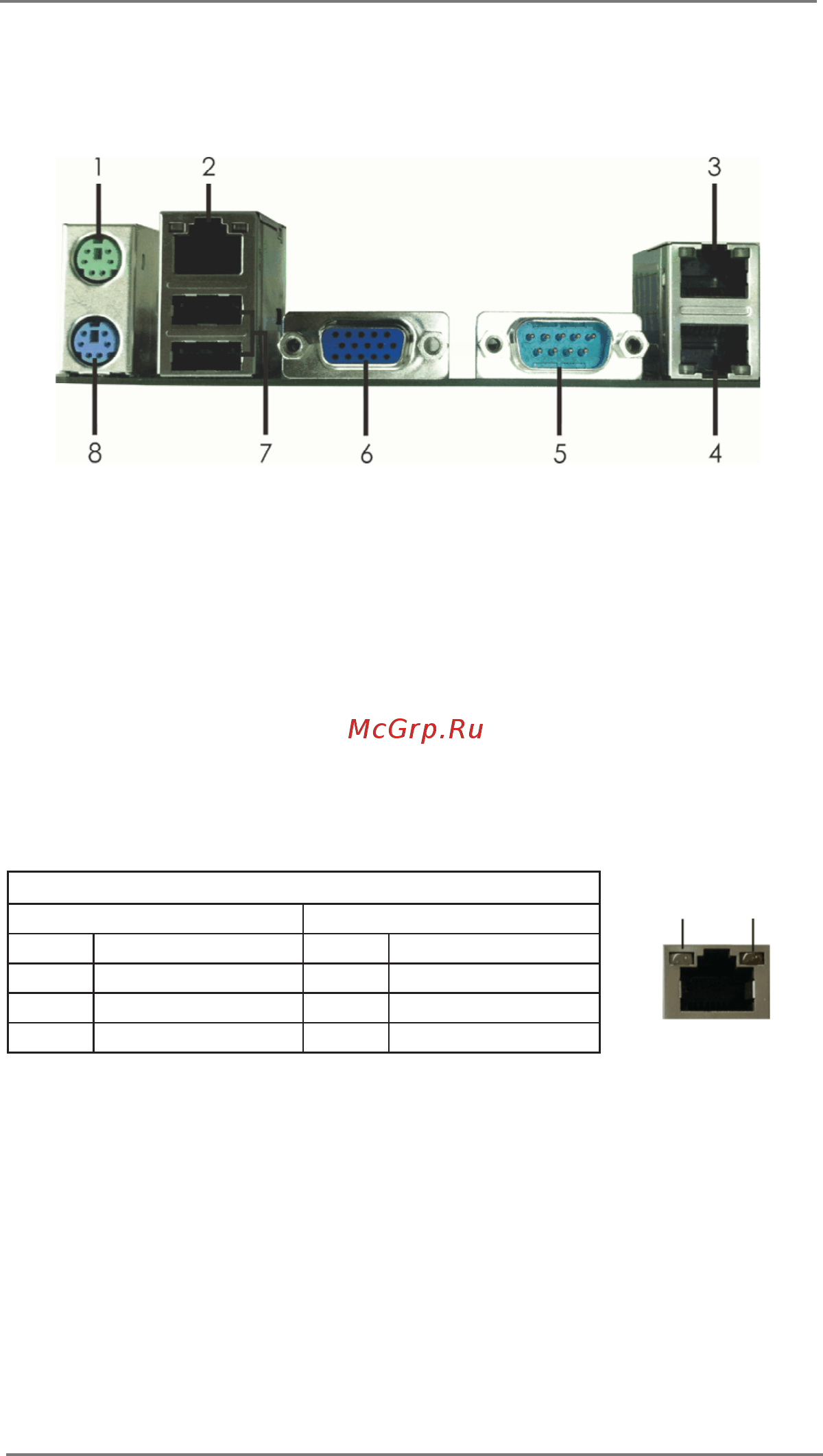

* There are two LEDs on each LAN port. Please refer to the table below for the LAN
port LED indications.
ACT/LINK
LED
SPEED
LED
LAN Port
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On 100Mbps connection Green 1Gbps connection
1 PS/2 Mouse Port (Green)
* 2 Dedicated IPMI LAN Port
* 3 LAN RJ-45 Port (LAN1)
* 4 LAN RJ-45 Port (LAN2)
5 Serial Port (COM1)
6 D-Sub Port (VGA1)
7 USB 2.0 Ports (USB01)
8 PS/2 Keyboard Port (Purple)
