54

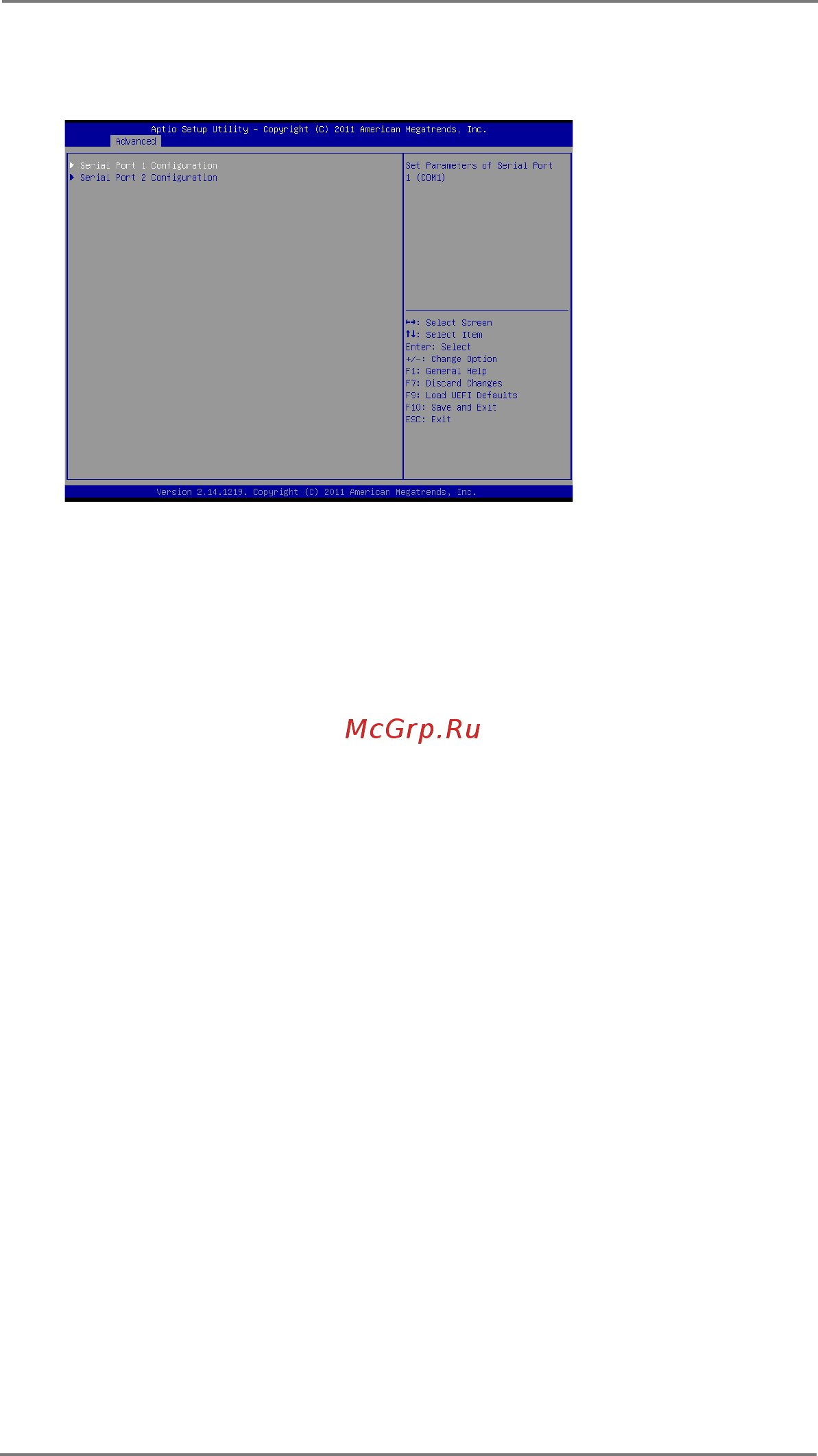

3.3.5 Super IO Conguration
Serial Port 1 Conguration
Use this item to congure the onboard serial port 1.
Serial Port 2 Conguration
Use this item to congure the onboard serial port 2.
