ASRock E3C204 [35/75] Onboard headers and connectors

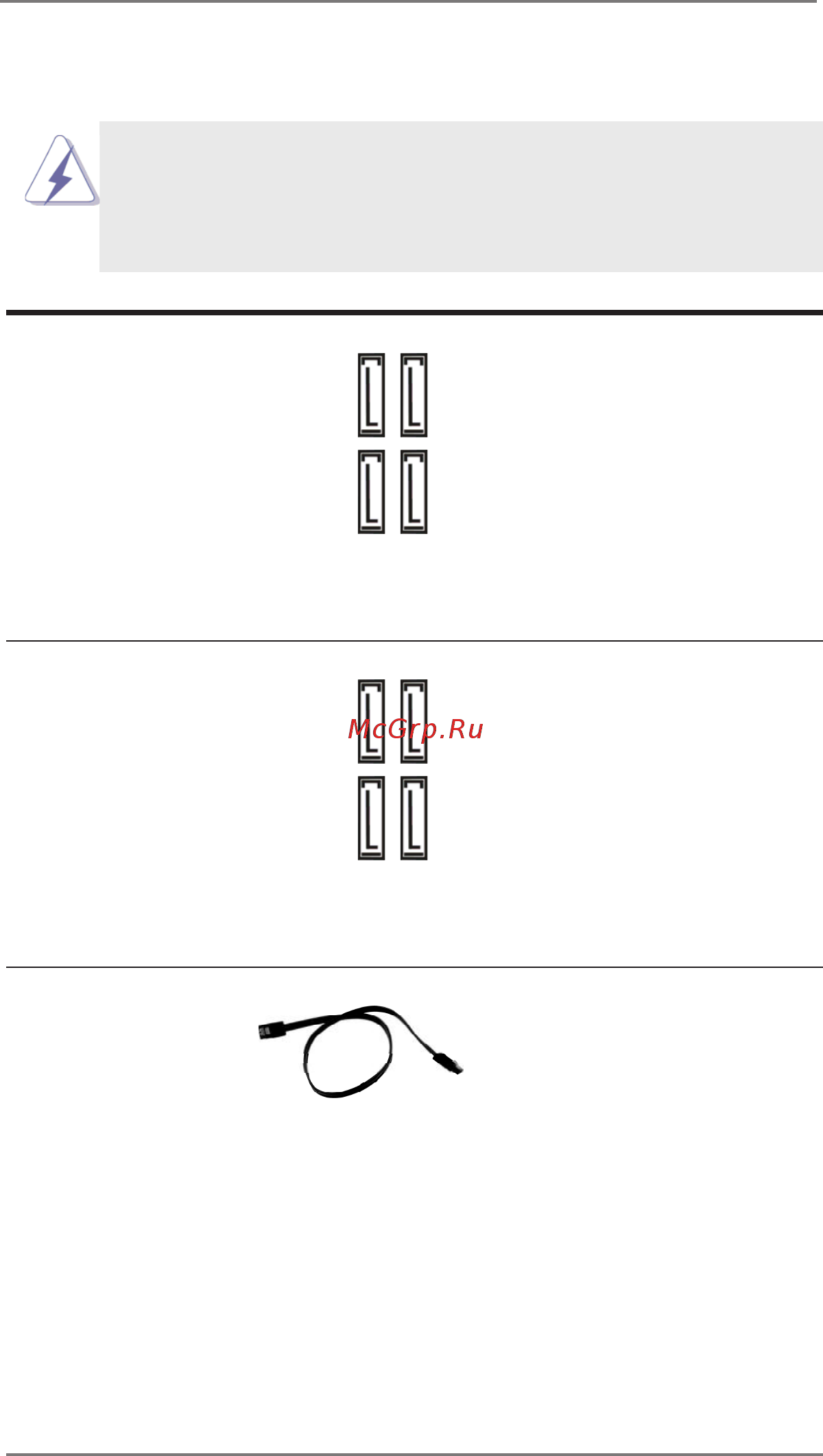

![ASRock E3C204 [35/75] Onboard headers and connectors](/views2/1694727/page35/bg23.png)
35
Serial ATA (SATA)
Data Cable
Serial ATA3 Connectors
(SATA_0_1:
see p.10,12,14,16)
(SATA3_M0_M1:
see p.10,12,14,16)
Serial ATA2 Connectors
(SATA_2_3:
see p.10,12,14,16)
(SATA_4_5:
see p.10,12,14,16)
2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT
place jumper caps over these headers and connectors. Plac-
ing jumper caps over the headers and connectors will cause
permanent damage to the motherboard!
These four Serial ATA2
(SATA2) connectors sup-
port SATA data cables for
internal storage devices.
The current SATA2 interface
allows up to 3.0 Gb/s data
transfer rate.
These four Serial ATA3
(SATA3) connectors sup-
port SATA data cables for
internal storage devices.
The current SATA3 interface
allows up to 6.0 Gb/s data
transfer rate.
SATA_3SATA_5
SATA_2
SATA_4
SATA_1SATA3_M1
SATA_0
SATA3_M0
Either end of the SATA data
cable can be connected to
SATA / SATA2 / SATA3 hard
disks or the SATA2 / SATA3
connectors on this mother-
board.
