Cooling only • R-22 • UAT-AMY1
1
10
Rooftops • Cooling only
29

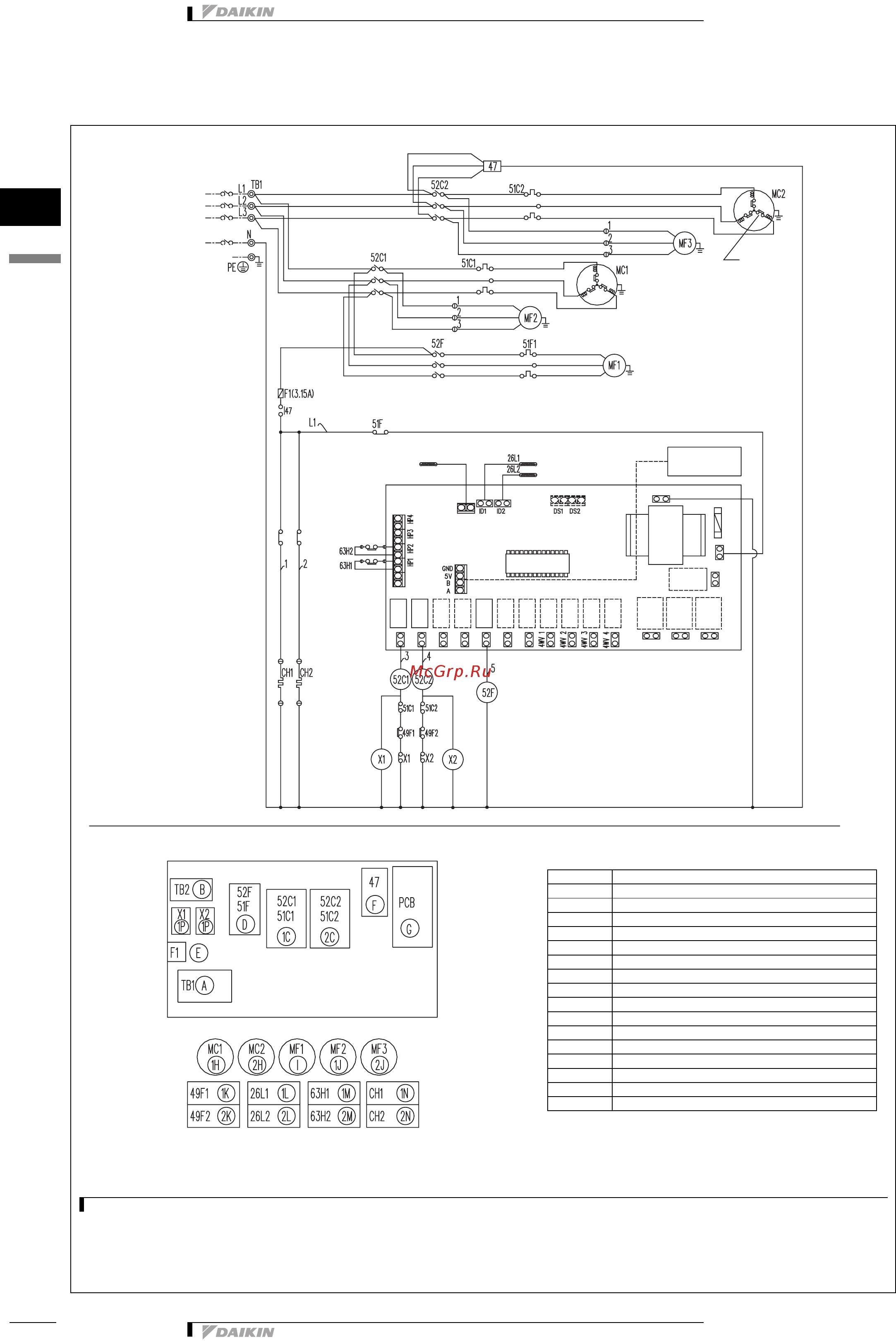

10 Wiring diagram
10 - 1 Wiring diagram
UAT450/560AY1
Caution,
1. To protect each Fan motor and compressor from abnormal current, Over current relays <51C>, <51F> are installed. Therefore, do not
change factory set value of Over current relays.
N
OTES
1 The dotted lines show field wiring.
2 The figure in the parenthesis shows field supply parts.
3 Color of earth is yellow and green twisting.
Power Supply
380~415VAC
3N~PE
50Hz
LCD REMOTE
CONTROL
TRANSFORMER
BLACK
INTERNAL
PROTECTOR
SYMBOL NAME
MC Compressor motor
MF1 Fan motor (indoor)
MF2,3 Fan motor (outdoor)
52C1,2 Contactor (Compressor)
52F Contactor (fan I/D)
TB1,2 Terminal block
F1 Fuse (3.15A)
51C1,C2 Over current relay (fan I/D)
51F1 Over current relay (fan I/D)
CH1,2 Crankcase heater
26L1,2 Sensor (freeze protection)
PCB Printed circuit board
47 Phase Protector
49F1,2 Internal protector (OD fan)
63H1,H2 High Pressure Switch
X1,2 Auxiliary Relay (Self Hold)
BLACK
RED
RED
WHITE
WHITE
BLACK
WHITE
RED
RETURN AIR SENSOR
CIRCUIT BREAKER
(FIELD SUPPLY)
UAT450/560AY1
BLUE
RED
RED
WHITE
BLACK
Arrangement
BLUE
RED
WHITE
BLACK
NEUTRAL
OUT FAN 4
LIVE
COMP 1
COMP 2
COMP 3
COMP 4
HEATER2
HEATER1
IN FAN
OUT FAN 1
OUT FAN 2
OUT FAN 3
RED
RED
WHITE
WHITE
BLACK
BLACK
ONN/OFF
RED
WHITE
BLACK
52
52
C2
C2
RED
