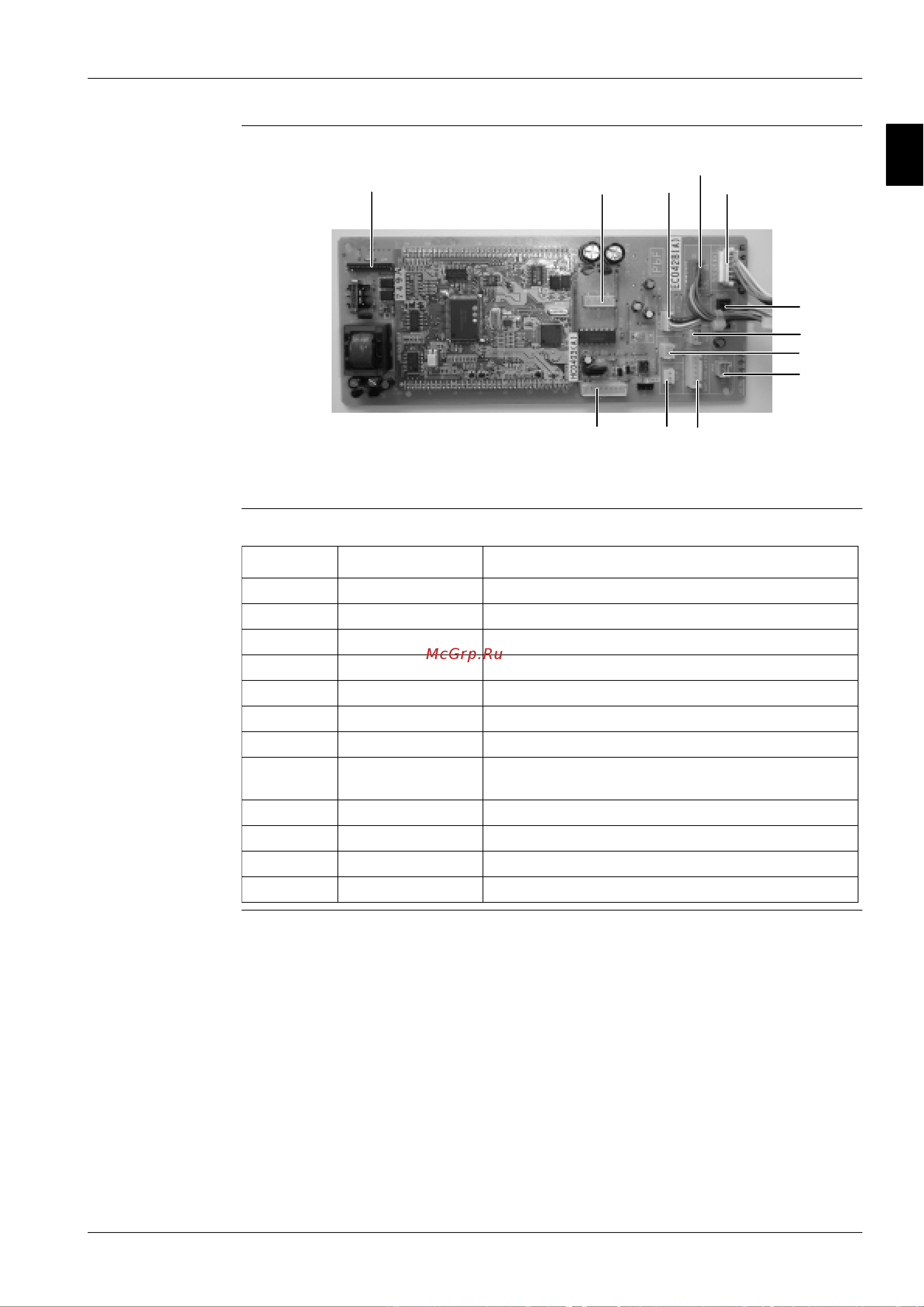

ESIEN05-04 PCB Layout
Part 1 – System Outline 1–111
3
1
4
5
PCB2 - Control PCB The illustration below shows the PCB2 connectors.
Connectors The table below describes the PCB connectors.
X40A
X18A
X57A
X16A
X36A
X30A
X24A
X15A
X33A
X6A
X35A
X58A
Connector Connected to Description
X6A _ Not used
X15A S1L Float switch
X16A A3P Humidity sensor
X18A R2T Coil thermistor
X24A X2A on A4P X24A is connected when the infrared remote control used
X30A X1M Terminal strip for P1/P2 and F1/F2
X33A X1A on KRP1B Connector for wiring adapter KRP1B
X35A X1A on KRP4 Connector to group control adapter power supply (16VDC)
for optional PCB KRP4
X36A M1S Swing flap motor
X40A _ Not used
X57A X54A/X55A (on A1P) PCB interconnection wiring
X58A X56A (on A1P) PCB interconnection wiring
