ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–35
3
5
1
5

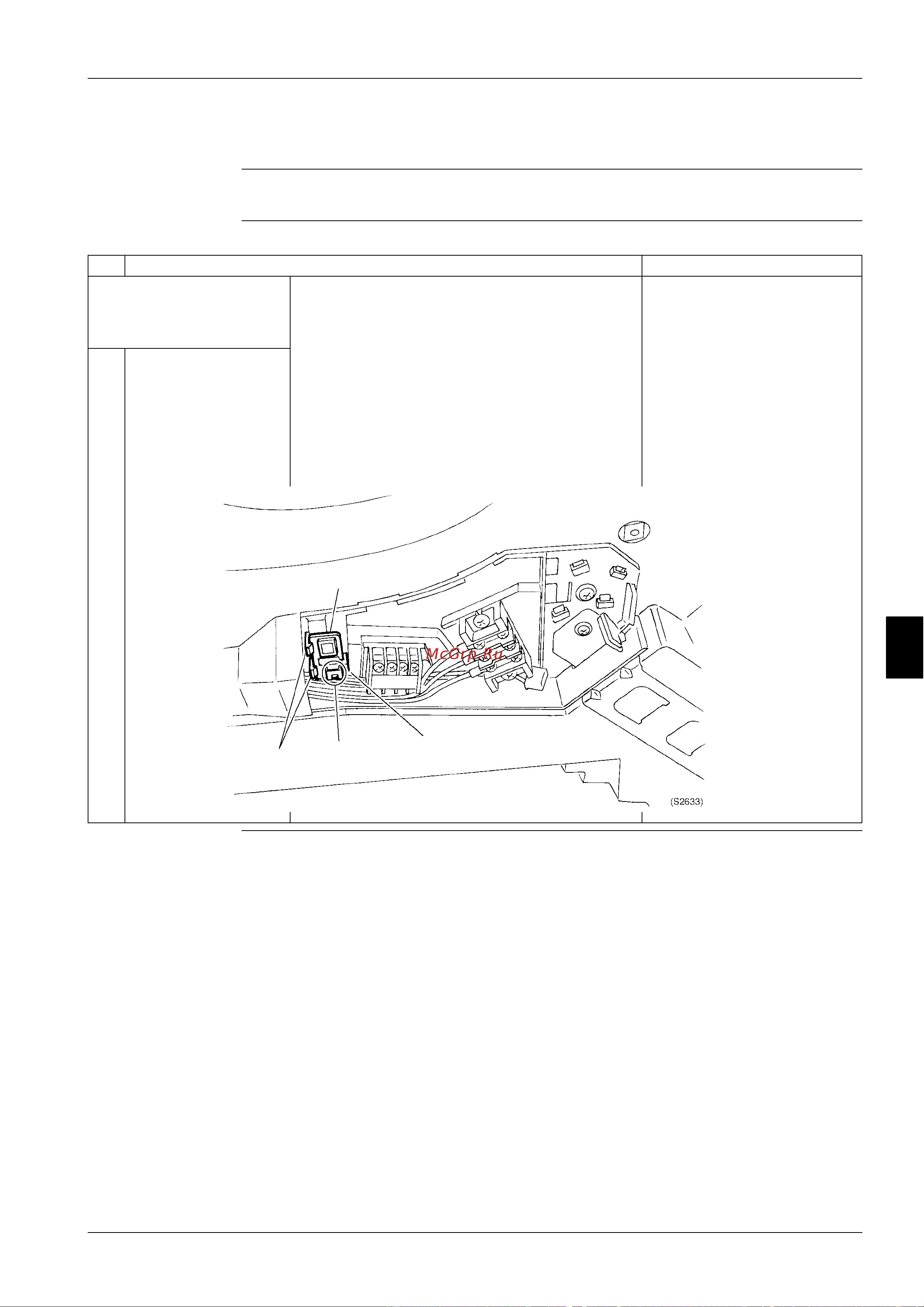

1.11.8 Removal of Humidity Sensor and Air Temperature Thermistor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step
Procedure Points
Q Remove the terminal block
box cover according to the
procedure for removing the
switch box.
1
Disconnect the
connector for humidity
sensor.
Q The moisture sensor and air
temperature thermistor is
integrated.
2
Disengage the 3 tabs to
remove the humidity
sensor.
Humidity sensor
Tabs
Connector
Tab
