ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–55
3
5
1
5

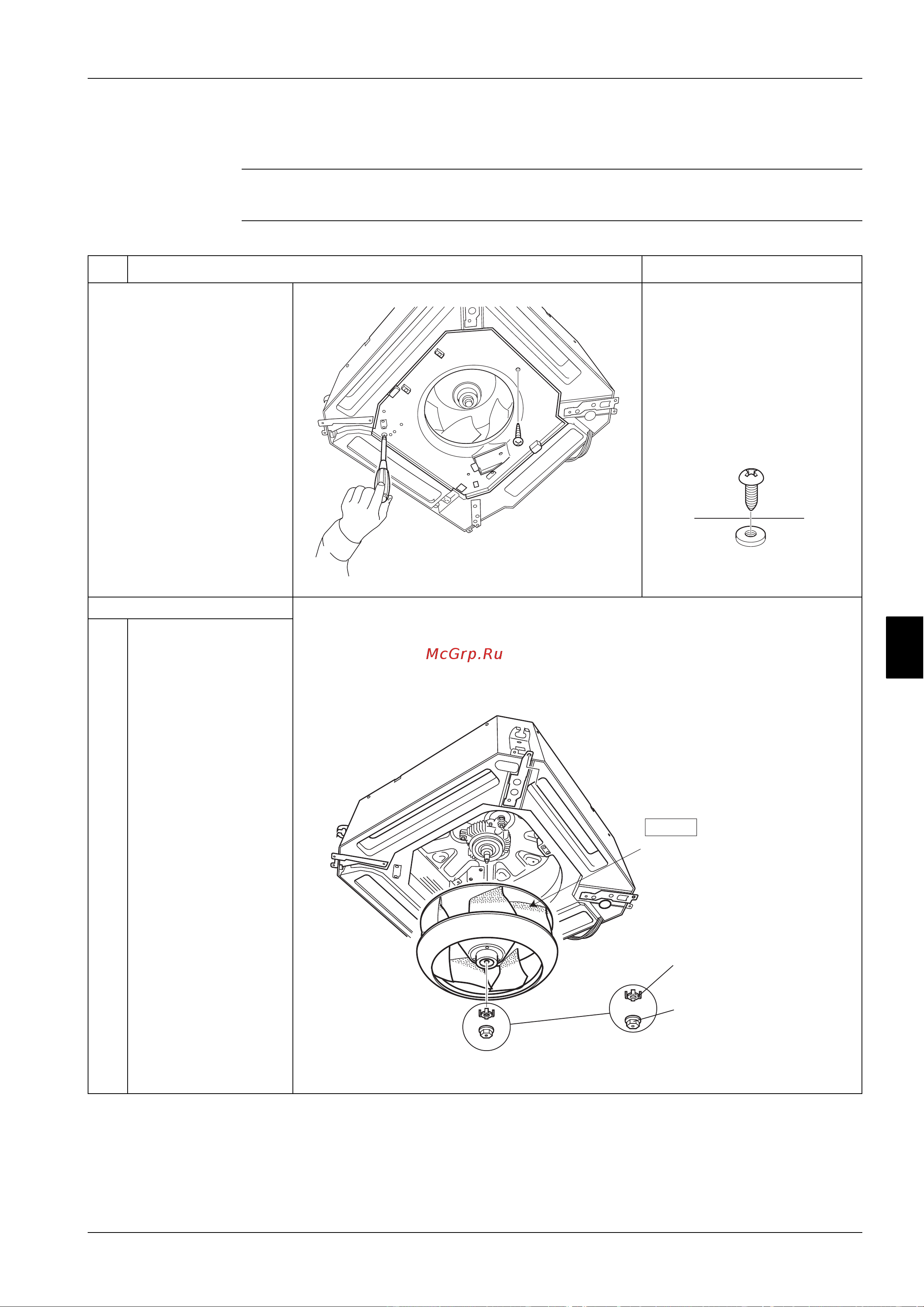

1.12.7 Removal of Fan Rotor and Fan Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Remove the switch box.
Q Remove the bell mouth
(Two screws)
Q A convex protrusion is
provided at the position of bell
mouth fixing screw to prevent
misjudgment with switch box
fixing position.
1 Removing the fan rotor
1 Remove the resin nut and
rotation stopper to
dismount the fan rotor.
Q For removal of switch box,
refer to the "Removal of Switch
Box" on page 5-53.
2 Remove the resin nut
with spanner.
3 Pull down the fan rotor
slowly.
(S2653)
(S2654)
(S2655)
Rotation
stopper
Resin nut
When tighten or loosen the fan
rotor fixing resin nut,
hold the base of the fan.
see detail below.
Caution
