Introduction ESIEN05-04
vi
3
1
4
5

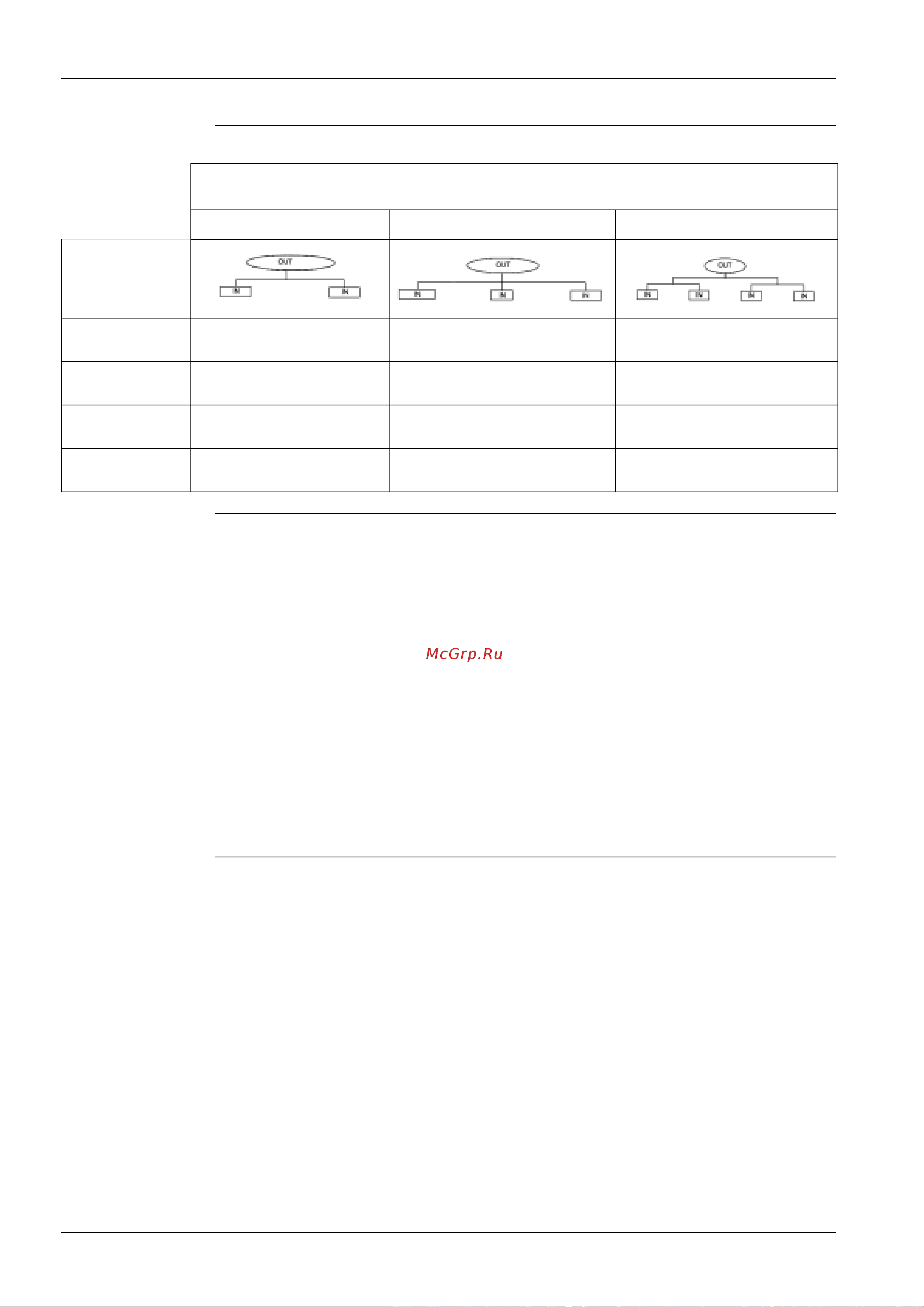

Combination matrix
Notes: 1 Possible indoor types:
Q FCQ35~71
Q FFQ35~60
Q FHQ35~71
Q FBQ35~71
Q FUQ71
Q FAQ71
2 Individual indoor capacities are not given because the combinations are for simultaneous
operation (=indoor units installed in same room).
3 When different indoor models are used in combination, designate the remote control that is
equipped with the most functions as the main unit. In note 1 are the indoor units mentioned in order
of the possible function (most functions are on FCQ, less functions are on FAQ)
4 Between brackets are the required Refnet kits mentioned, that are necessary to install the
combination
Possible indoor combination
(Standard capacity for twin, triple and double twin operation)
Twin Triple Double Twin
Outdoor
models
RZQ71B8V3B
35-35
(KHRQ22M20TA7)
RZQ100B8V3B
RZQ100B7W1B
50-50
(KHRQ22M20TA7)
35-35-35
(KHRQ127H7)
RZQ125B8V3B
RZQ125B7W1B
60-60
(KHRQ22M20TA7)
50-50-50
(KHRQ127H7)
35-35-35-35
(3x KHRQ22M20TA7)
RZQ140B7W1B
71-71
(KHRQ22M20TA7)
50-50-50
(KHRQ127H7)
35-35-35-35
(3x KHRQ22M20TA7)
