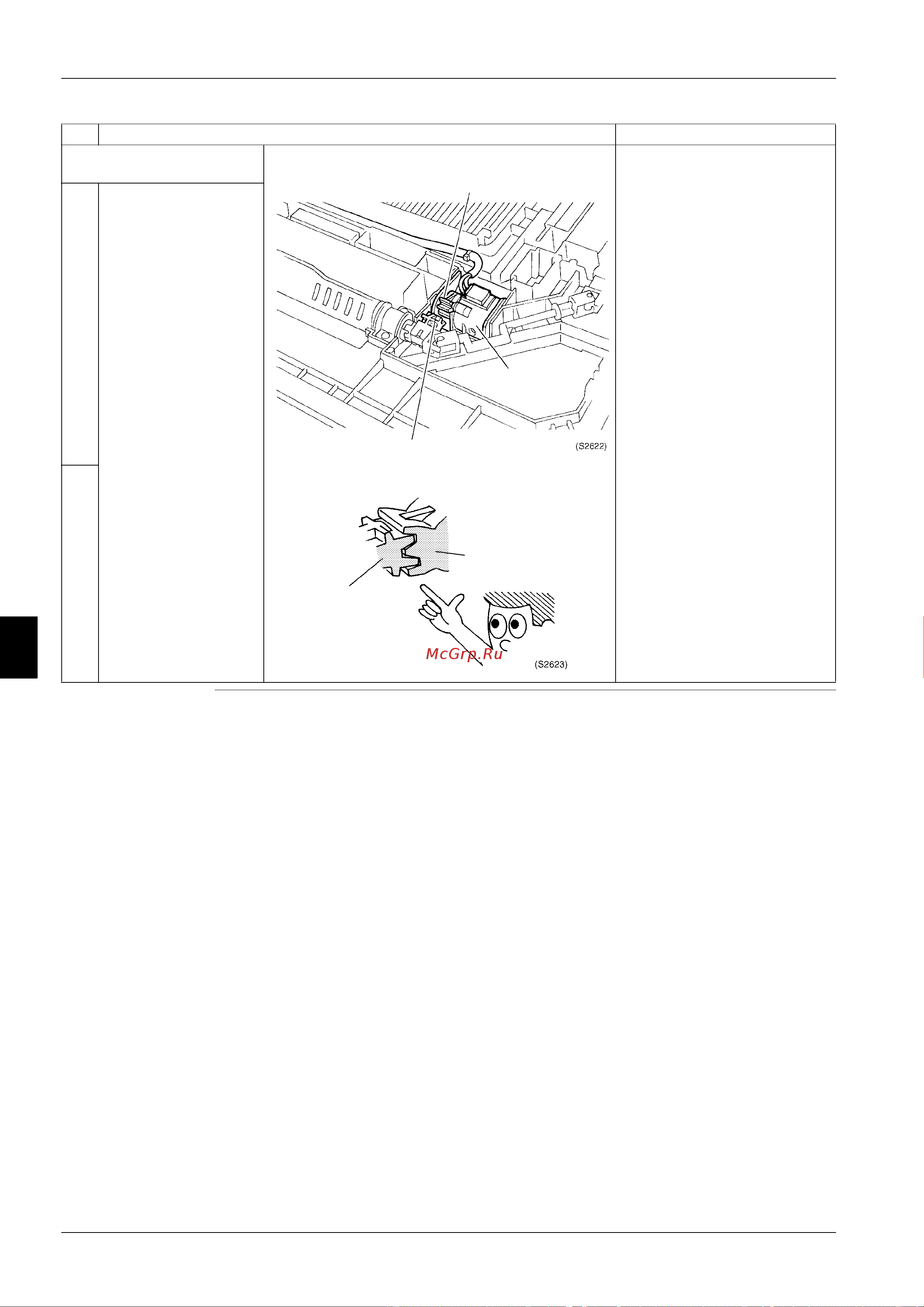

Disassembly and Maintenance ESIEN05-04
5–30 Part 5 – Disassembly and Maintenance
3
1
55
Q Caution during swing motor
installation
Q Protect the connector section
with using the aluminum tape.
1. After installing the
swing motor, be sure to
turn off the power
supply for reset (for
initializing the vane
positions).
2
Be sure to engage the
gears on the motor side
and panel side.
(Improper gear
engagement results in
faulty swing operation
and abnormal noise.)
Step
Procedure Points
Motor-side gear
Swing motor
Panel-side gear
Motor-side gear
Panel-side gear
