4.2 Connection to mains power

The unit can operate with voltage from 100 to 277Vac and with frequency of 50 and 60Hz.

For the connection use main cable in the side of the rear boxl of the fixture and connect as shown below.

4.3 Connection to DMX signal

The DMX signal is to be connected by using a shielded cable designed for devices RS-485.

The signal cable must be connected according to the following table:

GND = Shield

DATA - = Black

DATA + = Red

The projector is fitted with butt connectors and heat shrink tube which allow to perform IP67 connections.

To make the connection follow these instructions.

Warning!

• Before connecting the unit, verify that power supplies features are compatible with the unit features.

• The unit must never be installed if not grounded electrically.

• It is suggested to use a magnetothermic switch along the power supply line, as prescribed by in force rules.

• The unit must not be powered up through a dimmer power device.

• Wiring and connection actions are to be performed by a qualified staff.

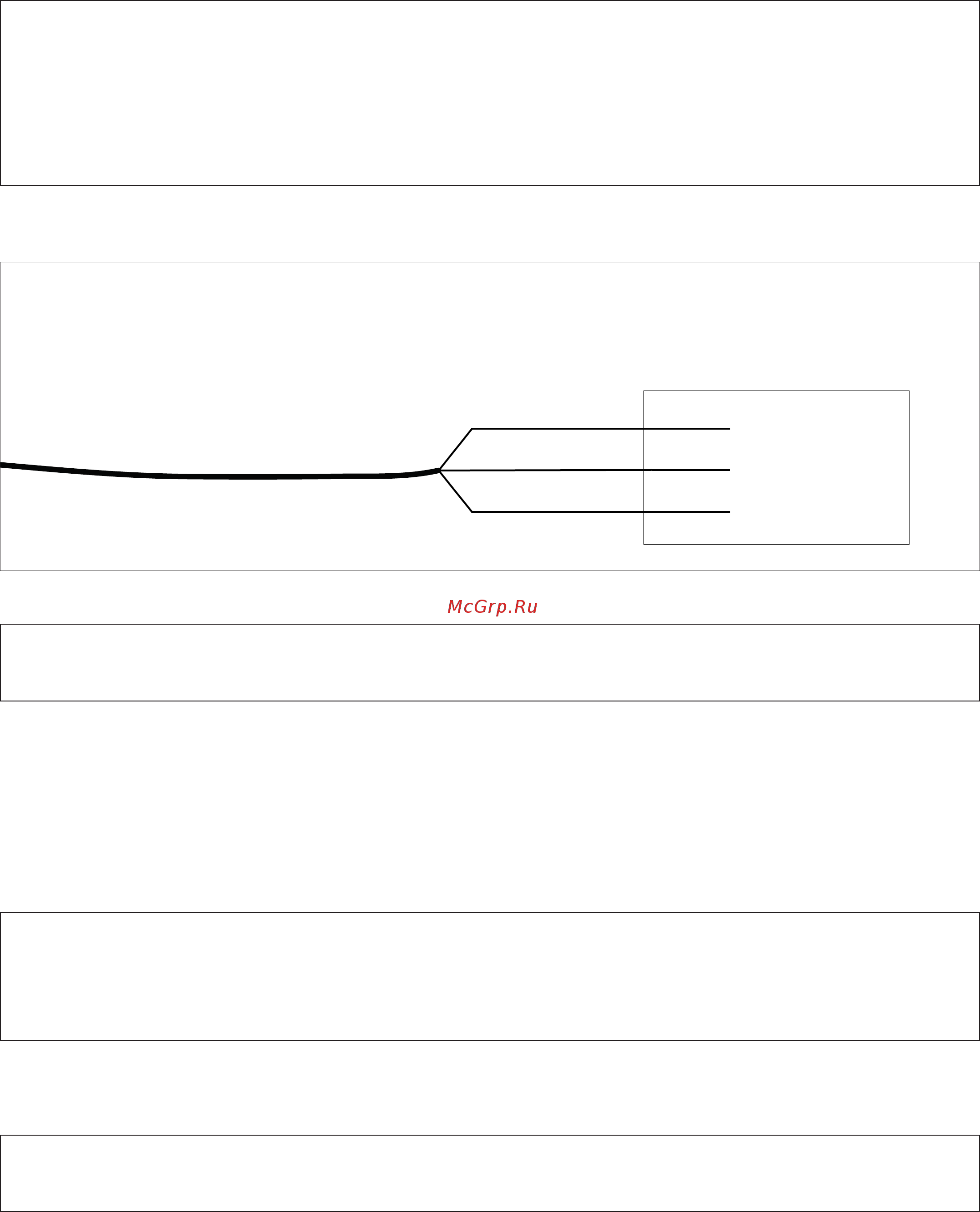

Live

Ground

Neutral

Brown

Yellow Green

Blue

Main supply

Warning!

Follow the instructions provided along with the connection kit to perform the connections.

Warning!

All data wires must be isolated one from another and from the shield.

The GND of the DMX signal is not to be connected to the electric ground of the unit.

Insert a terminal plug with a 120 Ω resistor connected to DATA- and DATA+ in the last unit.

Warning!

Follow the instructions provided along with the connection kit to perform the connections.

English 21
