English 6
CAUTION
• Install the indoor and outdoor units, power supply wiring, remote controller wiring and transmission wiring
at least 1 meter away from televisions or radios to prevent image interference or noise.
(Depending on the radio waves, a distance of 1 meter may not be sufficient to eliminate the noise.)
• Install the indoor unit as far as possible from fluorescent lamps.
If a wireless remote controller kit is installed, the transmission distance may be shorter in a room where an
electronic lighting type (inverter or rapid start type) fluorescent lamp is installed.
(2) Ceiling height
• This indoor unit can be installed in a space of which ceiling height is up to 3.5m
• However, in case of 20-63 type, if the ceiling height exceeds 2.7m, it is necessary to set from the remote
controller on site. Refer to the section “10. FIELD SETTING AND TEST OPERATION”.
(3) Use hanging bolts for installation.
Investigate if the installation place can withstand the mass of the indoor unit and, if necessary, hang the
indoor unit with bolts after it is reinforced by beams etc.
(Refer to the installation pattern paper (5) for the mounting pitch.)
1500 or
more
1500 or
more
100 or
more
100 or
more
355 or
more
1000 or more
from the furniture
Floor level
2500 or more
from the floor level

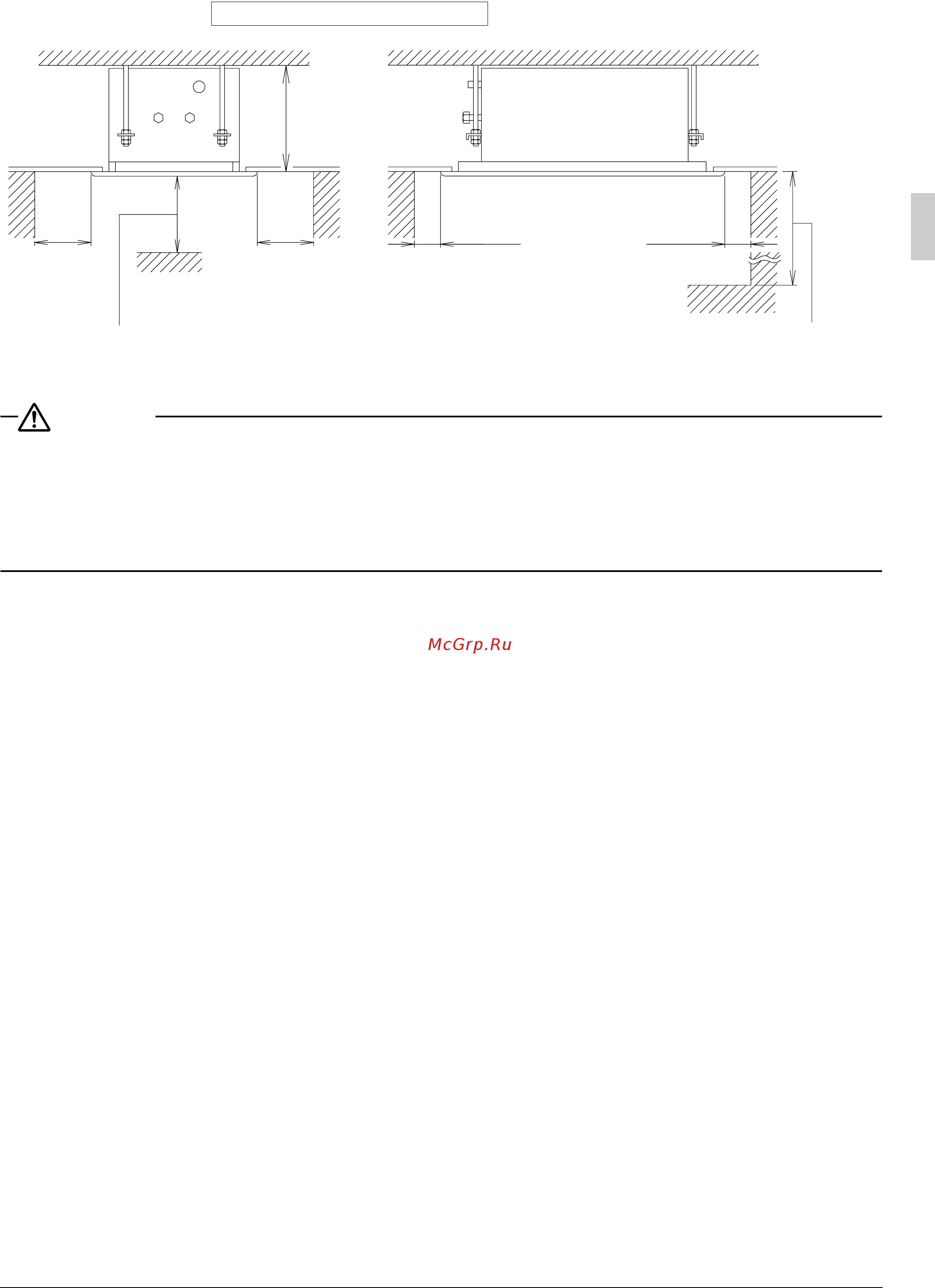

Required installation space (mm)
Fig. 1
01_EN_3P249378-7M.fm Page 6 Wednesday, September 12, 2012 1:05 PM
